Alpaca Wool Camel Hair Sourced Cashmere Carding Machine Coarse Hair Dehairing

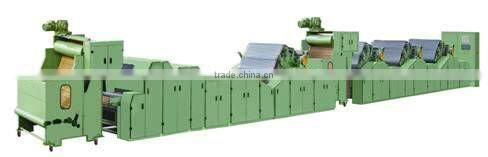

 1m/ 1.5m WIDTH CASHMERE CARDING COMBINATION MACHINE

Flow

FB002-15 Feeding Bucket→FB101-15 Opener →  FB102-15 Opener →  FB111-15 Parallel Card →  FB200-15b1-b4 Cashmere Carding machine

A. Save Energy, High Efficiency

• The weight of cylinder/doffer decreases after changing into steel plate welding structure, the power rate remains the same.
• Both cylinder and doffer are driven by main motor, cut down one doffer motor, the power rate of main motor remains the same.
• The main installment power rate decreases and machine-hour production increases for the whole combination machine.
• Labor saving about 50%
• Production increase 100%
• Extration efficiency reached to 95% above.
• Saving 40% energy.
• The production of combination machine doubled with no power rate increased, which improve the production efficiency.
• 4.5-7.5Kg/h(1.5m width line)

B. Precise Manufacturing Skills

• The barrel of cylinder/doffer applies the steel plate welding structure.
• The round wallbord applies the labber-shaped section aemi-curved structure.
• It's curved-sealed between end face of cylinder and roud wallboard.
• The doffer wallboard rigidity is increased, wall of card frame thicker and increase the height of bar.
• Front and rear waling applies steel plate welding structure, combined with frame to become boat-like frame.
• All the motors install directly on frame to stabilize the driving.

C.Perfect Technology

• The technology parameter need to be adjusted all design into frenquency conversion.
• Blowing flow:thin feeding, small grabbing, big separation, slow speed, slow opening and carding.
• Carding flow:4-6 sets of carding machine connected, with specialized metallic wires mounted.
• Using mote knife, flats, front web cleaner and dust filter to gradually ease short fober, coarse wool.
