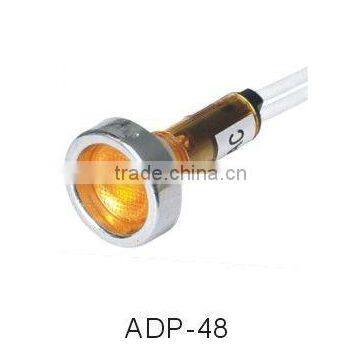

signal light indicator lamp water heater pilot light

Specifications

1.Pressure:2.5KV,1min

2.Top protection class IP65,special order IP67

3.Frequency:50-60Hz

4.Insutate resistance ≥ 2MΩ

5.AC indicative light voltage±20%

6.Endurance ≥ 30000h

7.Brightness ≥ 60cd/m2

8.Leakage index:CTI  ≥  100

9.Our product quality certification system strictly through the various certification.If you have any requirement,pls feel free contact us.

10.Technical specifications and order instructions of neon indicators:
Maximum striking voltages for light sources neon lamps
Standard brightness types 65Vac 90Vdc
High brightness types 85Vac 135Vdc

 11.Life for light sources neon lamps:
Typically 25000hrs(green lamp 15000hrs),(measured to a point when light output is a point when light output is a harf of that of its original level),the end of life is not usually a sudden failure.

12.Order instruction:
For orders,pls indicate:Type reference,maximum temperature of use or its key,voltage,color of lens and lamps,connection means(tabs6.3*0.8 or 4.8*0.8;cable pvc or silicone,cable length).
If not existing type,we can make according to your samples and technical drawing by opening toolings.

13.If you require special plastic parts,current,voltage,you can inform us,we can design it according to your requirments.
