Home > Products > MPX 310AC (X2) > UL CUL VDE ENEC Approval Interference Suppression Class X2 1mf 222k 105k Capacitor

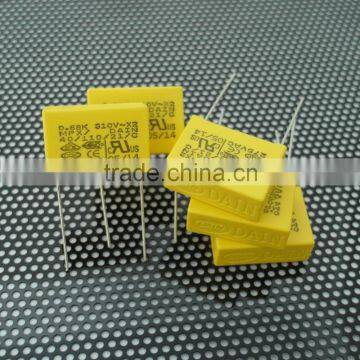

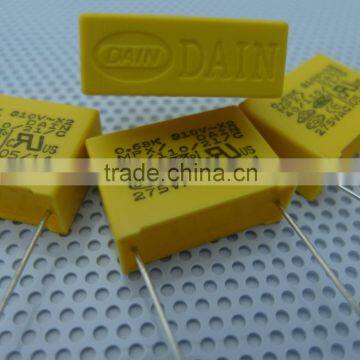

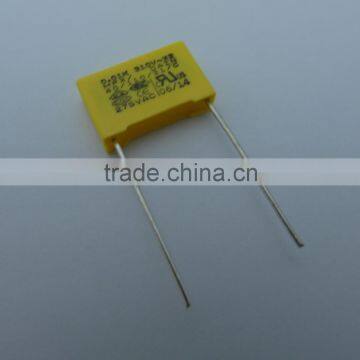

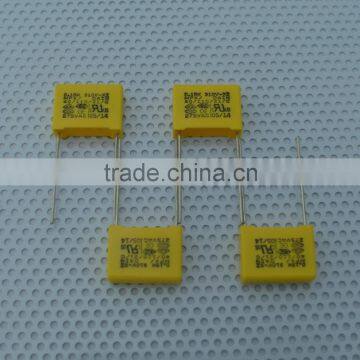

UL CUL VDE ENEC Approval Interference Suppression Class X2 1mf 222k 105k Capacitor
- Taichung Kaohsiung Keelung
- T/T L/C D/P D/A
You May Like
-
Metallized Polypropylene Film Intereference Suppression Class X2 Used on Covert and Motor Drives 275 ac Capacitor
-
x2 0.68 uF Arcotronic Capacitor
-
Pitch 15mm 0.33uF 275v Mkp x2 Capacitor
-
0.47uf Filter Lighting X2 Mex Capacitor
-
0.33uf 2.2uf 1.5uf Metallized Polypropylene Film Capacitor 225k 155k 250v and Film Capacitor 334k
-
Typical Application Antenna Coupling and Line by Pass Components Interference Suppression Capacitors
Product Details
| Place of Origin | Taiwan, China | Brand Name | DAIN | |
| Model Number | MPX | Type | Polypropylene Film Capacitor | |
| Application | Hight Voltage | Package Type | Other, box | |
| Capacitance | 0.001μF ~ 1.0μF | Rated Voltage | 250 VAC, 275 VAC, 310VAC | |
| Operating Temperature | -40~+110℃ |
Product Description
UL cUL VDE ENEC approval Interference suppression class X2 1mf 222k 105k capacitor
Super high quality and Hot selling cbb61 450vac 300vac fan capacitlypropylene Film, Class X2 capacitor, molded box construction suppression capacitor, rad
Features
l UL, cUL,VDE, ENEC, CQC, CE APPROVALS
l NON-INDUCTIVE & SELF-HEALING CONTRUCTION
l RoHS COMPLIANT & Pb-FREE FINISH
l MOLDED PLASTIC CASE & EPOXY RESIN MEETS UL-94-0 FLAMMABILITY TEST
Typical application
l Fixed capacitors for use in electronics equipment-component,
l Across-the-line, Antenna-coupling, Line-by-pass,
l Interference suppression, Connection to the supply mains
l EMI filter and spark killer circuits
Electrical Characteristics
Dielectric: Polypropylene film
Electrodes: Metallized film
Capacitance Tolerance: J (±5%), K (±10%), M (±20%)
Range Capacitance: 0.001μF ~ 1μF
Dissipation Factor: 0.01% Max. at 1 KHz and 25℃
Insulation Resistance:15000MΩ (Min.) for C ≤ 0.33μF > 5000MΩ for C > 0.33μF
Rated Voltage: 250 VAC for UL, cUL
275 VAC for UL, cUL, VDE, CQC, CE, ENEC,
310VAC for UL,cUL
Operating Temperature: -40~+110℃
International Technical standard:
In accordance with IEC60384-14(ed.3) DIN EN60384-14(VDE 0565 Teil 1-1):2006-04; EN132400 & UL1414 UL1283 Jun 19, 2003- UL60384-14 (Passive flammability category B)& GLF/C.(C: passive flammability category C) UL(B: passive flammability category B) Minimum Limit Temperature: G = -40℃ Maximum Limit Temperature: L= +110℃
