Home > Products > MPX 310AC (X2) > Interference Suppression Class X2 for Washing Machine Capacitor Prices
Interference Suppression Class X2 for Washing Machine Capacitor Prices
- Taichung Kaohsiung Keelung
- T/T L/C D/P D/A
You May Like
-
Metallized Polypropylene Film Price of Pitch 15 Capacitors 0.47uf x2 275v
-
Metallized Polypropylene Film Capacitor 0.1uf x2 275v
-
High Quality Taiwan Interference Suppression Safety x2 684k 275 Vac Capacitor
-
Interference Suppression x2 310 v Capacitor 470nf Capacitor x2 0.47 275vac
-
Interference Suppression x2 1uf Capacitor 250v 105k
-
UL CUL VDE ENEC Approval Interference Suppression Class X2 1mf 222k 105k Capacitor
Product Details
| Place of Origin | Taiwan, China | Brand Name | DAIN | |
| Model Number | MPX | Type | Polypropylene Film Capacitor | |
| Application | General Purpose | Package Type | Other, box | |
| Capacitance | 0.001μF ~ 1.0μF | Rated Voltage | 250 VAC, 275 VAC, 310VAC | |
| Operating Temperature | -40~+110℃ |
Product Description
Interference suppression class X2 for washing machine capacitor prices

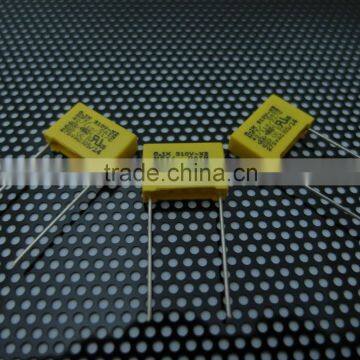

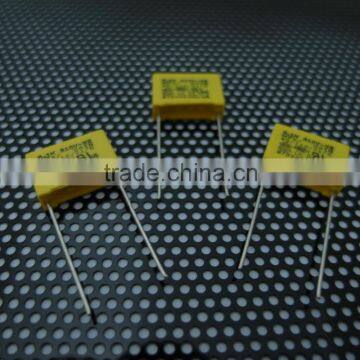

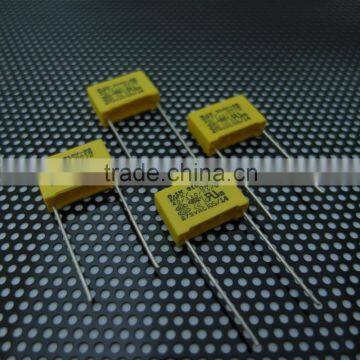

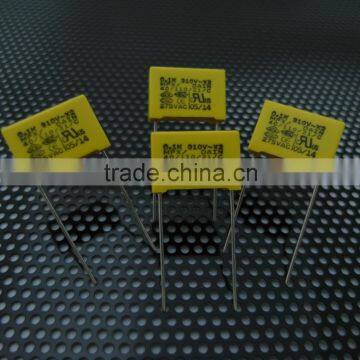

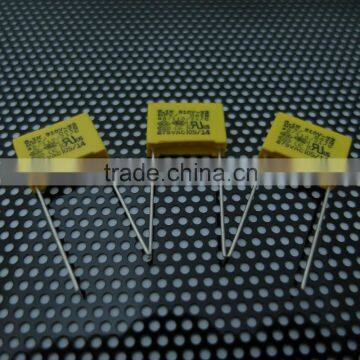

Metallized Polypropylene Film, Class X2 capacitor, molded box construction suppression capacitor, radial lead
Features
l UL, cUL,VDE, ENEC, CQC, CE APPROVALS
l NON-INDUCTIVE & SELF-HEALING CONTRUCTION
l RoHS COMPLIANT & Pb-FREE FINISH
l MOLDED PLASTIC CASE & EPOXY RESIN MEETS UL-94-0 FLAMMABILITY TEST
Typical application
l Fixed capacitors for use in electronics equipment-component,
l Across-the-line, Antenna-coupling, Line-by-pass,
l Interference suppression, Connection to the supply mains
l EMI filter and spark killer circuits
Electrical Characteristics
Dielectric: Polypropylene film
Electrodes: Metallized film
Capacitance Tolerance: J (±5%), K (±10%), M (±20%)
Range Capacitance: 0.001μF~ 1μF
Dissipation Factor: 0.01% Max. at 1 KHz and 25℃
Insulation Resistance:15000MΩ (Min.) for C ≤ 0.33μF > 5000MΩ for C > 0.33μF
Rated Voltage: 250 VAC for UL,cUL
275 VAC for UL,cUL, VDE, CQC, CE, ENEC,
310 VAC for UL,cUL
Operating Temperature: -40~+110℃
International Technical standard:
In accordance with IEC60384-14(ed.3) DIN EN60384-14(VDE 0565 Teil 1-1):2006-04; EN132400 & UL1414 UL1283 Jun 19, 2003- UL60384-14 (Passive flammability category B)& GLF/C.(C: passive flammability category C) UL(B: passive flammability category B) Minimum Limit Temperature: G = -40℃ Maximum Limit Temperature: L= +110℃
