Product Description

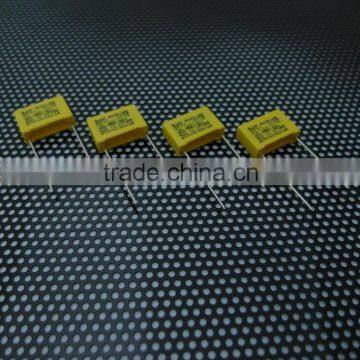

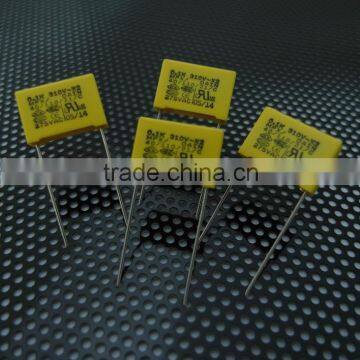

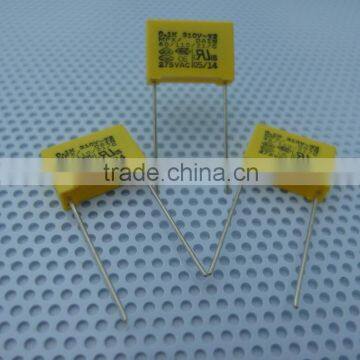

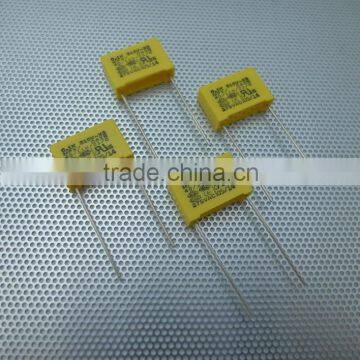

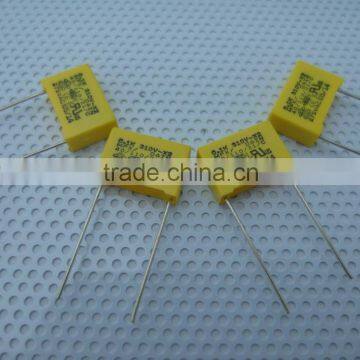

X2 capacitor 275ac 310 vac capacitor metalized mkp split ac capacitor
Metallized Polypropylene Film, Class X2 capacitor, molded box construction suppression capacitor, radial lead
Features
l UL, cUL,VDE, ENEC, CQC, CE APPROVALS
l NON-INDUCTIVE & SELF-HEALING CONTRUCTION
l RoHS COMPLIANT & Pb-FREE FINISH
l MOLDED PLASTIC CASE & EPOXY RESIN MEETS UL-94-0 FLAMMABILITY TEST
Typical application
l Fixed capacitors for use in electronics equipment-component,
l Across-the-line, Antenna-coupling, Line-by-pass,
l Interference suppression, Connection to the supply mains
l EMI filter and spark killer circuits
Electrical Characteristics
Dielectric: Polypropylene film
Electrodes: Metallized film
Capacitance Tolerance: J (±5%), K (±10%), M (±20%)
Range Capacitance: 0.001μF~ 1μF
Dissipation Factor: 0.01% Max. at 1 KHz and 25℃
Insulation Resistance:15000MΩ (Min.) for C ≤ 0.33μF > 5000MΩ for C > 0.33μF
Rated Voltage: 250 VAC for UL,cUL
275 VAC for UL,cUL, VDE, CQC, CE, ENEC,
310 VAC for UL,cUL
Operating Temperature: -40~+110℃
International Technical standard:
In accordance with IEC60384-14(ed.3) DIN EN60384-14(VDE 0565 Teil 1-1):2006-04; EN132400 & UL1414 UL1283 Jun 19, 2003- UL60384-14 (Passive flammability category B)& GLF/C.(C: passive flammability category C) UL(B: passive flammability category B) Minimum Limit Temperature: G = -40℃ Maximum Limit Temperature: L= +110℃
CODE | MFD | PART NO | 250/275VAC/310VAC | SPQ (PCS) | ||||
L±1.0 | H±1.0 | T±1.0 | P±0.5 | d±0.08 | ||||
102- 103 | 0.001- 0.01 | MPX102K310ACC2 | 13 | 11 | 5 | 10 | 0.6 | 500 |
103 | 0.01 | MPX103K310ACD1 | 18 | 11 | 5 | 15 | 0.8 | 500 |
123 | 0.012 | MPX123KC310ACD1 | 18 | 11 | 5 | 15 | 0.8 | 500 |
153 | 0.015 | MPX153K310ACD1 | 18 | 11 | 5 | 15 | 0.8 | 500 |
183 | 0.018 | MPX183K310ACD1 | 18 | 11 | 5 | 15 | 0.8 | 500 |
223 | 0.022 | MPX223K310ACC2 | 13 | 11 | 5 | 10 | 0.6 | 500 |
223 | 0.022 | MPX223K310ACD1 | 18 | 11 | 5 | 15 | 0.8 | 500 |
273 | 0.027 | MPX273K310ACC2 | 13 | 11 | 5 | 10 | 0.6 | 500 |
273 | 0.027 | MPX273K310ACD1 | 18 | 11 | 5 | 15 | 0.8 | 500 |
333 | 0.033 | MPX333K310ACC2 | 13 | 11 | 5 | 10 | 0.6 | 500 |
333 | 0.033 | MPX333K310ACD1 | 18 | 11 | 5 | 15 | 0.8 | 500 |
393 | 0.039 | MPX393K310ACD1 | 18 | 11 | 5 | 15 | 0.8 | 500 |
473 | 0.047 | MPX473K310ACC2 | 13 | 11 | 5 | 10 | 0.6 | 500 |
473 | 0.047 | MPX473K310ACD1 | 18 | 11 | 5 | 15 | 0.8 | 500 |
563 | 0.056 | MPX563K310ACC2 | 13 | 11 | 5 | 10 | 0.6 | 500 |
563 | 0.056 | MPX563K310ACD1 | 18 | 11 | 5 | 15 | 0.8 | 500 |
683 | 0.068 | MPX683K310ACC2 | 13 | 11 | 5 | 10 | 0.6 | 500 |
683 | 0.068 | MPX683K310ACD1 | 18 | 11 | 5 | 15 | 0.8 | 500 |
823 | 0.082 | MPX823K310ACC3 | 13 | 12 | 6 | 10 | 0.6 | 500 |
823 | 0.082 | MPX823K310ACD2 | 18 | 12 | 6 | 15 | 0.8 | 500 |
104 | 0.1 | MPX104K310ACC3 | 13 | 12 | 6 | 10 | 0.6 | 500 |
104 | 0.1 | MPX104K310ACPD1 | 18 | 11 | 5 | 15 | 0.6 | 500 |
104 | 0.1 | MPX104K310ACD2 | 18 | 12 | 6 | 15 | 0.8 | 500 |
124 | 0.12 | MPX124K310ACD2 | 18 | 12 | 6 | 15 | 0.8 | 500 |
154 | 0.15 | MPX154K310ACD25 | 18 | 13 | 6.2 | 15 | 0.8 | 500 |
154 | 0.15 | MPX154K310ACD4 | 18 | 14.5 | 8.5 | 15 | 0.8 | 250 |
184 | 0.18 | MPX184K310ACD4 | 18 | 14.5 | 8.5 | 15 | 0.8 | 250 |
224 | 0.22 | MPX224K310ACD4 | 18 | 14.5 | 8.5 | 15 | 0.8 | 250 |
224 | 0.22 | MPX224K310ACD25 | 18 | 13 | 6.2 | 15 | 0.8 | 500 |
224 | 0.22 | MPX224K310ACE2 | 26.5 | 16.5 | 7 | 22.5 | 0.8 | 250 |
274 | 0.27 | MPX274K310ACE3 | 26.5 | 17 | 8.5 | 22.5 | 0.8 | 200 |
334 | 0.33 | MPX334K310ACD5 | 18 | 16 | 10 | 15 | 0.8 | 250 |
334 | 0.33 | MPX334K310ACE3 | 26.5 | 17 | 8.5 | 22.5 | 0.8 | 200 |
394 | 0.39 | MPX394K310ACE4 | 26.5 | 19 | 10 | 22.5 | 0.8 | 150 |
474 | 0.47 | MPX474K310ACD5 | 18 | 16 | 10 | 15 | 0.8 | 250 |
474 | 0.47 | MPX474K310ACE3 | 26.5 | 17 | 8.5 | 22.5 | 0.8 | 200 |
474 | 0.47 | MPX474K310ACE4 | 26.5 | 19 | 10 | 22.5 | 0.8 | 150 |
474 | 0.47 | MPX474K310ACF1 | 32 | 20 | 11 | 27.5 | 0.8 | 100 |
564 | 0.56 | MPX564K310ACF1 | 32 | 20 | 11 | 27.5 | 0.8 | 100 |
684 | 0.68 | MPX684K310ACD6 | 18 | 18.5 | 11 | 15 | 0.8 |
|
684 | 0.68 | MPX684K310ACE4 | 26.5 | 19 | 10 | 22.5 | 0.8 | 150 |
684 | 0.68 | MPX684K310ACF1 | 32 | 20 | 11 | 27.5 | 0.8 | 100 |
824 | 0.82 | MPX824K310ACD6 | 18 | 18.5 | 11 | 15 | 0.8 | 250 |
824 | 0.82 | MPX824K310ACF2 | 32 | 22 | 13 | 27.5 | 0.8 | 100 |
824 | 0.82 | MPX824K310ACE6 | 26.5 | 21.5 | 12 | 22.5 | 0.8 | 100 |
105 | 1 | MPX105K310ACE6 | 26.5 | 21.5 | 12 | 22.5 | 0.8 | 100 |
105 | 1 | MPX105K310ACF1 | 32 | 20 | 11 | 27.5 | 0.8 | 100 |
105 | 1 | MPX105K310ACF2 | 32 | 22 | 13 | 27.5 | 0.8 | 100 |
