Home > Products > AC Motor capacitor (CBB61) > Metallized Polypropylene Film Cbb61 3uf Ceiling ac Fan Wiring Capacitor

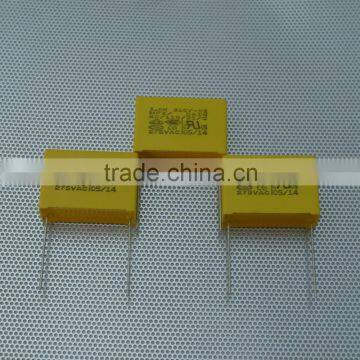

Metallized Polypropylene Film Cbb61 3uf Ceiling ac Fan Wiring Capacitor
- Taichung Kaohsiung Keelung
- T/T L/C D/P D/A
You May Like
-
Metallized Polypropylene Film Cbb61ceiling Electric Fan Capacitor
-
Super High Quality CBB61 Metallized Polypropylene Film Fan Motor Run ac Capacitor
-
Cbb61 Series Metallized 50 60 hz sh ac Polypropylene Film Capacitor
-
Plastic Cbb61 Capacitor Company for Fan Capacitor Cbb61 Wiring Diagram
-
Cbb61 Terminal Tinned Lead Wire Insulated Felxible Lead Wire Capacitor 8uf 450vac -40/70/21
-
Metallized Polypropylene Film Cbb61 sh Ceiling Fan Capacitor 3uf 10uf 450vac
Product Details
| Place of Origin | Taiwan, China | Brand Name | Company Name: DAIN Electronics co., Ltd | |
| Model Number | CBB61 | Type | Polypropylene Film Capacitor | |
| Application | AC / Motor | Package Type | Through Hole | |
| Capacitance | 1uF ~ 10 uF | Rated Voltage | 250VAC,300VAC,350VAC,400VAC,450VAC | |
| Operating Temperature | - 40℃ ~ + 85℃ |
Product Description
Metallized polypropylene film cbb61 3uf ceiling ac fan wiring capacitor
1. Scope:
This specification applied to capacitor for type CBB61 Metallized Polypropylene FilmAC Motor running Capacitor.
2. Operation Temperature:
- 40℃ ~ +85℃
3. Capacitance Range:
1uF ~ 10 uF
4. Capacitance Tolerance:
±5%(J),±10%(K),±20%(M)
5. Rated Voltage:
250VAC,300VAC,350VAC,400VAC,450VAC
6,Rated Frequency:
50 ~ 60 Hz
7,Class of safetyprotection:
P0/S0
8,Class of operation:
C
9,Life expectancy:
3000 h
10,Type of termination
Wire termination,PVC single core cable,Flat quick connectors
11. Approvals File No
Related Standard | |
CQC | GB/T3667.1 - 2005 |
VDE | EN60252-1:2011 |
UL | UL810 |
13-1 tape:
Code | MCB |
Tape | CBB61 |
13-2 Capacitance:
Code | 105 | 505 | 805 | 106 |
Capacitance | 1uF | 5uF | 8uF | 10uF |
13-3Tolerance:
Code | J | K | M |
Tolerance | ±5% | ±10% | ±20% |
13-4 BOX TYPE:
13-5 A-AC
Code | TB39 | TB30 | TB20 | TB35 |
Size(mm) | 38(L)×26(H)×16(T) | 38(L)×28(H)×18(T) | 38(L)×30(H)×20(T) | 48(H)×30(H)×20(T) |
Code | TB31 | TB40 | TB9 | / |
Size(mm) | 48(L)×32(H)×22(T) | 48(H)×37(H)×26(T) | 58(H)×38(H)×26(T) | / |
13-6Lead forming:
Code | PVC Thread | CPThread | Terminal |
Lead Forming |
|
|
|
13-7Lead Pitch:Showing the capacitor lead pitch, For example:
Code | 30 | 38 | 40 | 50 |
Pitch(mm) | 30mm | 37.5mm | 40mm | 50mm |
13-8Lead length:Showing the capacitor lead Length, For example:
Code | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
Length(mm) | 30mm | 40mm | 50mm | 60mm | 70mm | 80mm | 90mm |
14. pecifications ( IEC60252-1&GB/T3667.1-2005)
No | Test items | Performance | Test Method |
14-1 | Withstand voltage (Between Terminals) | Shall be no abnormality | Rated Voltage×1.414×175% of 60 sec(VDC). |
Between terminal and Enclosure | Shall be no abnormality | UR×200%+1000VAC, For 60sec. | |
14-2 | Insulation resistance (Between Terminals) | IR≥3,000 MΩ÷(C)uF | Measured at 100±15VDC, For 60sec / 25℃ |
14-3 | Capacitance | Within the tolerance specified | 1KHz, 1Vrms Max. at 25℃ |
14-4 | Dissipation Factor | ≤0.002 (0.2%) | 1KHz, 1Vrms Max. at 25℃ |
◊ Dain Five Promises
A specialized manufacture of capacitor since 1989.
Over 26 years capacitors production experiences.
Reliable capacitor, reliable partner.
Looking for high quality supplier, come to Dain, don't hestiate to contact with us!
