Polystyrene Foam Sheet Extruding Machine
- QD-port
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | TIANHAI | Model Number | th-105/120 | |
| Voltage | 380V 50HZ 3 phase | Power(W) | 200KW | |
| Dimension(L*W*H) | 25X4.5X3.2 | Weight | 8T | |
| Certification | CE&ISO9001:2008 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.CE & ISO standard2.Packing Machinery
3. Best configuration
4.Auto Filter Exchanger

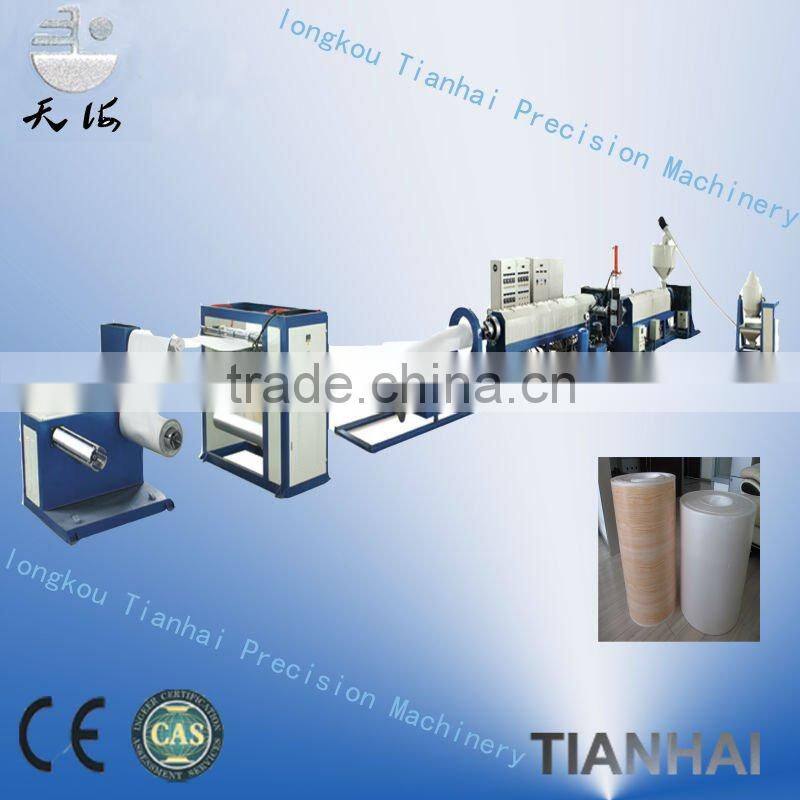

Polystyrene Foam Sheet Extruding Machine
Technics flow as below:
General Polystyrene Granule (GPPS) with additive are mixed in feeding system, then go into No.1 Extruder---Inject foaming agent--After filter changer, material go into N0.2 Extruder--Extruded from mold head --Cooling and Shaping--Hauling off--Winding --Finished Products—Packing.
Introduction:
1.It adopts Gentian type double-stage series high foam technology.
2.This equipment adopts high speed hydraulic filter changer, which has steady feature, can change the filter immediately without stopping the machine.
3.The foaming shaping machine adopts PLC control, touch screen operation, easily to operate.
4.The raw material is general polystyrene granule (GPPS).
5.In the extruding process, foam agent (such as butane gas or LPG) is injected at high pressure.
6.After extruding, foaming, cooling, shaping and hauling off, it is winding to finished ps foam sheet rolls.
7.After vacuum forming system, the finished PS foaming sheet can be made into variety of packaging vessels ,such as fast food box ,aquatic plate,supermarket tray ,cake tray , KT board ,instant noodle bowl ,foam tray etc.
8.It is widely used in the packing for food, fruit, and advertising industrial products, etc.
Technical data:
parameter |
Unit | Model | ||||
TH-70/90 | TH-80/100 | TH-105/120 | TH-110/130 | TH-135/150 | ||
Capacity | KG/H | 70-100 | 100-150 | 150-230 | 250-280 | 310-370 |
Sheet thickness | MM | 0.8-4 | 1-5 | 1-5 | 1-5 | 1-5 |
Sheet width | MM | 480-1080 | 480-1080 | 480-1350 | 800-1080 | 900-1100 |
Foaming rate |
| 10-22 | ||||
Cooling method |
| wind cooling & water cooling | ||||
Cutting method |
| Single and double cutting | Double cutting | |||
Butagas pressure | MPa | 1.5 | ||||
Installed power | KW | 120 | 150 | 200 | 220 | 320 |
Installation Dimension | M | 3×4×25 | 3×4×28 | 3×4.5×30 | 3×4.5×32 | 3×4.5×35 |
Power supply | 380V 50HZ 220V 60HZ 3 phase 380V 50HZ 3 phase 220V 60HZ | |||||
