EPS Foam Sheet Extruder TH105/120
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Application | Granules | |
| Plastic Processed | Polystyrene | Screw Design | Double-screw | |
| Place of Origin | Shandong, China | Brand Name | Tianhai | |
| Model Number | TH105/120 |
Product Description
Specifications
EPS Foam Sheet Extruder TH105/1201. make the PS foam sheet
2. With advanced patent technic to save po

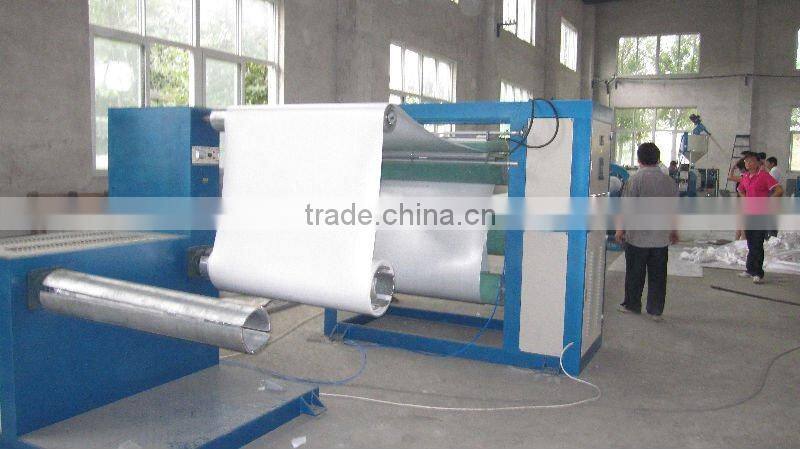

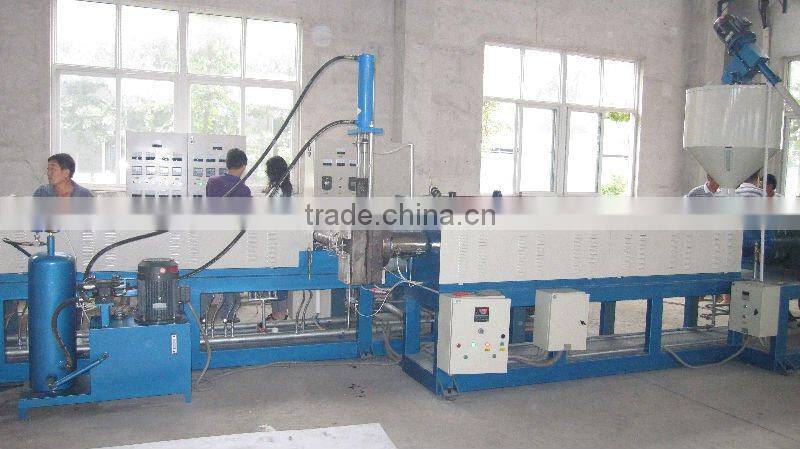

EPS Foam Sheet Extruder TH105/120
uses a double- screw technology to produce fine-blocked cell-structured extruded Polystyrene foam sheet with high strength and a pearly and even surface, in a continuous roll. In the extruding process, Butane or CNG for instead is injected at high pressure. After extruding , foaming, cooling, shaping and hauling off, it is winding to finished ps foam sheet rolls. It has a user-friendly operating system with Inverter controlled driving, Digital Temperature control and Hydraulic screen changer. The raw material is general polystyrene granule. The product is PS foam sheet, which is a new type material with the features of shock proof, sound insulation,heat preservation ,damproof,safety,sanitation and good plasticity.it is used widely in the packing of food, fruits, daily necessities and advertisement board,etc.
Technical data:
parameter |
Unit | Model | ||
TH-70/90 | TH-105/120 | TH-110/130 | ||
Capacity | KG/H | 70-100 | 150-230 | 250-280 |
Sheet thickness | MM | 0.8-4 | 1-5 | 1-5 |
Sheet width | MM | 480-1080 | 480-1080 | 800-1080 |
Foaming rate |
| 10-22 | ||
Cooling method |
| wind cooling & water cooling | ||
Cutting method |
| Single and double cutting Double cutting | ||
Butagas pressure | MPa | 1.5 | ||
Installed power | KW | 120 | 200 | 220 |
Installation Dimension | M | 3×4×25 | 3×4.5×30 | 3×4.5×32 |
Power supply | 380V 50HZ 220V 60HZ 3 phase 380V 50HZ 3 phase 220V 60HZ | |||
