Home > Products > AHD DVR > 2015 economic outdoor 4ch 720p h.264 dvr combo cctv camera kit, hd cctv camera system

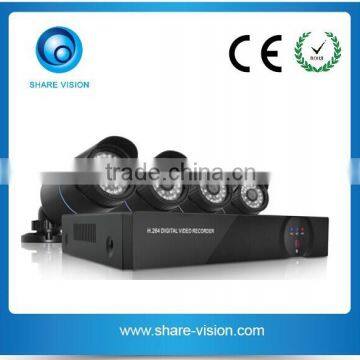

2015 economic outdoor 4ch 720p h.264 dvr combo cctv camera kit, hd cctv camera system

FOB Price

USD $100 - $115 / Piece

10 Pieces(Min.Order)

Supply Ability 5000 Unit / Units per Month
Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Share-vision
Model Number	XF-H8804LM KIT

Product Description

2015 economic outdoor 4ch 720p h.264 dvr combo cctv camera kit, hd cctv camera system

AHD DVR Features:

1.Support AHD-M Series front realtime encoding;

2.Support 4ch 720P realtime recording resolution, ahead to 720P High-Definition period.

3.Support 4CH 720P playback ,each channel can be enlarge to full screen

4.Support High-Definition VGA/HDMI output(VGA and BNC can work at the same time)

5.Support Multiple cloud technology,Implement network penetration, alarm information push to mobile phones, and so on;

6.Support various cellphone surveillance(iPhone, Android Windows Mobile, BlackBerry,Symbian,);

7.Supports multiple web browser access ;

8.Support more than 20 languages(English Finnish French German,Greek Italian Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkey, etc.), breaking national boundaries;

Perfect protection circuit, unique triple watchdog function;;

9.Supporting web, CMS, center platform management software XMEYE

AHD Camera Features:

1.AHD IR bullet Waterproof camera
2.Megapixel 720P High resolution
3.24pcs F5 LEDS,3.6mm fixed lens,ICR
4.25m IR distance

Product	Model No.	XF-H8804LM
Systems	Main Processor	Hi3520D
	Operating system	Embedded LINUX operating system
	System resource	Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
Interface	Operation interface	16bit real color GUI interface support mouse operation
Interface	Display screen	1/4/8/9 screen
Video	Video standard	PAL/NTSC(720P)
	Video Coding	H.264(High Profile), JPEG snapshot
	Resolution	VGA, HDMI (19201080, 1280720, 1440900, 12801024, 1024768, 800600)
	Playback quality	1080P/720P/D1/HD1/CIF
	Coding	4ch AHD-M
	Encoding	1ch AHD-M
	Multi-mode input	Analog: 4AHD-M / 4AHD-L Network: 4720P / 41080P / 8720P / 81080P / 11080P Mixed: 2AHD-M+2*720P
	Motion Detection	Each channel can set 192(16*12)detection area; can set multi-level of flexibility
Audio	Audio Encode Standard	G.711
Audio	Voice talk	Yes
Recording & Playback	Recording Mode	manual, alarm, motion detection, timing
	Playback	4ch
	Video Search	Time, date, event, channel search
Storage & Backup	Hard Disk Space(each channel per day)	1080P: 40GB / 720P: 20GB / 960H: 12~20GB / audio: 691MB
	Storage	HDD / Network
	Backup	USB portable HDD, network backup, USB recording, SATA recording
Interface	Video Input	4ch BNC
	Video Output	1ch HDMI, 1ch VGA
	Audio Input	4ch RCA
	Audio Output	1ch RCA
	Alarm Input	Optional
	Alarm Output	Optional
	Network Interface	RJ45 10M/100M adaptive ethernet port
	PTZ control	1*RS485, support mutilple PTZ protocol
	USD port	2*USB port
	HDD port	2*SATA (Max 4TB for each)
	WIFI interface	3G, WIFI (via USB)
Others	Power Supply	DC12V/4A
Others	Dimensions	320x265x45mm

AHD Camera	SV-A6826S-DM
Model No.	81~130W AHD Camera
CMOS Image Sensor	ov9712
Resolution	AHD 720P/CVBS 800TVL
Signal System	PAL/ NTSC
Effective Pixels	1280(H)×1024(V) Pixels
Minimum Illumination	Color: 0.1Lux(F1.2,50IRE,AGC ON);B&W:0.0002Lux(F1.2,50IRE,AGC ON)
Electronic Shutter	PAL :1/50 ~ 1/100,000s NTSC:1/60 ~ 1/100,000s
WDR	Digital Wide Dynamic
Frame accumulation	0-30X
2D-DNR	Off/Low/Medium/High
Image freeze	Support
BLC/HLC	Support
Defogging	0~2
S/N	> 60dB
Whilte Balance	Auto
Day and Night Switch	Auto(IRC)
Mirror	Horizontal/vertical
Privacy Masking	Support
OSD Menu	ENG/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR
Video Output	1.0Vp-p composite output, 75Ω
Power Supply	DC 12V±50%
Work Temperature	-20℃~+50℃
Work Humidity	Within 90%RH

Packaging & Shipping

About Share-Vision:

ShareVision: Professional manufacturer in the security and CCTV surveillance field.
We had been in business of chipset supplying for over 10 years.

Certifications: ISO9001:2000, RoHS, CE and FCC

R&D team: more than 50 professional engineers

Warranty: 2 year for long term cooperation

With long term OEM service for customer mainly from EU, USA, South America and Africa,
we will be your ideal choice for OEM Home / Office security.

What we can do for you:

1. All units with brand logo when system start up.

2. professional OEM packing with experience with UK and USA super market as the attached for reference.
They are asking 1 whole product line from us.

3. Certificate requested for Australia market ready for bulk order.

4. flexible payment term as per your request.

5. 1% spare part+ professional technical support as manufacturer

FAQ

Services:

1, Any inquiries will be replied within 24 hours

2, Professional manufacturer. welcome to visit our website
3, OEM/ODM available:
1),silk print logo on the camera
2),Customized camera housing
3),any your idea on camera we can help you to design and put it into production
4,High quality, fashion designs ,reasonable&competitive price,fast lead time
5,After-sale service
1),all products will have been strictly quality checked in house before packing
2),all products will be will packed before shipping.
3)all our products have 1year warranty , and we sure the products will be free from maintenance within warranty period.
6,faster delivery :
sample order in stock,and 3-7days for bulk production.
7,payment:
you can pay for the order via :T/T,Western union and Paypal
8,Shipping
we have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post
you also can choose your own shipping forwarder
