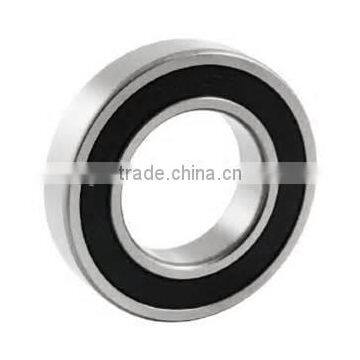

6206 zz/2rs deep groove ball bearing

FOB Price

USD $0.92 - $0.92 / Piece

1000 Pieces(Min.Order)

Port Shanghai
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	P&D	Bore Size	30,
Outside Diameter	62,	Model Number	6206ZZ
Precision Rating	P0 P6 P5 P4 P2	Seals Type	ZZ 2RS OPEN
Number of Row	Single Row	Place of Origin	Jiangsu, China

Product Description

Deep groove ball bearing is a kind of the most common rolling bearing. The basic type of deep groove ball bearing is composed of an outer ring, a ring, a group of steel ball and a group of retainers. Deep groove ball bearing has a single row and double row two types, and also has sealed bearing and open bearing, open refers to the bearing without sealing structure,sealing type deep groove ball into the dust seal and oil seal. Dust seal cover material for steel plate stamping, plays only a simple prevent dust from entering the bearing raceway. Oil proof type contact type oil seal, can effectively prevent bearing grease inside the spillover.

Applications:

Deep groove ball bearing can be used for transmission, instruments and meters, electric machinery, household electrical appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, engineering machinery, roller skate,yo-yo etc.

Deep Grove ( Radial ) – Quality bearing
ISO Certificate	*ISO 9001:2008*
Dimension	D (Outside)	62 mm
	d (Inside) Bore	30 mm
	B (Width)	16mm
ABEC Tolerance Codes	ABEC 1
RPM Limit	Grease 20000 rpm
Vibration Level	V1
Internal Clearance Codes	C3
Cross Reference Interchange	SKF 2RS1 TORR PP FAA PP FAG 2RS NSK DDU NTN LLU
Basic Load Ratings	Cr KN = 6.800
	Cor KN = 3.350
Shield/Closure codes	2RS (Two side rubber seals)
Lubrication	Greased– Wide Temperature Range: - 20 C to 120 C
