Home > Products > Angular contact ball bearing > 20*52*15 mm Angular contact bearing 7304 BEA

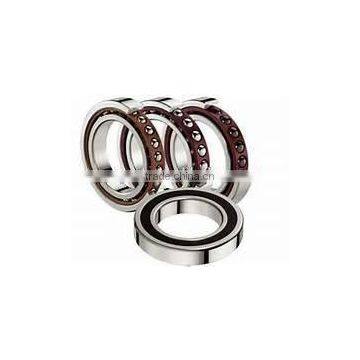

20*52*15 mm Angular contact bearing 7304 BEA
USD $1.8 - $2.5
/ Piece
100 Pieces(Min.Order)
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | P&D | Bore Size | 20, | |
| Outside Diameter | 52, | Model Number | 7304BEA | |
| Precision Rating | P0 P6 P5 P4 P2 | Seals Type | ZZ 2RS OPEN | |
| Number of Row | Single Row | Place of Origin | Jiangsu, China |
Product Description
The single-row angular contact ball bearing can bear the radial and axial loads.Although this kind of bearings can bear the one-way axial load only ,but it can work together with the other one bearing the opposite load.The angular contact ball bearing is non-detachable. The angular contact ball bearing is applicable to high rotation speed,and its self-aligning ability is very limited.
| Dimension (mm) | Bearing numbers | |||||
| d | D | B | Single | Duplex | ||
| 17 | 30 | 7 | 7903 A5 | DB | DF | DT |
| 17 | 30 | 7 | 7903 C | DB | DF | DT |
| 17 | 35 | 10 | 7003 A | DB | DF | DT |
| 17 | 35 | 10 | 7003 C | DB | DF | DT |
| 17 | 40 | 12 | 7203 A | DB | DF | DT |
| 17 | 40 | 12 | 7203 B | DB | DF | DT |
| 17 | 40 | 12 | 7203 BEA | DB | DF | DT |
| 17 | 40 | 12 | 7203 C | DB | DF | DT |
| 17 | 47 | 14 | 7303 A | DB | DF | DT |
| 17 | 47 | 14 | 7303 B | DB | DF | DT |
| 17 | 47 | 14 | 7303 BEA | DB | DF | DT |
| 20 | 37 | 9 | 7904 A5 | DB | DF | DT |
| 20 | 37 | 9 | 7904 C | DB | DF | DT |
| 20 | 42 | 12 | 7004 A | DB | DF | DT |
| 20 | 42 | 12 | 7004 C | DB | DF | DT |
| 20 | 47 | 14 | 7204 A | DB | DF | DT |
| 20 | 47 | 14 | 7204 B | DB | DF | DT |
| 20 | 47 | 14 | 7204 BEA | DB | DF | DT |
| 20 | 47 | 14 | 7204 C | DB | DF | DT |
| 20 | 52 | 15 | 7304 A | DB | DF | DT |
| 20 | 52 | 15 | 7304 B | DB | DF | DT |
| 20 | 52 | 15 | 7304 BEA | DB | DF | DT |
| 25 | 42 | 9 | 7905 A5 | DB | DF | DT |
| 25 | 42 | 9 | 7905 C | DB | DF | DT |
| 25 | 47 | 12 | 7005 A | DB | DF | DT |
| 25 | 47 | 12 | 7005 C | DB | DF | DT |
| 25 | 52 | 15 | 7205 A | DB | DF | DT |
| 25 | 52 | 15 | 7205 B | DB | DF | DT |
| 25 | 52 | 15 | 7205 BEA | DB | DF | DT |
| 25 | 52 | 15 | 7205 C | DB | DF | DT |
| 25 | 62 | 17 | 7305 A | DB | DF | DT |
