Home > Products > Big Size Spray Booths > water curtain wood drying oven with CE,ISO certificate
water curtain wood drying oven with CE,ISO certificate
- 200 Set / Sets per Month
- Guangzhou
- Credit Card PayPal
You May Like
-
wood painting oven with double layer water curtain unit
-
large diesel heating truck paint booth for sale
-
infrared heating large bus paint booth with environmental system
-
CE Standard Infrared Lamp Drying Type Big Bus Dry Paint Booth
-
customized wood painting oven for high quality paint effect
-
CE approved wood drying oven from 10 year experience factory
Product Details
| Power | 15kw (painting room)+3.5kw(natural drying room)+39.5kw (drying room) | External Size | 7000*7000*4000mm for painting room of water curtain spray booth | |
| Internal Size | 6900*5700*2650mm for painting room of water curtain spray booth | Voltage | 380v/3phase/50hz | |
| Certification | CE | No Load Speed | 0.23 M/s | |
| Place of Origin | Guangdong, China | Brand Name | Qiangxin | |
| Model Number | customized QX3000B-1 |
Product Description
Ten year experience on producing and exporting KINDS OF spray booth
CE,ISO,TRADE ASSURANCE,ONE YEAR GUARANTEE
water curtain wood drying oven with CE,ISO certificate
Reference water curtain spray booth project,main parts as below:
* 1 set painting rooms
*1 set natural drying room
*1 set drying room
All water curtain spray booths are customzied according to clients' atual needs ,welcome to contact
your professional consultant today for your water curtain spray booth:0086-13678922461(Sunny)
Technical parameter for the reference project(Model: customized QX3000B-1)
Parameter for Painting Room | |||
External size | 7000×7000×4000 (mm)(L×W×H) |
Internal size
| 6900×5700×2650 (mm)(L×W×H) |
| Entrance door | Aluminum alloy binding the framwork(thickness 1.8mm),1 set slide hung door dimension:2000×2000mm(W×H) | ||
| Wallboard | T=50mm EPS (epispastics polystyrene ) insulation material with S=0.426 two side steel panel | ||
| Lighting | 8 group light boxes *3 pcs LED lamps =24pcs LED energy saving lamps | ||
| Intake air system | Enviroment inlet fans:4 sets ,Single parameter YOW5.6m.1.5kw 12500m3/h.Intake air from upside,downside exhaust wind. | ||
| Exhaust air system | 2 set exhaust fan:YOW4 m. 3kw.18000m³/h | ||
| Filtration system | Equipped with CC—G650 high effiency cotton filter ,which can effictive 5Pm air dust particles ,Air inlet with 300 prefilter | ||
| Roof panel | Roof panel :T=50mm EPS insulation material with S=0.426 steel pannel ;roof skeleton is made of 40*80mm square tube | ||
| Control system | Painting,Light switch ,breakdown indicator ,power switch ,emergency stop switch and time setting ect | ||
| Water Curtain | Made of stailess steel material ,Diemension :2800×370*1500(mm)(W*H),2 set double layer water curtain.2set special water pump with 0.75KW power.Exhaust emission reaches national environmental standard. | ||
| Voltage | 380V 50HZt | ||
| Air flow speed | ≥0.25m/s | ||
| Light Intensity | ≥1000lx | ||
| Total power | 15kw | ||
| Basement (for water cistern) | 10# ,6#channel steel is lumn is made of channel steel , anti-rust galvanized grille(The cistern and its material in buyer side ),750*1150mm,total 8pcs | ||
| Air duct | 0.8mm galvanized steel plate,2pcs straight air pipe 700*700*1000mm(L*W*H),1 pcs binding pipe. | ||
If you have any query about this technical parameter or product, welcome to communicate with Sunny 0086-13678922461 | |||
| Parameter for Natural Drying Room | |||
| External size | 10000×6000×4000 (mm) (L*W*H) | Internal size | 9900×5900×2650 (mm)(L*W*H) |
| Entrance door | Aluminum alloy binding the framwork(thickness 1.8mm),1 set side hung door, hung door size:2000*2000mm(W*H).1 set sliding door,sliding door size: 2000*2000mm(W*H) | ||
| Wallboard | T=50mm EPS (epispastics polystyrene ) insulation material with S=0.426 two side steel panel | ||
| Lighting system | 8 pcs LED 16W energy saving lamps | ||
| Intake air system | Enviroment inlet fans:2 sets ,Single parameter YOW5.6m.1.5kw 12500m3/h.Intake air from upside,downside exhaust wind. | ||
| Roof | Gavalized plate , top skeleton 4*8 square tube | ||
| Control system | Airing .Light switch ,breakdown indicator ,power switch ,emergency stop switch and time setting ect | ||
| Voltage | 380V 50HZ | ||
| Air flow speed | ≥0.25m/s | ||
| Light Intensity | ≥1000lx | ||
| Total power | 3.5kw | ||
If you have any query about this technical parameter or product, welcome to communicate with Sunny 0086-13678922461 | |||
| Parameter for Infrared Heating Drying Room | |||||||
| External size | 10000×6000×4000 mm(L*W*H) | Internal size | 9900×5900×2650 (mm)(L*W*H) | ||||
| Entrance door | Aluminum alloy binding the framwork(thickness 1.8mm),1 set side hung door, side hung door size :2000×2000mm(W×H).1 set sliding door ,sliding door size:2000*2000mm(W*H) | ||||||
| Wallboard | T=50mm EPS (epispastics polystyrene ) insulation material with S=0.426 two side steel panel | ||||||
Lighting system | 8 pcs 16W LED energy saving lamps | ||||||
| Heating system | 36 group infrared heating lamps,each group 1000W..Max heat output 360000kcal/h.The operating temperature 30℃-40℃ | ||||||
| Intake air system | Enviroment inlet fans:2 set ,Single parameter YOW5.6m.1.5kw 12500m3/h.Intake air from upside,downside exhaust wind. | ||||||
| Roof | Roof panel :T=50mm EPS insulation material with S=0.426 steel pannel ;roof skeleton is made of 40*80mm square tube | ||||||
| Control system | Baking ,Light switch ,breakdown indicator ,power switch ,emergency stop switch and time setting ect | ||||||
| Voltage | 380V 50HZ | ||||||
| Light Intensity | ≥1000lx | ||||||
| Power | 39.5KW | ||||||
If you have any query about this technical parameter or product, welcome to communicate with Sunny 0086-13678922461 | |||||||

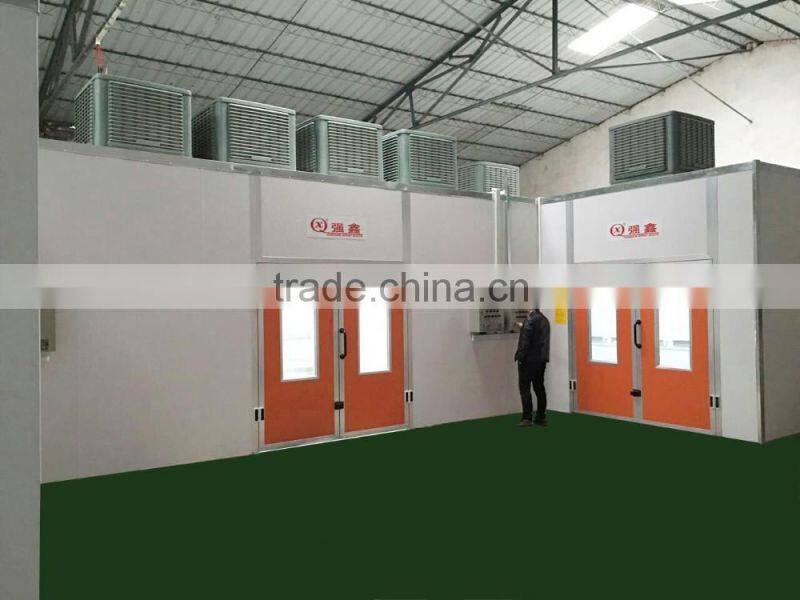

Reference project pictures

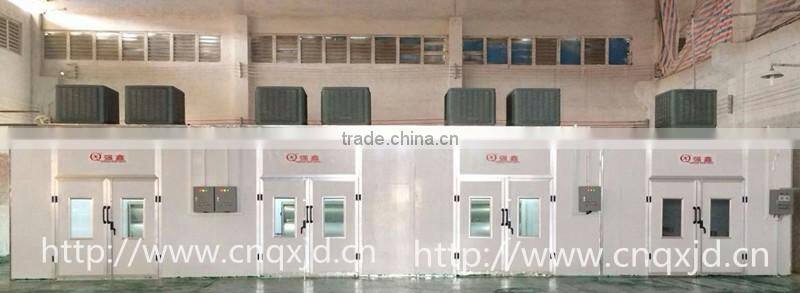

More furniture spray booth projects

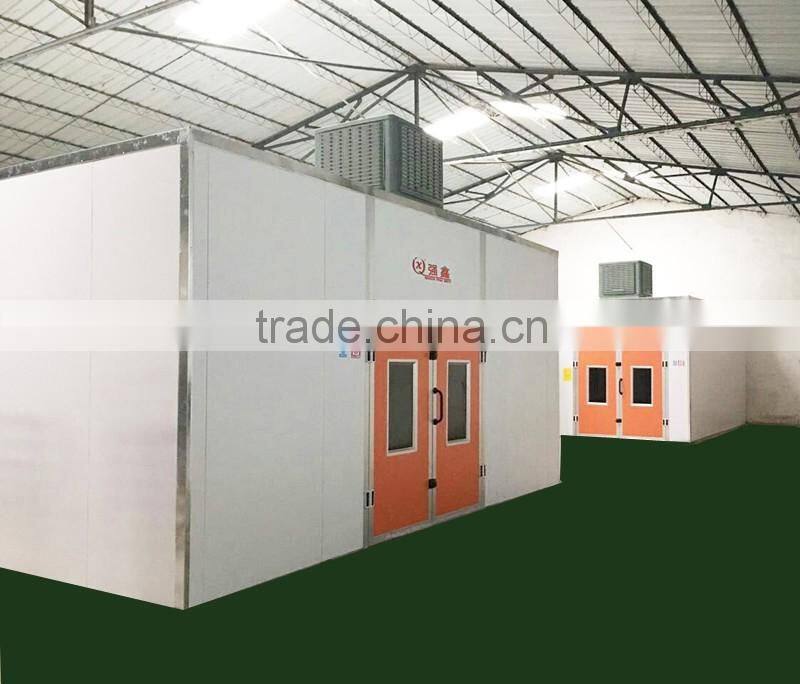

Appearance of spray booth

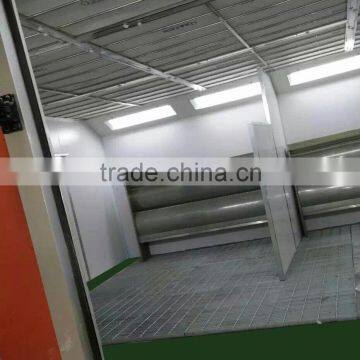

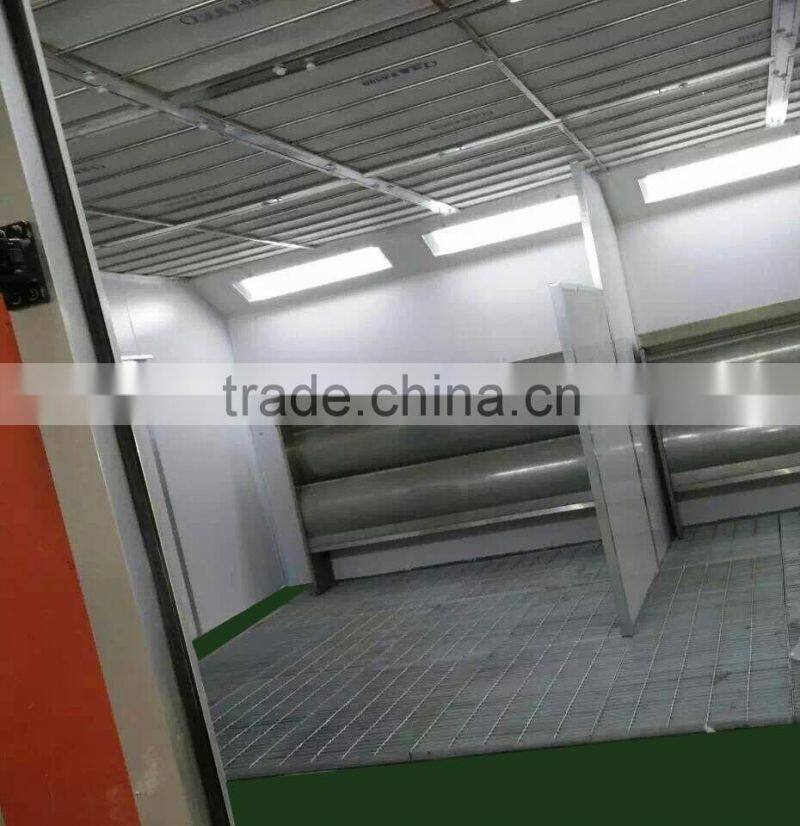

Different water curtain type and design in painting room(or polishing room)

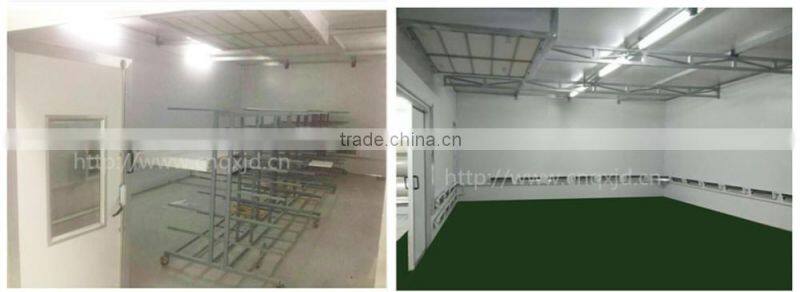

Drying room inside pictures
Packing and shipping
Certificate
Service
*Customize service and design service
*Trade assurance(100% protection for product quality and on-time shipment)
*One year guarantee for spray booth
*Installation teaching service
*Longlife after-sale service

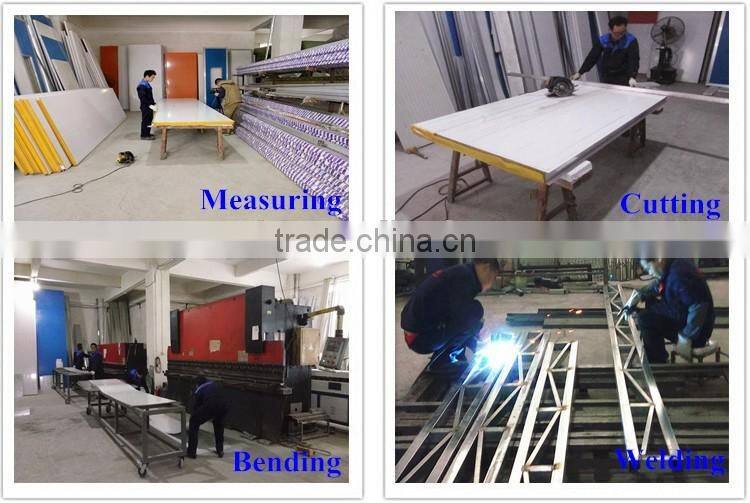

Factory
Hot sale model
QX2000AB luxury electric spray booth please click following picture for more details | QX2000 diesel heating spray booth please click following picture for more details |
| |
Welcome to contact your professional spray booth counselor today:0086 -13678922461(Sunny)
