5/7 Layer Coextrusion Tubular Film Made in Wenzhou China

1:Introduction of Co-extrusion Film

The seven layers co-extrusion film is Consist of PA, EVOH and PP/ PE etc. material, according to the different require of guests.Usingsymmetrical or unsymmetrical unitized construction. Because of putting in of PA and EVOH, it not only improves the barrier property of the multi-films to oxygen but also keeps the good smell of food, strengthen the performance of anti moisture and extend the storage period, because of achieveing the usage of every materials which are low cost. one-step forming process also makes the material has the advantage of solvent-free.the seven layer co-extrusion film also suitable for the package of the chemical raw material, food and medicine, because it has the advantage of anti-impact, anti-pierce and high strength. so it becomes the current ofthenewpackagingway. Jinhu Packaging mateial CO.,LTD has the most advanced machines for producing the co-extrusion film. and seven or five layers are all ok,and they can be produced by upper blowing and lower blowing process in Jinhu Packaging material CO.,LTD.

2:The Advantage of the Co-extrusion Film

A.-40 would be the lowest temperature it can bear

B.Better Clarity

C.Higher Puncture Resistance&heat sealing

3:Items for Films

A:Item:Freezer Pouch and films

Application:Food such as meat,sausage,seafood,fruit,vegetables,cheese

Structure:Co-extruded 5 layer and 7 layer.

width can be:20cm-150cm

thickness can be:50microns-300microns

Materia: PA/TIE/PA/TIE/PE/PE/MPE

PA/EVOH/PA/TIE/PE/PE/MPE

PA/TIE/PE/TIE/PA/EVOH/PA/TIE/PE

PE/TIE/PA/TIE/PA/TIE/PE

Type of Sealing: Bottom sealed ,3 side sealed and sealed with a drain tap

can be feed bag.

Certificate:SGS showing our good is complied with the FDA

Application1.Low Oxygen Transmission Rate

2.Low Water Vapour Transmission Rate

3.Fine Gloss

4.Can be contacted directly with food

5.Environmentally Friendly

6.Suitable for deep freezing down to -40°C .

7. Suitable for pasteurization up to 100°C.

B:Item: Retort pouch and Films

Application:Food such as meat with sharp bones in it

and some meat which need to heat with micronwave oven or high pressure cooker without remove the pouch.

Structure:Co-extruded 5 layer and 7 layer

width can be:20cm-90cm

thickness can be:50microns-300microns

Material:PP/TIE/PA/TIE/PE/PE/MPE

Type of Sealing: Bottom sealed ,3 side sealed and sealed

Certificate:SGS showing our good is complied with the FDA

Application1.Low Oxygen Transmission Rate

2.Low Water Vapour Transmission Rate

3.Fine Gloss

4.Can be contacted directly with food

5.Environmentally Friendly

6. suitable for pasteurization up to 121°C.

Note:

1.We will offer you price referring to your detail request, so please kindly inform us of the material, thickness, size and other requirements you prefer, and the special offer will be given.

2.We can produce various packaging films packaging bags as per your requirements, if necessary, we can also give some advice for reference

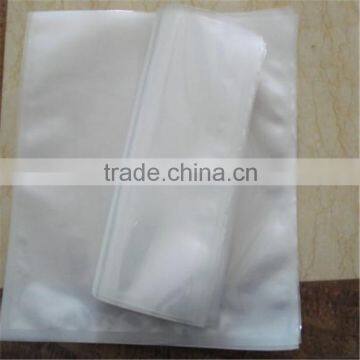

3.The pictures above just for your reference. any samples is available.
