solar panels 250 watt
- Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OSDA | |
| Model Number | ODA250-30-M | Specification | Normal | |
| Output Voltage (V) | 30V | Solar Power (W) | 250W |
Product Description
Specifications
*IEC61215, IEC61730, MCS CEC certified*TUV, CE conformity
*ISO 9001:2008(Quality Management System) certified factory

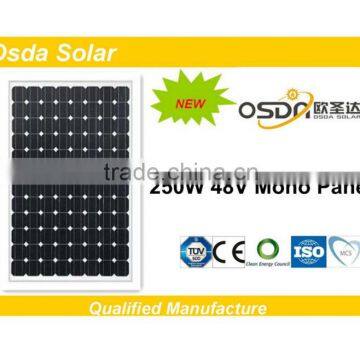

250W MONO Solar modules
Production
Packing & Loading
Technical parameter(with tolerance 0+3%)
| Maximum Power(W) | 250Wp |
| Optimum Power Voltage(Vmp) | 30.48V |
| Optimum Operating Current(Imp) | 8.22A |
| Open Circuit Voltage(Voc) | 37.30V |
| Short Circuit Current(Isc) | 8.93A |
| Cell Efficiency (% ) | 16.89% |
| Module Efficiency (%) | 15.40% |
Temperature and Coefficients
| Operating Temperature(°C) | -40°C ~ + 85°C |
| Maximum System Voltage | 600V(UL)/1000V(IEC) DC |
| Maximum Rated Current Series | 10A |
| Temperature Coefficients of Pmax | -0.435% |
| Temperature Coefficients of Voc | -0.35% |
| Temperature Coefficients of Isc | 0.043% |
| Nominal Operationg Cell Temperature (NOCT) | 47+/-2°C |
Quality guarantee
| 1) Industry leading power output warranty(10 years/90%,25years/80%) |
| 2) 10-year warranty on product-materials and processing technology |
| 3) ISO9001:2000(Quality System Management) certified factory |
Features
* High conversion efficiency
* Low power tolerance of +3%
* Low degradation under light exposure
* Can withstand high wind-pressure, snow load and extreme temperature
* Passing IEC 61215 2400Pa mechanical load test
Quality and Safety
* 5 years warranty on product materials and processing technology
* Power output warranty: 10 years: 90%, 25years: 80%
* ISO 9001:2008(Quality Management System) certified factory
* IEC61215, IEC61730, MCS CEC certified products
* TUV, CE conformity
