36V Mono photovoltaic 190W solar panel,solar panels for sale
- Ningbo
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | OSDA | |
Model Number | ODA190-36-M | Specification | Normal | |
Application | Commercial | Output Voltage (V) | 36V | |
Solar Power (W) | 190W |
Product Description
Specifications
*IEC61215, IEC61730, MCS CEC certified*TUV, CE conformity
*ISO 9001:2008(Quality Management System) certified factory

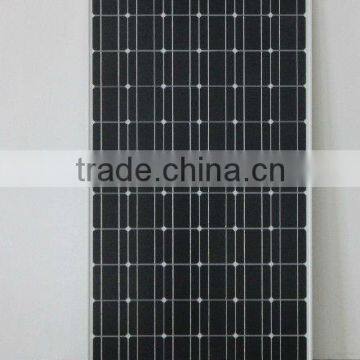

OSDA Mono 190w
Panel
Details on the back
Production
Packing & Loading
Technical parameter(with tolerance 0+3%)
Maximum Power(W) | 190Wp |
Optimum Power Voltage(Vmp) | 37.15V |
Optimum Operating Current(Imp) | 5.11A |
Open Circuit Voltage(Voc) | 45.30V |
Short Circuit Current(Isc) | 5.62A |
Cell Efficiency (% ) | 16.89% |
Module Efficiency (%) | 14.88% |
Mechanical Characteristics
Cell Type | Monocrystalline 125x125mm (5 inch) |
No. of Cell | 72(6x12) |
Dimensions | 1580x808x35mm |
Weight | 14.5kg |
Front Glass | 3.2mm,High Transmission, Low Iron,Tempered Glass |
Frame | Anodized Aluminium Alloy |
Junction box | IP65 Rated |
Output Cable | TUV 1x4.0mm2/UL12AWG,Length:900mm |
Temperature and Coefficients
Operating Temperature(°C) | -40°C ~ + 85°C |
Maximum System Voltage | 600V(UL)/1000V(IEC) DC |
Maximum Rated Current Series | 10A |
Temperature Coefficients of Pmax | -0.435% |
Temperature Coefficients of Voc | -0.35% |
Temperature Coefficients of Isc | 0.043% |
Nominal Operationg Cell Temperature (NOCT) | 47+/-2°C |
Quality guarantee
1) Industry leading power output warranty(10 years/90%,25years/80%) |
2) 10-year warranty on product-materials and processing technology |
3) ISO9001:2000(Quality System Management) certified factory |
