Home > Products > DTH Drill Machine > KEEN Premium Power drilling machine
KEEN Premium Power drilling machine
- 30 Set / Sets per Month
- Xiamen
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Power Type | Electric | Place of Origin | Fujian, China | |
| Brand Name | Keentool | Model Number | LQ-PE-90B | |
| Usage | Other, Power drilling machine for drilling holes | Dimension(L*W*H) | 2650*780*600MM | |
| Weight | 560KG | Certification | CE,SGS, CE, SGS | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
The Power drilling machine
The Power drilling machine are mainly used for perforation working during stone quarrying which commonly used for drilling use a pneumatic system: the energy thrust is transmitted by compressed air. In fact, the Power drilling machine need air compressors. The pneumatic hammers penetrate the rock mass by means of a drill rod that is nothing more than a shaped steel rod. The pneumatic system is supported or sometimes substituted by the hydraulic system in which hydraulic oil instead of air is used to transmit the energy.
The parameters of Power drilling machine
Model | LQ-PE-90B | LQ-PE-90B |
Type | Full Pneumatic | Pneumatic & Electric |
Diameter of the drilling hole | Φ65-Φ90 | Φ65-Φ90 |
Max depth of drill hole | 30-40 Meter | 25-30Meter |
Drilling speed | 3-6 Meter/Hour | 4-6 Meter/Hour |
Air consumption | 9-12 M3/Min | 5-8 M3/Min |
Minimum air pressure | 0.6Mpa | 0.6Mpa |
Drilling direction | Any direction (Horizontal, Vertical, Slant) | |
Extension distance | 1.2 Meters | 1.2 Meters |
Advance device | Pneumatic motor, reducer, chain | Pneumatic motor, reducer, chain |
Rotation device | Pneumatic motor, reducer | Electric motor, reducer |
Adjust height of down jack | 220mm | 220mm |
Control panel | Remote control, manual change direction | |
Net weight | 550 KGS | 560KGS |
When inquiring please sending the following information for our technical reference:
1. The type of motor (Full Pneumatic / Pneumatic& electric / pneumatic &hydraulic)
2. Diameter of the down-the-hole-hammer (65mm/ 90mm)
3. How many meters of pipe needed.
4. Special requirement (if any)
Packaging Details: All packing will be dong with protection against damages while transporting
Delivery Details: Within 7 working days for 1 set of Power drilling machine.

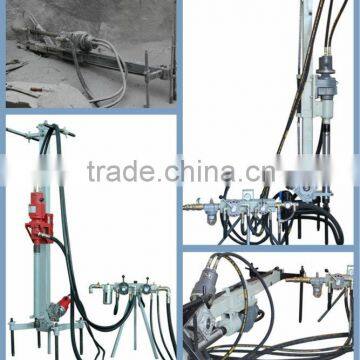

The photos of Power drilling machine
Working site
We, KEEN TOOL is a specialized manufacturer of diamond tools for construction industry with 20 years experience, and we mainly concentrates on series equipments and diamond wires for stone quarry work and construction work in recent 8 years. We monthly produce around 8000 Meters diamond wire and 30 sets quarry equipments now, 80% of them are for export to USA, Brazil, Australia, South Africa, East & West Europe, especially our LQ & ROC series diamond wire for natural stone quarry work, shape cutting and controlled demolition of construction (for concrete, reinforced concrete and steel rebar).
KEENTOOL will be best solution for customers in fields as below:
1. Diamond Wire for stone quarry, blocks trimming and profiling.
2. Diamond Wire for controlled demolition work of construction with structure of concrete, reinforced concrete and steel.
3. Wire Saw Machine with variable speed and step-less tension system for quarry and block cutting.
4. DTH drills with complete Pneumatic system, or Pneumatic & Electrical system for drilling the wire hole.
5. Conventional Diamond Tools for processing stone and other construction materials.
Stone fair
