Home > Products > PCBA One Stop Service > Manufacturing Electronic OEM High Quality Water Heater Electronic Control Board

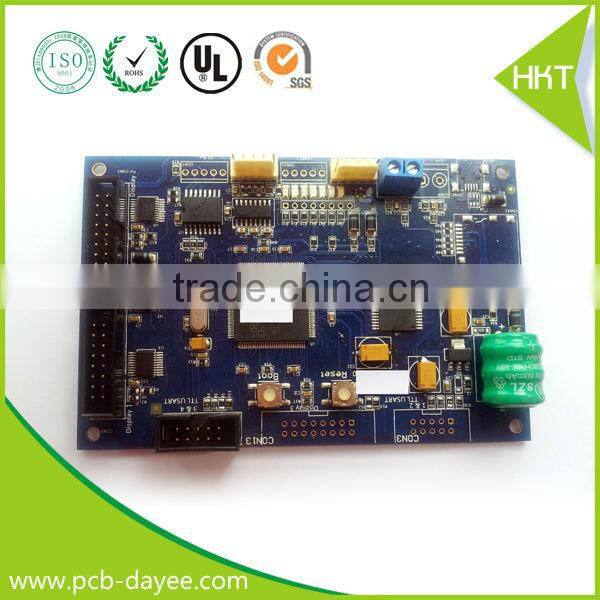

Manufacturing Electronic OEM High Quality Water Heater Electronic Control Board
- SHENZHEN OR HK
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HENGKAITUO | |
| Model Number | control board | Base Material | FR4 | |
| Copper Thickness | 0.5oz-4oz | Board Thickness | 0.4mm-3.2mm | |
| Min. Hole Size | Machine Drilling 0.2mm; Laser Drilling 0.1mm | Min. Line Width | 3MIL | |
| Min. Line Spacing | 3MIL | Surface Finishing | HASL |
Product Description
WELCOME to HENGKAITUO(DAYEE)
What we can do for you?
- EMS-Electronic Manufacturing Service
PCB design and PCB Layout
PCB Assembly on SMT, BGA and DIP
Cost Effective Components Sourcing
Fast Turn Prototype and Mass Production
Box Build Assembly
Engineering Support
Tests(X-ray, 3D Paste Thickness, ICT, AOI and Functional tests)
Logistics and After-sales Service
Manufacturing capability
PCB layers | 1-layer to 10-layer(including HDI board) |
Finish type | Gold-plated ,Immersion gold-plated, HAL finish , Flux., Carbon -bridge, Entek, Nickel plating |
Base material | FR4,CEM-1,CEM-3,FR1,FR2, Aluminium metal substrate and Rogers |
Base material thickness | 0.4-2.4mm. |
Copper foil thickness | 18um(H/HOZ) ,35um(1/1OZ) ,70um(2/2OZ), 5OZ |
Maximum-product board | 500*700mm. For AL PCB: 500*1400mm |
Minimum drilled hole size | 0.075mm |
Minimum track width/spacing | 3mil |
Average hole wall copper | Thickness for HAL board: ≥25um.Gold-finger plating: ≥0.1um |
Solder mask ink | Photo cure ink, heat cure ink. UV ink |
Outline tolerance | ±0.1mm |
Hole diameter tolerance/ Hole location tolerance | ±0.076mm/±0.076mm |
V-CUT tolerance | ±0.1mm. |
Warp | According to the IPC-600F standard |
lead time | Single-sided: 2-3 working days; Double-sided: 3-4 working days; Multi-layer: 8-10 working days |

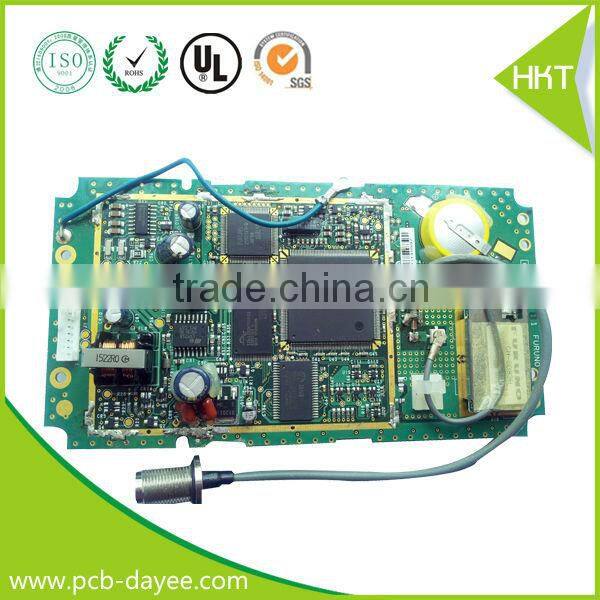

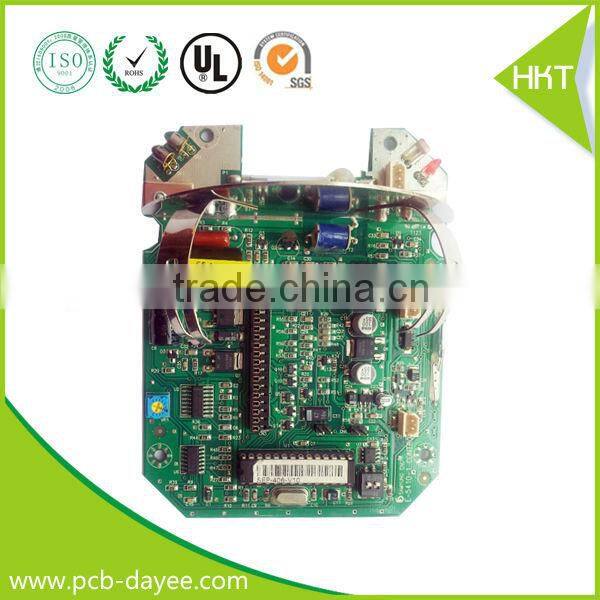

Our Products:
Our Workshop:

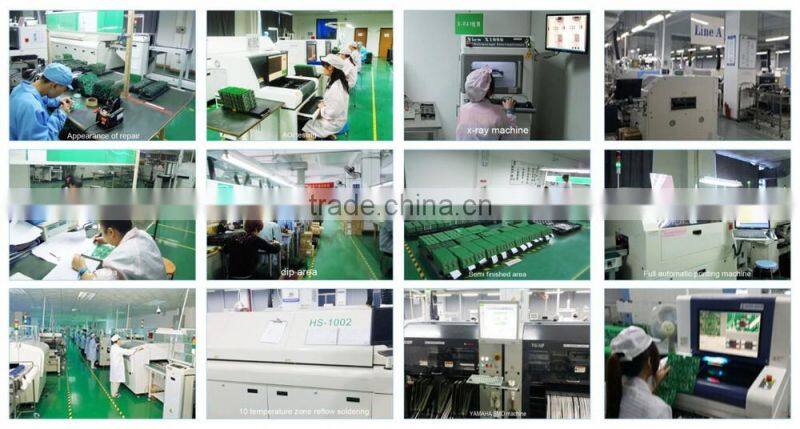

1) Our production line 1

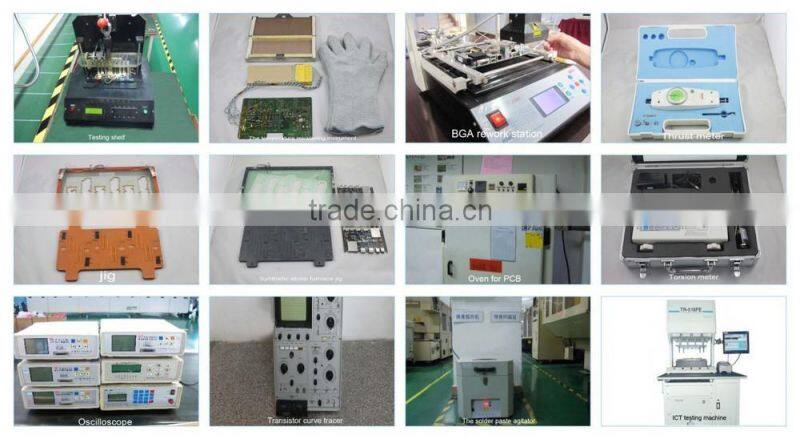

2) Our testing equipment:
Our Equipment list:
Equipment Name | Qty Number |
YAMAHA, YG, YS series of new high-speed placement machine | 5 sets |
Japan's YAMAHA YV, YG, YS series of new multi-functional SMD machine | 6 sets |
Imports of high-speed PAWASERT placement machine | 1 set |
Gang Yang eight temperature zone (with cooling zone) lead-free reflow soldering | 2 sets |
Yang Gang lead-free red gum reflow soldering | 1 set |
Jin extension ten upper and lower temperature region (with cooling zone) | 2 sets |
Automatic printing machine | 4 sets |
Semi-automatic printing machine | 3 sets |
AOI optical detection instrument | 2 sets |
XR machine | 1 set |
BGA repair machine | 1 set |
Lead-free spray-double Wave soldering | 2 sets |
Lead spray-double Wave soldering | 2 sets |
Full automatic SMT production line | 7 lines |
DIP line | 6 lines |
DIP for after assembly line | 6 lines |
Assembly line | 3 lines |
Aging room. Calibration device, test bench, vibration tester, tester ect. |
|
|

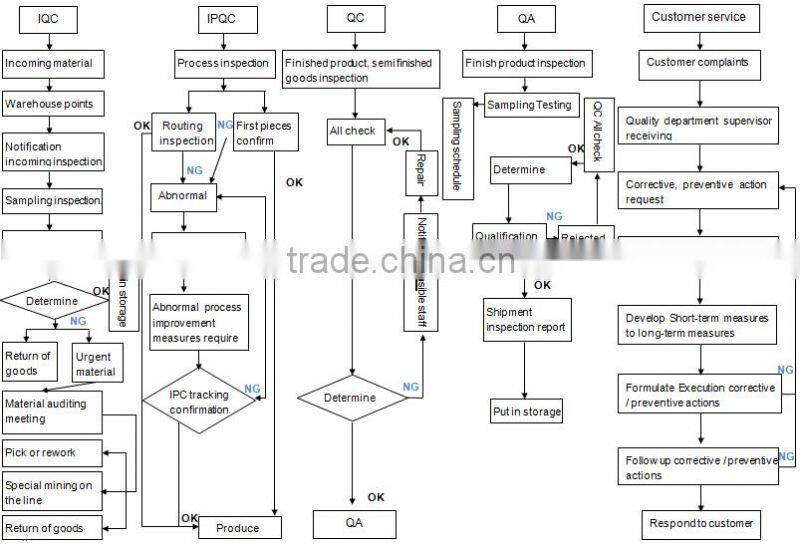

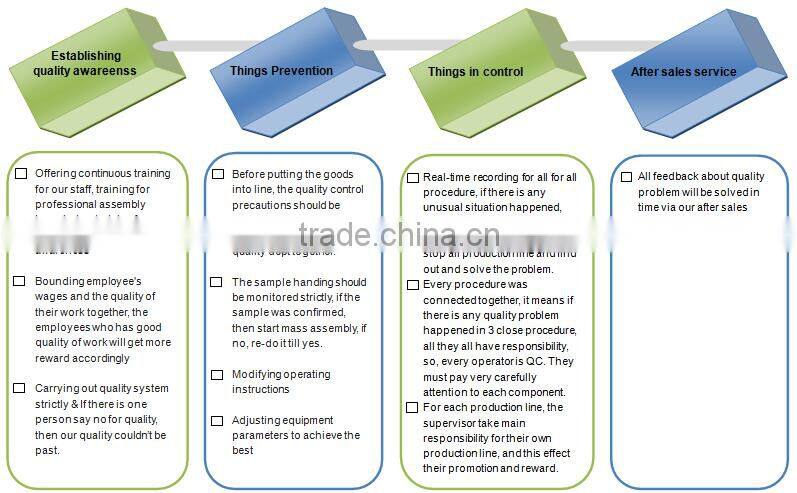

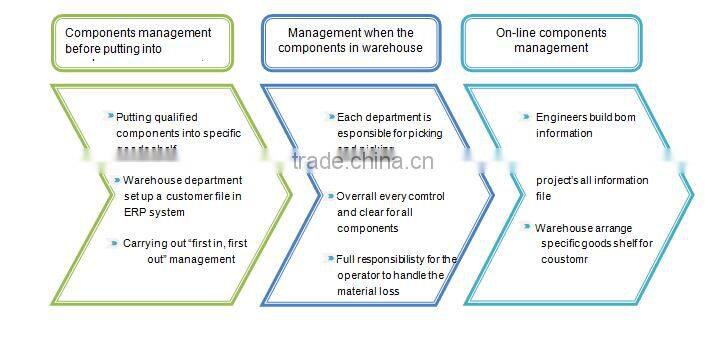

Our Quality Control System:
Our company executes the ROHS requirements, all the products we provide to our customers will be strictly accordance with ROHS standard. Our quality contral system includes following process
1) Risk assessment
Before production, we take all action to avoid risk though following step:
2) ERP quality system
Making all departments, like production, supply, sales, inventory, human resources, finance, logistics, decision-making departments can share resources, information together in enterprise. So that enterprise could analysis, forecast, making decision for all related enterprise management activity. Under this management system, whole enterprise business process will be controlled and improved under healthy situation
3) Production process quality control
- DIP assembly process quality control
- SMT assembly process quality control
4) Electrostatic protection method
- Inhibiting static charge accumulation and static charge generation
- Eliminating existent static charge in quick and safe way.
- The implementing electrostatic protection area(EPA) and good grounding system
Our Package:
Why us?
*- Providing you 100% good quality product: 4 times 100% QC inspection & AOI X-ray test & FUNCTIONAL testing before Shipping.
*- Get a competitive price of product to occupy the market based on 100% good quality assurance, our stable components suppliers are Mouser, ARROW electronics, Digikey, RS, etc.
*- Our one stop PCB & PCBA service release your energy to focus on design and marketing.
*- Our professional engineering team can provide you technology support and professional suggestion at any time with more than 10 years working experience.
So, you must win!
Contact Us
- Shenzhen Hengkaituo Sci-Tech Co., Ltd.
- Contact nameJane Ma Chat Now
- Phone0086-755-28548369
- Address37 B, B zone, Fulian, Longhua district, Shenzhen, Guangdong
