China Manufacture for Fiberglass Covered Rectangular Aluminum Winding Wire
- Tianjing / Shanghai / Qingdao
- T/T D/P D/A Credit Card
You May Like
-
High Quality Fiberglass Insulated Flat Aluminum Wire on
-
Fiberglass Covered Magnet Wire for Transformer on
-
Fiberglass Covered Rectangular Aluminum Electric Winding Wire for Electrical Apparatus
-
Fiberglass Covered Aluminum Electric Winding Wire for Electric on
-
Fiberglass Insulated Enameled Aluminum Round Wire for Motor
-
Transformer Electrical Wires Enamelled Wires AWG SWG in China
Product Details
| Place of Origin | Henan, China | Brand Name | HUAYUAN | |
| Model Number | GLEMLB | Type | Insulated | |
| Application | Other, Transformer,Generator | Conductor Material | Aluminum | |
| Conductor Type | Solid | Insulation Material | Fiberglass |

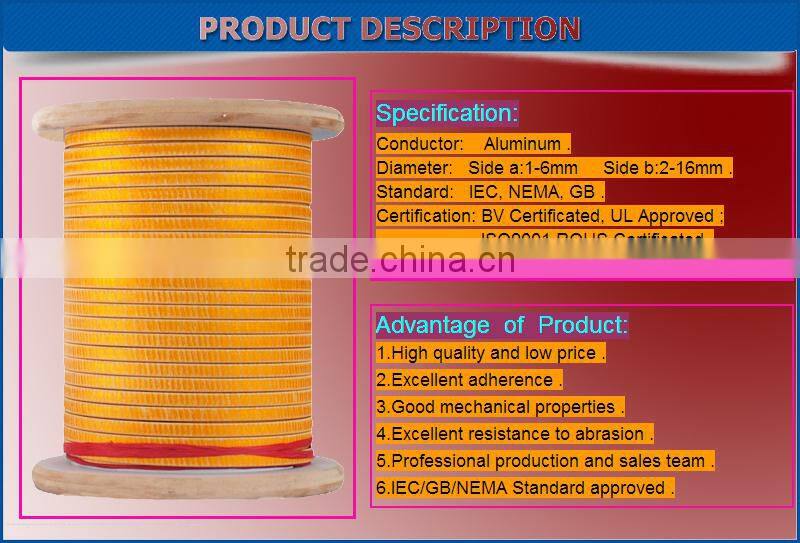

Product Description
Specifications
Conductor Diameter:Side A: 1-6.0mm / Side B: 2.0-16.0mm
Superiority:High breakdown voltage and good mechanical properties
Test Report :
| Name | Fiberglass covered rectangular aluminum wire | ||||
| Species |
2.120×6.000 | ||||
| Test Item | Standard | unit | Test Result | Conclusion | |
| Size | Max outside diameter | 2.630×6.530 | mm | 2.573 ×6.450 | OK |
| Thickness | ±0.030 | mm | 2.123 | OK | |
| width | ±0.070 | mm | 5.984 | OK | |
| Appearance | Uniform ,no missing layer, no wrinkling and cracking | No Defect | OK | ||
| Insulation Thickness | 0.32--0.40--0.48 | mm | 0.450 | OK | |
| Resistivity(20ºC) | AL≤0.02785 | Ω.mm2/m | 0.02771 | OK | |
| Adherence | No crack in the insulation after 10% elongation | No cracking | OK | ||
| Elongation | ≥17 | % | 32 | OK | |
| Breakdown Voltage | ≥560 | V | 950,980,895,982 | OK | |
| Packing | Meet the export standard | Meet the export standard | OK | ||
| Final Conclusion | OK | ||||
Production flow :
Inner packing:Plywood Wooden Spool .
Outer packing:wooden pallet with paper board and stretched film or according to customers' special requirements .
Our product has been packed in wooden case in order to protect Fiberglass covered rectangular aluminum wire from damage during transport .
Founded in 1993, Xuchang Huayuan Magnet Wire Co.,Ltd located in Henan Province with covering an area of 100000 m2 and a building area of 30000m2.We are producers with more than 20 years of production experience.Since our factory was established,we have been engaged in researching and manufacturing enamelled magnet wire and winding magnet wire.
Main product :
Our experimental equipment :
Typical applicayion include :
Contact Information :
1.Can we supply the sample for free?
Yes,we can.
2.How many types of our product?
We can supply enamelled aluminum wire,enamelled copper wire,paper covered magnet wire, fiber glass covered magnet wire and other magnet winding wire.
3.How long has been our company established?
We has produced since 1993.
4.What's our MOQ?
500kg.
5.Which payment terms we prefer?
(1) L/C
(2) T/T
(3) D/P
(4) Western Union
