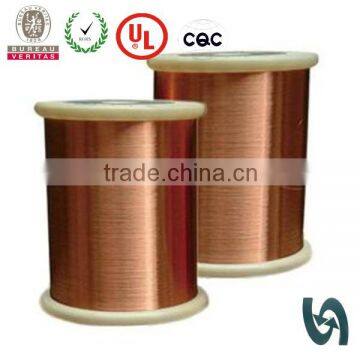

UL apprrovel polyester-imide enameled round copper wire

Specifications

UL apprrovel polyester-imide enameled round copper wire

enameled

 Feature of enameled round copper wire

 1.Chemically resistant

 2.Excellent thermal stability

 3.High resistance to abrasion

 4.Better sliding during coil insertion in slots

 5.Excellent dielectric and mechanical properties

 6.Very good chemical resistance to common solvent and coolants

Test report of enamelled round copper wire

              TYPE: QZ-2/155                                       P/I NO.:

               SIZE: Φ 1.060                                         TEST NO.:13071504

Material

  Conductor:

 Bare copper wire or squeeze bare flat wire confirm the National standard, smooth surface, low resistance.

 Insulation:

 ELANTAS varnish guarantee the quality.

.

                                                                                                                             ELANTAS  varnish

Manufacturing Process

     The 6 main steps to produce a high quality enameled round copper wire

 We can provide neutral package.or cuatomers special requirement.

Normal Packing as follows:

Inner packing: different plastic spool according to wire diameter

Outer packing: wooden spool and in wooden case or according customers' special requirement

 Sample shipping time:3-5days

1. free sample will be provide

2. Many foreign trade corporation

3. Customized product; we have two editor of GB standard. We can satisfy the customer special requirement of the  enameled round copper wire , if you have problem about the enameled copper wire. pls feel free to contact us

Product Application

  enameled round copper wire has been widely used in power transformers, linear motors, relays, solenoids, small motors, clock   coils, watch coils, magnetic heads, instruments,speakers,Automotive sensors and coils as relais and ignition coils,Generators,dry-type or oil-immersed transformer.Anti-explosion motor,air-conditioner compressor,washing machine.Military and space applications

•  Certification

      Xuchang Huayuan Electric Apparatus Co., Ltd. was established in 1993 and we have developed into a professional manufacturer of enameled round copper wire and paper covered aluminum wire as well as fiber-glass covered aluminum wire. Our 100,000sqm factory is ISO9001 (00112Q213049R1M/4100) certified, and our products are also UL listed. Our workshop maintains constant temperature and humidity to guarantee the quality.

Quality Control

 Our company have provincial  laboratories and two editor of GB standard to guarantee our quality.our on-line monitoring system are effect control lacquer wart and particles

Please feel free to contact us for any question,we will reply within 24h.
