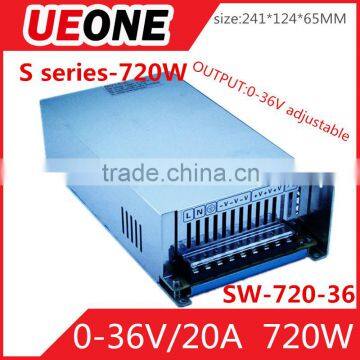

0-36v 20a adjustable switching power supply 720W 36V adjustable power supply SW-720-36

Specification

SW-720-12

SW-720-36

SW-720 -15

SW-720-24

SW-720-80

SW-720-110

DC output voltage

12V

36V

15V

24V

80V

110V

Output voltage range(Note:2)

±1%

±1%

±1%

±1%

±1%

±1%

Rated output current

60A

20A

48A

30A

9A

6.5A

Output current range

0-60A

0-20A

0-48A

0-30A

0-9A

0-6.5A

Wave and noise(Note:3)

200mVp-p

200mVp-p

200mVp-p

200mVp-p

200mVp-p

200mVp-p

Inlet stability(Note:4)

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load stability(Note:5)

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

DC output power

720W

720W

720W

720W

720W

720W

Efficiency

84%

84%

85%

85.5%

86.5%

87%

Adjustable range for DC voltage

0~13.2V

0-36V

0-15V

0-24V

0-80V

0-110V

AC input voltage range

190~264VAC/ 47~63Hz

Input current

7A/230V

AC Inrush current

50A/230V

Leakage current

50A/230V

Overload protection

105%-150% Type: pulsing hiccup shutdown Reset: auto recovery

Over-voltage protection

V

V

V

V

V

V

High-temperature protection

≥70°Ccutoff output(0~50°C)

Temperature coefficient

±0.03%/°C(0~50°C)

Setup, rise, hold up time

1.5s 50ms 20ms   UEONE SWITCHING POWER SUPPLY

Vibration

10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes

Withstand voltage

Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvA

Working temperature and humidity

--10°C~+60°C(Refer to output derating curve),20%~90%RH

Store temperature and humidity

-20°C~+85°C,10%~95%RH

Overall dimension

241*124*65mm

Weight

1.7kgs

Safety standards

Meet UL 1950 requirement(Not apply for the mark)

EMC standards

CISPR22(EN55022),IEC1000-4,2,,3,4,5,6,8,11 IEC1000-3-2
