Home > Products > Rubber & Plastics > Manufacturer 1/4 inch 500 PSI oil resistant synthetic rubber air hose

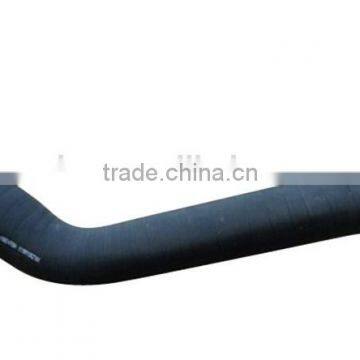

Manufacturer 1/4 inch 500 PSI oil resistant synthetic rubber air hose
- Tianjing
- T/T Credit Card
You May Like
-
OEM handmade 1 inch colored silicone rubber air hose
-
OEM handmade 1 inch resistant colored silicone air hose
-
OEM High Pressure automotive hot water resistant rubber hose
-
Non smell Wire Spiral and fiber braid flexible pvc hose,silicone pvc clear hose,4 inch pvc hose
-
OEM handmade 1 inch colored 90 degree silicone rubber air hose
-
SAE standrad High pressure OEM 1/4 inch hydraulic rubber oil hose
Product Details
| Place of Origin | Hebei, China | Brand Name | CMAX |
Product Description
| Material:: | synthetic rubber,polyester fiber | Color:: | Black | Applications:: | transmitting gasoline, ethanol gasoline ,diesel etc |
| Thickness:: | 3mm | MOQ:: | 3000 meters | Product name:: | fuel line hoses |
| Safety factor:: | 5:1 | Certificatins:: | ISO/TS 16949:2009 | Size range:: | 3/16~3/4 inch |
| OEM accepted:: | yes |
Packaging & Delivery
| Packaging Detail: | fuel line hoses packing(5/16 inch) 80000m/container size:long 591 cm,wide234cm,high238cm. G.W:13TON |
| Delivery Detail: | 15 Days |
Applications :
Designed for transmitting gasoline, ethanol gasoline ,diesel ,and lubrication oil for automobile and combustion engines.
Construction:
Tube:Rubber with high performance on oil resistance
Reinforcement: High tensile braid of fibers
Cover: Synthetic rubber with excellent aging resistance and weather ability. Smooth surface, concave-convex surface and cloth covered
Temparature Range:-40°C~+110°C
Specification:
NO | I.D | Refer to O.D | Working pressure | Burst pressure | approximate Weight | |||||
(inch) | (mm) | (inch) | (mm) | MPa | Psi | MPa | Psi | kg/m | lbs/ft | |
1 | 1/8 | 3.2±0.2 | 0.35 | 9±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.078 | 0.12 |
2 | 5/32 | 4±0.2 | 0.4 | 10±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.092 | 0.14 |
3 | 3/16 | 4.8±0.2 | 0.43 | 11±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.108 | 0.16 |
4 | 1/4 | 6.3±0.3 | 0.5 | 12.7±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.134 | 0.2 |
5 | 5/16 | 8.0±0.3 | 0.56 | 14±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.147 | 0.22 |
6 | 3/8 | 9.5±0.3 | 0.63 | 16±0.4 | 2.06 | 300 | 8.27 | 1200 | 0.182 | 0.27 |
7 | 15/32 | 12±0.3 | 0.75 | 19±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.238 | 0.35 |
8 | 1/2 | 12.7±0.4 | 0.78 | 20±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.262 | 0.39 |
9 | 5/8 | 16±0.4 | 0.94 | 24±0.5 | 1.03 | 150 | 4.12 | 600 | 0.351 | 0.52 |
10 | 3/4 | 19±0.4 | 1.13 | 28.8±0.5 | 1.03 | 150 | 4.12 | 600 | 0.515 | 0.77 |
11 | 1 | 25.4±0.5 | 1.38 | 35±0.6 | 1.03 | 150 | 4.12 | 600 | 0.637 | 0.95 |
