Home > Products > Rubber & Plastics > High Pressure automotive handmade hot water resistant silicone rubber hose

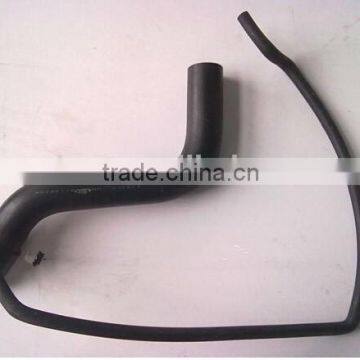

High Pressure automotive handmade hot water resistant silicone rubber hose
- 300000 Piece / Pieces per Month
- Tjianjing
- T/T
You May Like
-
Manufacturer 1/4 inch 500 PSI oil resistant synthetic rubber air hose
-
OEM handmade 1 inch colored silicone rubber air hose
-
OEM handmade 1 inch resistant colored silicone air hose
-
OEM High Pressure automotive hot water resistant rubber hose
-
Non smell Wire Spiral and fiber braid flexible pvc hose,silicone pvc clear hose,4 inch pvc hose
-
OEM handmade 1 inch colored 90 degree silicone rubber air hose
Product Details
| Place of Origin | Hebei, China | Brand Name | CMAX |
Product Description
Quick details
| Product Category: | Hydraulic Rubber Hose | Business Type: | Manufacture | Material: | Synthetic Rubber & Steel Wire |
| Inner Tube: | Nitrile | Reinforcement: | Two braided layer of high tensile steel wire | Cover: | Neoprene Blend |
| Temperature range: | -40°C to 120°C | Surface option: | Smooth or Cloth Wrapped surface | Color Option: | Black, Red, Blue, Yellow and so on |
| Applications: | Coal / Mining / Agricultural machine / |
Packaging & Delivery
| Packaging Detail: | fuel line hoses packing(5/16 inch) 80000m/container size:long 591 cm,wide234cm,high238cm. G.W:13TON |
| Delivery Detail: | 15 Days |
Construction:
Tube:Rubber with high performance on oil resistance
Reinforcement: High tensile braid of fibers
Cover: Synthetic rubber with excellent aging resistance and weather ability. Smooth surface, concave-convex surface and cloth covered
Temparature Range:-40°C~+110°C
Specification:
NO | I.D | Refer to O.D | Working pressure | Burst pressure | approximate Weight | |||||
(inch) | (mm) | (inch) | (mm) | MPa | Psi | MPa | Psi | kg/m | lbs/ft | |
1 | 1/8 | 3.2±0.2 | 0.35 | 9±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.078 | 0.12 |
2 | 5/32 | 4±0.2 | 0.4 | 10±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.092 | 0.14 |
3 | 3/16 | 4.8±0.2 | 0.43 | 11±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.108 | 0.16 |
4 | 1/4 | 6.3±0.3 | 0.5 | 12.7±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.134 | 0.2 |
5 | 5/16 | 8.0±0.3 | 0.56 | 14±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.147 | 0.22 |
6 | 3/8 | 9.5±0.3 | 0.63 | 16±0.4 | 2.06 | 300 | 8.27 | 1200 | 0.182 | 0.27 |
7 | 15/32 | 12±0.3 | 0.75 | 19±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.238 | 0.35 |
8 | 1/2 | 12.7±0.4 | 0.78 | 20±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.262 | 0.39 |
9 | 5/8 | 16±0.4 | 0.94 | 24±0.5 | 1.03 | 150 | 4.12 | 600 | 0.351 | 0.52 |
10 | 3/4 | 19±0.4 | 1.13 | 28.8±0.5 | 1.03 | 150 | 4.12 | 600 | 0.515 | 0.77 |
11 | 1 | 25.4±0.5 | 1.38 | 35±0.6 | 1.03 | 150 | 4.12 | 600 | 0.637 | 0.95 |
Our Service
We can offer OEM Services
We can provide FREE SAMPPLE for our customers
We can crimp hose assembly for our customers.
We welcome clients to visit our factory leading to better understanding of our production.
FAQ
Q1. Do you produce smooth or cloth wrapped cover?
A. Both, we can produce both cover, which depends on customer’s request.
Q2. Do you produce embossed marking?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, we have been offering OEM services for 20 years.
Q4. Does your product have different color hose?
A. Yes, we currently provide black, grey, red, blue and yellow.
Q5. How long does my order take to be delivered?
A. It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
