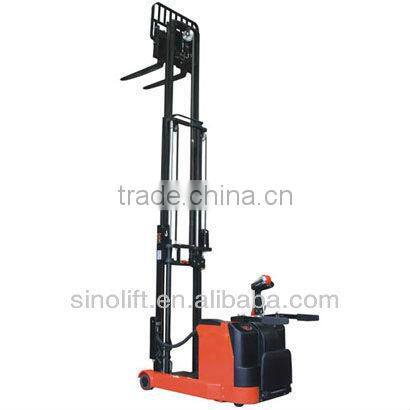

CQD-Y Reach Stacker
Negotiable
/ Unit
1 Unit(Min.Order)
- 0 per Month
- SHANGHAI
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | SINOLIFT | Model Number | CQD-Y |
Product Description
Specifications
The fork can be up/down forward/backward and tilt.
| Identification | 1.2 | Model | CQD1.3-16Y | CQD1.3-18Y | CQD1.3-30Y | CQD1.3-37Y | CQD1.3-45Y | |
| 1.3 | Drive:electric(battery or mains),diesel, petrol,fuel gas,manual | Electric | ||||||
| 1.4 | Type of operation:hand, pedestrian, stand ing, seated, order-picker) | Pedestrian | ||||||
| 1.5 | Load Capacity /rated load | Q (t) | 1.3 | |||||
| 1.6 | Load center distance | C mm | 500 | |||||
| 1.8 | Load distance, centre of drive axle to fork | X mm | 388 | 418 | ||||
| 1.9 | Wheelbase | y mm | 1255 | 1355 | ||||
| Weights | 2.1 | Service Weight | Kg | 1820 | 1850 | 2020 | 2235 | 2460 |
| 2.2 | Axle loading, laden front/rear | Kg | 1480/1640 | 1500/1650 | 1580/1740 | 1680/1855 | 1770/1990 | |
| 2.3 | Axle loading, unladen front/rear | Kg | 1350/470 | 1370/480 | 1495/525 | 1655/580 | 1820/640 | |
| Wheels£¬ Chassis | 3.1 | Tyres:solid¡¢ rubber, superelastic, pneumatic, polyurethane) | polyurethane | |||||
| 3.2 | Tyre size, front | 230x70 | ||||||
| 3.3 | Tyre size, rear | 210x85 | ||||||
| 3.4 | Additional wheels(dimensions) | 150x54 | ||||||
| 3.5 | Wheels, number front/rear(x=driven wheels) | 1x+2/4 | ||||||
| 3.6 | Track width,front | b10(mm) | 620 | |||||
| 3.7 | Track width,rear | b11(mm) | 993 | |||||
| Basic Dimensions | 4.1 | Mast/fork carriage tilt forward/backward | degree | 2/4 | ||||
| 4.2 | Lowered mast height | h1(mm) | 2075 | 2275 | 2095 | 1850 | 2075 | |
| 4.3 | Free lift | h2(mm) | - | - | 221 | 1205 | 1490 | |
| 4.4 | Lift height | h3(mm) | 1560 | 1760 | 2960 | 3660 | 4460 | |
| 4.5 | Extended mast height | h4(mm) | 2145 | 2345 | 3940 | 4625 | 5430 | |
| 4.9 | Height of tiller in drive position min./max. | h14(mm) | 984/1365 | |||||
| 4.15 | Lowered height | h13(mm) | 40 | |||||
| 4.19 | Overall length | l1(mm) | 2025(2225) | 2125(2325) | ||||
| 4.2 | Length to face of forks | l2(mm) | 867 | 937 | ||||
| 4.21 | Overall width | b1(mm) | 1104 | |||||
| 4.22 | Fork dimensions | s/e/l(mm) | 35/100/950(1150) | |||||
| 4.25 | Width over forks | b5(mm) | 200~720 | |||||
| 4.26 | Distance between supports arms/loading surfaces | b4(mm) | 784 | |||||
| 4.28 | Reach distance | l4(mm) | 550 | 580 | ||||
| 4.32 | Ground clearance, center of wheelbase | m2(mm) | 59 | |||||
| 4.33 | Aisle width for pallets 1000x1200 crossways | Ast(mm) | 2307 | 2436 | ||||
| 4.34 | Aisle width for pallets 800x1200 lengthways | Ast(mm) | 2355 | 2478 | ||||
| 4.35 | Turning radius | Wa(mm) | 1450 | 1600 | ||||
| 4.37 | Length across wheel arms | l7(mm) | 1075 | 1175 | ||||
| Performance Data | 5.1 | Travel Speed, laden/unladen | km/h | 5.4/6.0 | 6.0/7.0 | |||
| 5.2 | Lift speed, laden/unladen | mm/s | 85/122 | 110/165 | ||||
| 5.3 | Lowering speed, laden/unladen | mm/s | 125/80 | 300/220 | ||||
| 5.8 | Max.gradient performance, laden/unladen | % | 5/8 | |||||
| 5.1 | Service brake | Electromagnetic | ||||||
| E-Motor | 6.1 | Drive motor rating s2 60min | kw | 1.5 | ||||
| 6.2 | Lift motor rating at s3 15% | kw | 2.2 | 3 | ||||
| 6.3 | Battery acc. toDIN, no | 3PzS | 5PzS | |||||
| 6.4 | Battery voltage, norminal capacity | V/Ah | 24/270 | 24/400 | ||||
| Others | 8.1 | Type of drive control | MOSFET Control | |||||
| 8.4 | Sound level at driver's ear acc.to EN12053 | dB(A) | 67 | |||||
Power Reach Stacker
SINOLIFT power reach stacker is newly designed available within our range with capacity 1300kg with lift heights from 1.8m up to 4.5m. Our stacker is configured to provide the optimum chassis/battery/mast combination according to the Ergonomic requirements of the application.
With ZF driving wheel from Germany, makes it more powerful.
The fork can be up/down forward/backward and tilt.
Drive motor: ZF from Germany
Controller: Curtis
Hydraulic motor: Imported from Europe
Residual Capacity at different lifting height
1KG=2.2LB 1INCH=25.4MM
Up to h3 mm | ACTUAL CAPACITY (Q) kg | |
2500 | 1300 | 700 |
3000 | 1000 | 600 |
3700 | 900 | 500 |
4500 | 800 | 400 |
Load centre distance (C)mm | 600 | 700 |
