Home > Products > 5. Electric pallet Truck > CBE-Z Series Electric Pallet Truck Battery Chargers
CBE-Z Series Electric Pallet Truck Battery Chargers
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | SINOLIFT | |
| Model Number | CBE-Z Series Electric Pallet Truck | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
CBE-Z Series Electric Pallet Truck Battery Chargers1.Capacity:3000/3500/5000kg
2.Lifting Height (Min/Max):90-205/85-185,etc.
CBE-Z Series Electric Pallet Truck Battery Chargers
1)Features
1.Can be widely used in distribution centers, factories, supermarkets, warehouses and freight terminals.
2.Compact design combines with new technology, Safe, fast and easy operation.
3.Electric/hydraulic system offers a clean, noise free environment.
4.Variable speed controller for maximum efficiency, Power unit and drive wheel made in Europe.
5.Equipped with an electromagnetic type fail-safe braking system.
2)Specification Date
| Model | CBE-30Z | CBE-35Z | CBE-50Z | |
| load capactiy | kg | 3000 | 3500 | 5000 |
| Load center | mm | 550 | 600 | 600 |
| Lifting Height (Min/Max fork height) | mm | 90-205 | 85-185 | 150-250 |
| Single fork width | mm | 180 | 170 (180) | 180(230) |
| Fork width * | mm | 550/685 | 550/685 | 1200/685 |
| Fork length | 1150/1200 | 1150/1200 | 1150/1200 | |
| Travel speed (laden/unladen) | km/h | 7.0/6.0 | 5.0/4.5 | 3.5/2.0 |
| Lifting speed (laden/unladen) | mm/s | 18/20 | 18/20 | 15/30 |
| Lowering speed (laden/unladen) | mm/s | 20/18 | 20/18 | 20/18 |
| Driving wheel | mm | φ250*90 | φ250*90 | φ260*150 |
| Load wheel | mm | φ80*68 | φ80*68 | φ100*100 |
| Balance wheel | mm | φ125 | φ125 | φ100*45 |
| Drive motor | w | 1500 | 1200 | 1800 |
| Pump power pack | w | 2200 | 3000 | 3000 |
| Battery | Ah | D-240 | D-240 | D-420 |
| Operator type | Walkie (standon platform) | Walkie (standon platform) | Walkie (standon platform) | |
| Control system | CURTIS AC | CURTIS AC | CURTIS AC | |
| Min.Turning radius | mm | 1200 | 1200 | 1300 |
| Overall dimensions | mm | 2100*800*1580 | 2050*780*1480 | 2250*880*1400 |
| Self weight | Kg | 750 | 550 | 1360 |

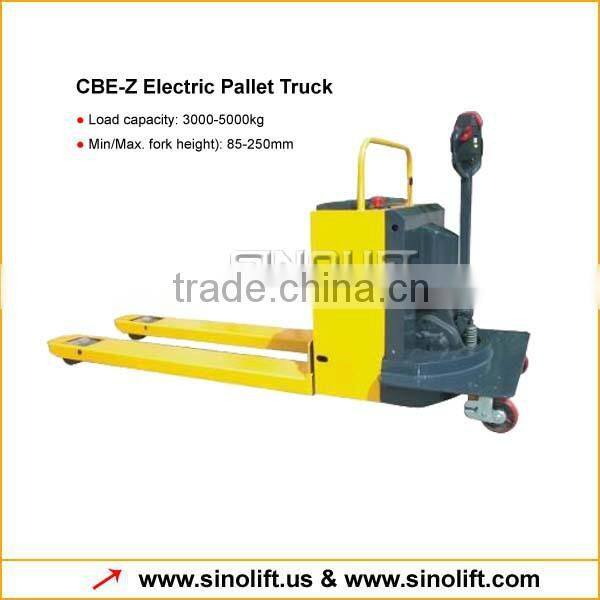

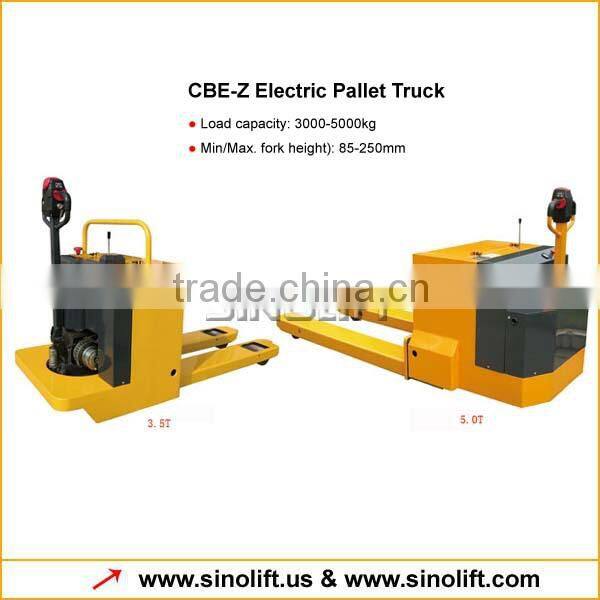

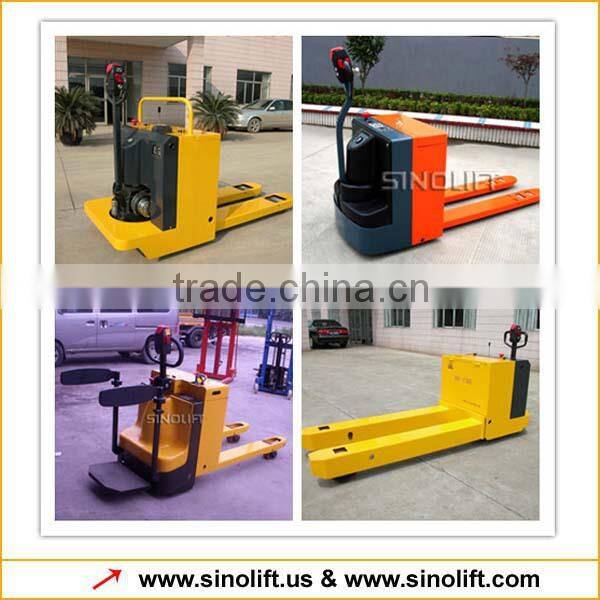

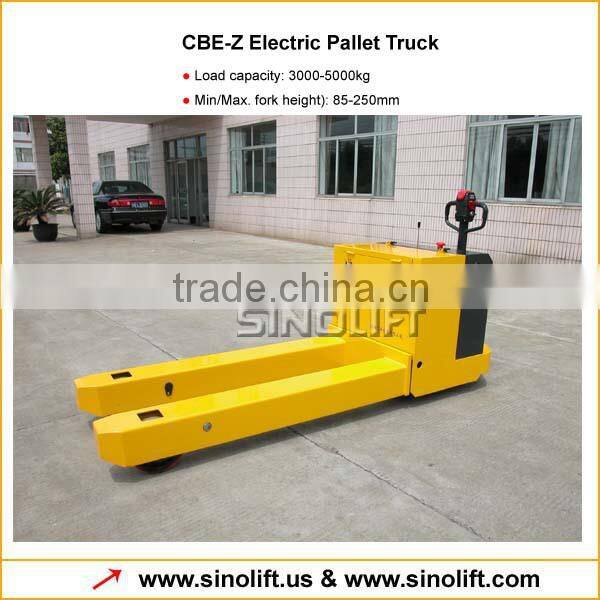

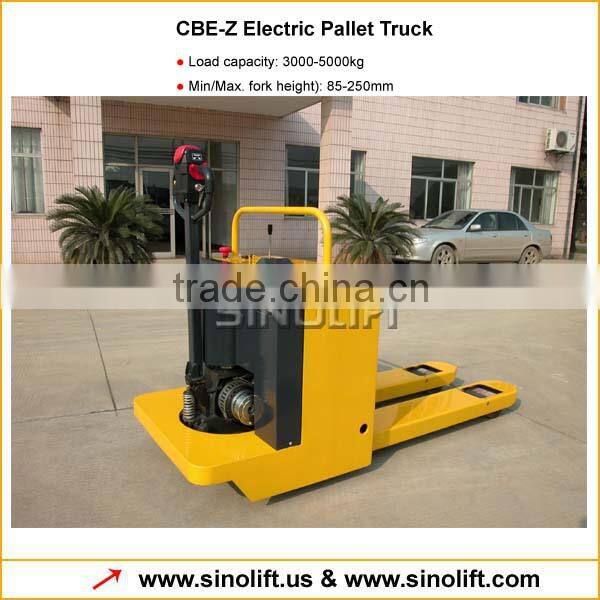

3)Photos
4)Workshop
5)Certificate
Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.
6)Terms and Service
| Lead time | 3-4 weeks |
| Packing | Standard export fumigated wooden pallet, foam rubbers |
| Payment term | T/T payment in advance; L/C at sight |
| Lead term | FOB Shanghai or CFR/CIF |
| Warranty period | 12 months |
| Shipping method | by sea or air; by express |
7) Warranty Policy and Service Program
SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items
8) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
