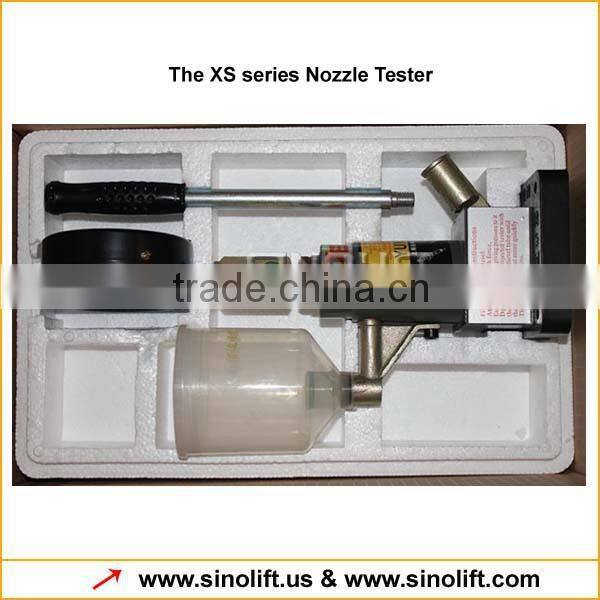

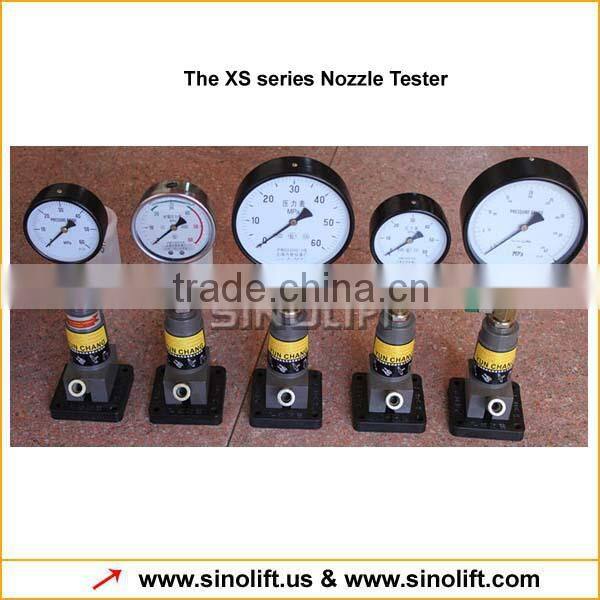

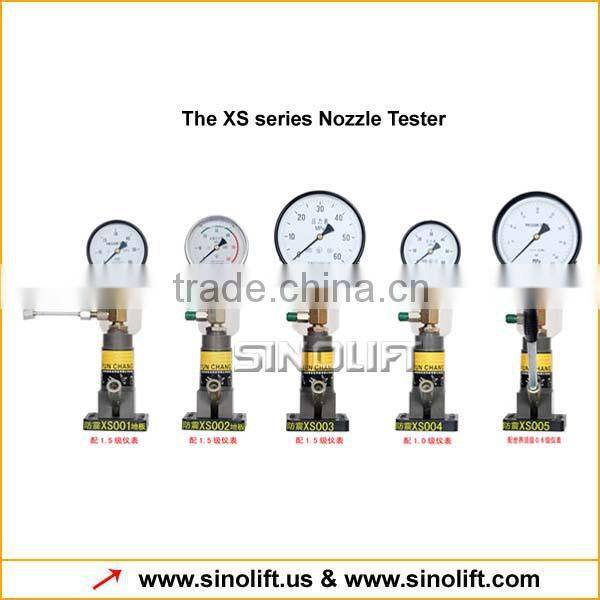

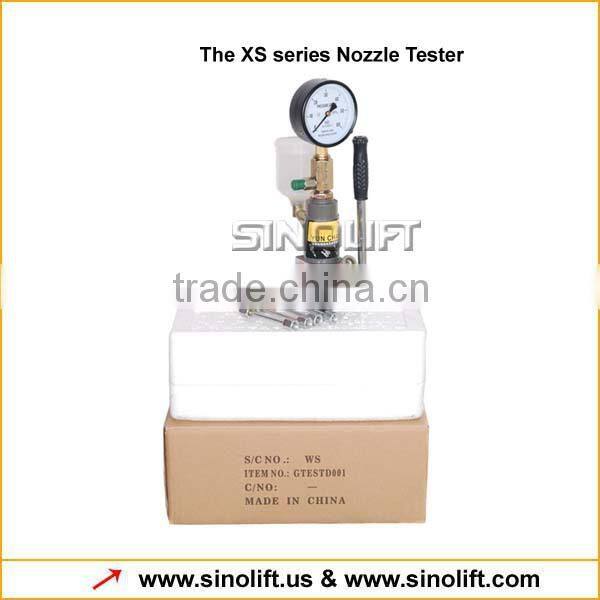

Sinolift-XS Diesel Nozzle Tester With CE

Sinolift-XS Diesel Nozzle Tester with CE

1) Features

It is used to adjust and calibrate the injection nozzle opening pressure and to carry out leakage, spray pattern and chatter characteristic tests.
For nozzle size R, S and T.
In basic design with 0-40 Mpa (0-400 bar) pressure gauge.
In conjunction with a specially ordered pressure gauge, this tester can also be used for testing light crude oil injection valves.

Model No.: XS001

pressure gauge range (Mpa):0-40

overall dimensions (mm): 390*260*180

capacity of fuel tank (L):3.5

largest pressure tested (Mpa):40

net weight (kg): 5.1

2) Profile

The XS series Nozzle Tester was reviewed by state intellectual Property Office of the People’s Republic of China. According to the Implementing Regulations of the Patent law of China. Our company have been awarded the three patents: Invention Patent, Utility Type Patents and the Appearance Design Patent.

The XS series Nozzle Tester has been awarded the first prize for the National Award for Technological Invention and the Second prize for the National Award for Technological Innovation.

The XS series Nozzle is the core instrument for testing diesel engine’s fuel injectors. This high performance product is of high accuracy, user-friendly and have long operation lifetime. It also adopt compact design to ensure small size and light weight, With the aid of this tester, you can significantly improve your engine’s fuel efficiency while largely boost driving power, and say good-by to the polluted black smoke of your vehicle. In conclusion, this tester is a world-leading clean tech innovation and very welcomed by consumers. We believe it will be a good business opportunity for any potential partners.

3) Installation Guide

1) Sagety precaution

Being operated, the nozzle tester must be far away from flame or high temperature place , such as welding and so on.

2) Purpose of the nozzle tester

It is used to adjust and calibrate the injecting pressure, atomizing quality, injecting angle and

needle valve seas of nozzle of diesel engine in order to ensure excellent power and economic performance of diesel engine.

3) Main technical parameter of the nozzle tester

4) Performance of the nozzle tester

Block the joint where the nozzle is connected. Pump oil to a pressure -over 30 MPa. Then stop pump and watch the pressure descending from 30 MPa. It is less than 2 MPa. within 3 minutes.

5) Maintenance of the nozzle tester.

1.1 Calibrating fuel must be good quality light diesel deposited over 48 hours.

2.2 When filling fuel, filter it with silk-cloth, Do not fill the tank with unfiltered diesel.

3.3 Cover the tester with anti-dust cover after testing.

6) Experiment of Atomizing Quality

Watch the atomizing quality of fuel injecting. The fuel grain should be tiny, well distributed. No fuel current (or drop) seen with eyes. No obvious fuel stain appears if it is injected on the oil absorbing paper. Color of fuel stain from center to outer circle should become lighter and form well distributed circle. Pumping fuel action should be quick. There is no fuel drop or fuel dropping after pumping fuel.

Atomizing should be correct. Its taper angle should be within specified range.

7) Testing of injection Pressure of injector assembly.

Turn the injector assembly tested onto the nozzle joint tightly with high pressure pipe, then do the experiment and adjustment of pumping fuel. When pumping fuel, watch the reading on the pressure gauge. At the same time, compare it with the specified pressure range of the injector assembly to see if it is normal. If the pressure is too high or too low, adjust the pressure spring of injector assembly.
