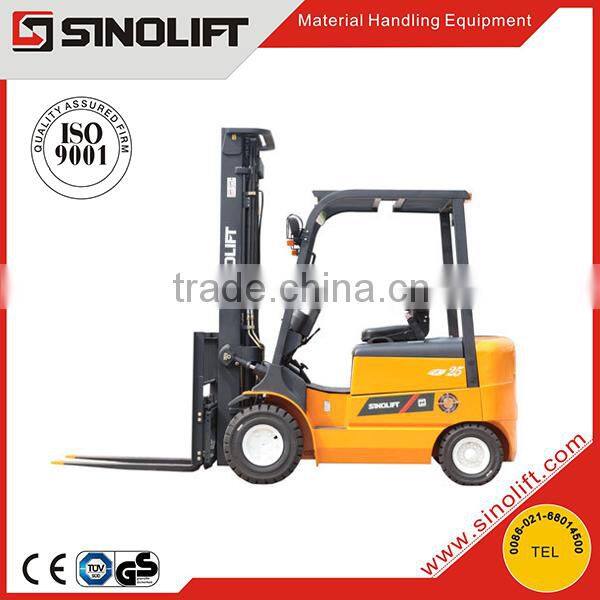

Hot - CPD-J Series Four Wheels 1-3T Electric Forklift
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
HOT! Sinolift CPC(D) Series 2-3.5t Load Capacity Diesel Forklift
-
HOT! Sinolift CPCD Series 4-5t Load Capacity Heavy Duty Diesel Forklift
-
HOT! Sinolift L Series 2-3.5T Gasoline/ LPG Forklift
-
Hot - G Series 2.0-3.5T Gas LPG Dual Fuel Forklift Truck
-
HOT! Sinolift Advanced Super Appearance G Series 2.0-3.5T Diesel Forklift
-
Hot - CQD-F Battery Operating Electric Reach Truck
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | SINOLIFT Electric Forklift | Model Number | Hot - CPD-J series Four Wheels 1-3T Electric Forklift | |
| Type | Other, Electric Forklift | Power Souce | AC Motor | |
| Rated Loading Capacity | 1000~3000kg Electric Forklift | Max. Lifting Height | 4270mm Electric Forklift | |
| Min. Lifting Height | 2040mm Electric Forklift | Fork Length | 920~1070mm Electric Forklift | |
| Fork Width | 120~125mm Electric Forklift | Overall Dimensions | 2481*1265*2040mm Electric Forklift | |
| Certification | GS,TUV,CE Electric Forklift | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Hot - CPD-J series Four Wheels 1-3T Electric Forklift
1) Features Electric Forklift
Versatility of use due to compact design and minimal operating space requirements. Compact dimensions combined with superb maneuverability.
High stability, both when stationary and cornering, due to long wheelbase, low centre of gravity and wide tyres.
Economy of operation, resulting from minimized maintenance costs, e.g. fully enclosed 3 phase AC asynchronous motors with high degree of efficiency maintenance free life.
2) Specification Data Electric Forklift
| Manufacturer | SINOLIFT AC 1.5T-3.0T Electric Forklift | |||||||
| Model | CPD15J | CPD20J | CPD25J | CPD30J | ||||
| Power type | Battery | |||||||
| Rated capacity | kg | 1500 | 2000 | 2500 | 3000 | |||
| Load center | mm | 500 | 500 | 500 | 500 | |||
| Lift height | mm | 3000 | 3000 | 3000 | 3000 | |||
| Free lift | mm | 162 | 140 | 140 | 145 | |||
| Fork size L×W×T | mm | 920×120×40 | 1070×120×40 | 1070×120×45 | 1070×125×45 | |||
| Fork outside spread (Min./Max.) | mm | 200/980 | 240/1020 | 240/1020 | 260/1100 | |||
| Front ovehang | mm | 436 | 484 | 484 | 454 | |||
| Overall dimensions | Length to face of fork | mm | 2056 | 2349 | 2381 | 2481 | ||
| Overall width | mm | 1090 | 1265 | 1265 | 1265 | |||
| Mast lowered height | mm | 1995 | 2040 | 2040 | 2040 | |||
| Mast extended height | mm | 4038 | 4270 | 4270 | 4270 | |||
| Overhead guard height | mm | 2162 | 2125 | 2125 | 2125 | |||
| Turning radius | mm | 1820 | 2050 | 2100 | 2230 | |||
| Travel speed (no load / full load) | km/h | 15/13 | 14/12 | 14/12 | 14.5/12 | |||
| Lifting speed (no load / full load) | mm/sec | 400/300 | 420/300 | 420/300 | 420/280 | |||
| Max. pull force (full load) | KN | 6.5 | 8 | 8 | 10 | |||
| Wheelbase | mm | 1250 | 1500 | 1500 | 1630 | |||
| Ground clearance (no load / full load) | Mast M | mm | 105/95 | 105/85 | 105/85 | 105/85 | ||
| Fram F | 105/95 | 140/120 | 140/120 | 140/120 | ||||
| Battery | Model | D-440B | 7DB700 | 7DB700 | 5VBS500 | |||
| Voltage | v/Ah | 48/440 | 48/700 | 48/700 | 80/500 | |||
| Battery Weight | kg | 760 | 1180 | 1180 | 1450 | |||
| Controller | L | Italian SME AC separate excitation controller | ||||||
3) Photos Electric Forklift
4)Workshop Electric Forklift

5) terms and service Electric Forklift
6) Warranty Policy and service program Electric Forklift
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 24 months warranty on major components and 180 days on wearable items.
7) Why choose us? Electric Forklift
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
7- Most parts are available, no matter assembly or small components, because it’s produced by Sinolift itself. You don’t need to replace any assembly when its components are damaged, which will help to save 90% of the replacements parts cost sometimes.
8- Fast. Fast delivery time, Fast service and communication. Within one hour Sinolift will respond and within 3 hours we will offer the solution. Less than 15 days standard delivery time for electric products.
9- We don’t ask more though we do much better! We offer reasonable price level!
10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
