Prepainted Steel Coils 25 Minimum Factory Direct
- Any China Port
- T/T
You May Like
Product Details
| Standard | AISI, ASTM, BS, DIN, GB, JIS | Thickness | 0.15-1.5mm | |
| Place of Origin | Jiangsu, China | Brand Name | Huiye | |
| Model Number | CGCC | Type | Steel Coil | |
| Technique | Cold Rolled | Surface Treatment | Coated | |
| Application | Other, Home electronic industry | Special Use | High-strength Steel Plate | |
| Width | 600-1250 mm | Length | as customers'requiremnet |
Product Description
Specifications
prepainted coil1)thick:0.15-1.5mm
2)width:600-1250mm
3)All Ral colors

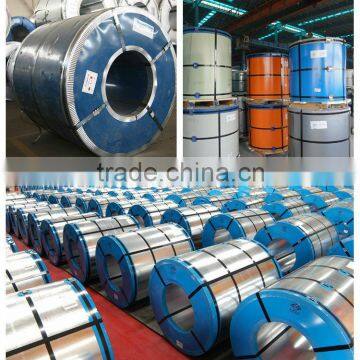

Prepainted Steel Coils
Product Description:
With GI and GL as the substrate, after surface pre-treatment, paint coating, baking and cooling, an organic protective film is formed on the steel substrate It has strong durability, corrosion resistance, decoration and formability, widely used in construction, household appliances, solar energy, transportation and other industries
| Standard | JIS G3322 CGLCC ASTM A755 CS-B | Surface coating color | RAL colors |
| Back side coatingcolor | Light grey ,white and so on | Package | export standard package or as request |
| Type of coating process | Front: double coated&double drying. Back: double coated&double drying, single-coated&double drying | ||
| Type of substrate | hot dipped galvanzied, galvalume, zinc alloy, cold rolled steel, aluminum | ||
| Thickness | 0.16-1.2mm | Width | 600-1250mm |
| Coil Weight | 3-9Tons | Inside Diameter | 508mm Or 610mm |
| Zinc Coating | Z50-Z275G | Painting | Top: 15 to 25 um (5 um + 12-20 um) back: 7 +/- 2 um |
| Coating introduction | Top paint: PVDF, HDP, SMP, PE, PU | ||
| Prime paint: Polyurethane, Epoxy, PE | |||
| Back paint: Epoxy, Modified polyester | |||
| Productivity | 150,000Tons/year | ||
| Production core strengths | |||
| Resistance to acid rain: | |||
| Coating protection mechanism: It is very easy to form acid rain in the high level of industrial emissions or pollutants environment. Acidic penetration is formed in the surface of pre-painted steel, and accelerates the corrosion, forming blistering, peeling and so on. | |||
| Resistance ultraviolet rays: | |||
| Coating protecting Mechanism: pre-painted sheet in ultraviolet or strong sunlight conditions, the coating will exhibit chalking degeneration, manifested as discoloration and loss of gloss, lose paint quickly. | |||
| Resistance to humid heat: | |||
| Coating protecting mechanism: in hot and humid environments, high osmotic pressure of water vapor accelerates penetration, forming the degeneration of painting film, then the corrosion of the substrate, with the phenomenon of bubbles and peeling. | |||
| Resistance to low temperature: | |||
| Coating protecting mechanisms: most of the paint can keep stable processing performance above 0 degree, but at alpine region, the temperature will be below 20-40 degree, normal paint will become brittle,bend cracking, or even lose paint, thus protection function is lost totally. | |||
Our Factory
Jiangsu huiye steel sheet co., ltd, have some produce lines, one for galvanized steel sheet in coil, second for galvalume steel sheet in coil, third for color prepainted steel sheet in coil, we obtain ISO 9001 certification. There are our branch factories in Shanghai city, Xi'an city,Foshan city, Chengdu city, we also held offices on many other cities. Not only we are a manufacturer specialized in producing steel plate in coil and steel lite, but also we engage in trade and agent for big steel factory of China, such as Baogang, Laigang, Shagang, Taigang and etc. We also have a export and import right for steel sheet and some related products. Our products have sold to Chile, Brazil,south africa, Chile, Taiwan, and some African countries! We have got our clients’ faith with nice quality and best service! Welcome all friends from all the word to our corporation for guiding work and talking business.
