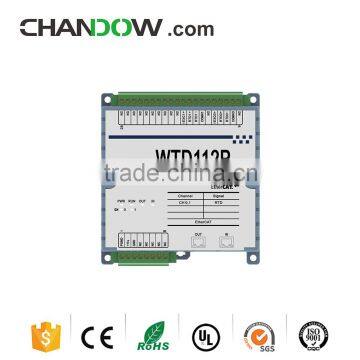

Chandow WTD112P EtherCAT I/O Module

FOB Price

US$ 80 - 120 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Chandow
Model Number	WTD112P

Our Advantages

Model	WTD 112P	WTD 114P	WTD 118X	WTD 124X
Analog input parameter
Channel	2Ch Differential	4Ch Differential	8 Ch Differential
Resolution	24bit		16bit
Sampling Rate	60Hz
Input Voltage			±10V, ±5V,±2.5V,±1V,±0.5V,±0.1V,±20mV
Input Current			±20mA,+4~20mA
Input Sensor	Pt100(IEC),Pt100(JLS),Pt1000		J,K,T,E,R,S,B Thermocouple
Isolation Voltage	3KV Vdc
Analog Output Parameter
Channel				4Ch Differential
Resolution				12/14/16bit
Output Voltage				±10V
Output Current				0~20mA/4~20mA(Differential)
Isolation Voltage				3KV Vdc
Board
OS	FreeRTOS
Processor	STM32(Cortex-M3)
CPU Clock	120MHz
LED Indicator	Power,Communication,Channel LED
Watch Dog	System & Communication
Protection	Over Current,Over Voltage,Over temperature,Anti-reverse
Communication	2*RJ45(Daisy Chain,Bypass Supported)
Firmware Update	MiniUSB Inside
Protocol	EtherCAT
Structure and Parameter
Case	ABS Plastic
Dimension	9810647mm
Lead Rail	DIN35mm
Power Input	10~48V(24 Vdc Rated)
Power Consumption	V~2.5W(24Vdc)	~2.7W(24Vdc)	~2.6W(24Vdc)
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃
Humidity	10~90%(None Condense)
Weight	~0.28KG	~0.29KG	~0.29KG	~0.28KG
Certification	EMC(EN61000-6-2/4),UL
Customized Software	WTDUtility
