American Fiberglass Products Fiberglass Covered Aluminum Wire
- SHANGHAI NINGBO
- T/T
You May Like
-
Thermal Class 180 / 200/ 220 Round Fiberglass Electric Wire
-
Stable Quality and Promotion Price Fiberglass Electric Aluminum Wire
-
240 Thermal Class Fiber Film Aluminum Wire
-
Stable Quality Fiber Glass Covered Round Flat Wire
-
Varies Motor Winding Wire Size Available
-
0.35mm Insulation Thickness Fiberglass Aluminum Wire
Product Details
| Place of Origin | Shanghai, China | Brand Name | ZOTO | |
| Model Number | ZY/XY | Type | Insulated | |
| Application | Other, transformer, transformer, motor, welder | Conductor Material | Other, Aluminum, aluminum/copper | |
| Conductor Type | Solid | Insulation Material | Enameled |
Product Description

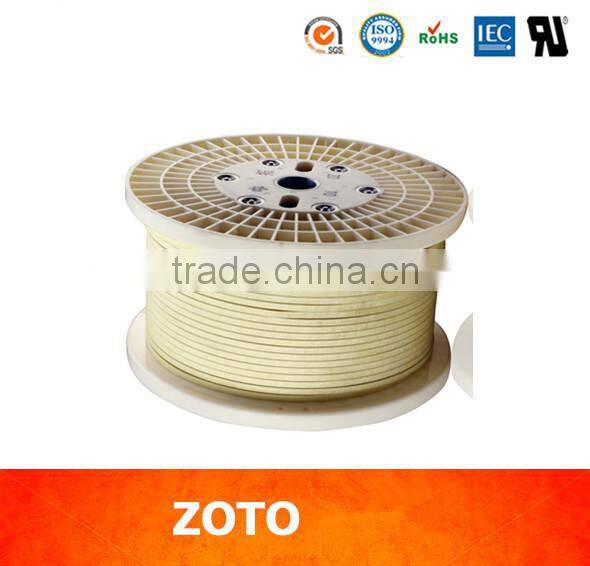

American fiberglass products fiberglass covered aluminum wire
1.Introduction: Fiberglass Film Wrapped Wire is the premium copper or aluminum wire to be wrapped with polyester film or polyimide film, then to be wrapped with single or double fiberglass. It should be impregnated incompatible insulating coatings of required thermal class,baked to make a whole between fiberglass, film and conductor. The product has high breakdown voltage and thermal classes of 130, 155, 180, 200. It is widely applied in reactors, transformers, electrical machines and other similar electrical instruments.
2.Standard: GB/T 7672-2008
3.Production Range:
Copper or Aluminum Rectangular Wire
Narrow size a: 0.30-5.60mm
Wide size b: 2.00-16.00mm
Copper or Aluminum Round Wire
Diameter: Φ1.7-Φ6.0mm
If specification is out of range, please don’t hesitate to contact us.
4.Material:
Aluminum rectangular wire should conform to GB5584.3-2009, the resistivity (20℃) is no more than 0.0280Ωmm²/m
Copper rectangular wire should conform to GB5584.2-2009, the resistivity (20℃) is no more than 0.01724Ωmm²/m
Insulation thickness and breakdown voltage are as follows,
Name | Insulation Thickness/mm | Deviation | Minimum Breakdown Voltage/V |
Fiberglass Film Wrapped Wire | 0.20 | ±15% | 2500 |
0.30 | -15% | ||
0.40 | 5000 | ||
0.50 | |||
0.60 | |||
0.70 | 6000 | ||
0.80 | |||
0.90 |
Fiberglass film wrapped wire is bended on broad side and narrow side with the following rods.
Bending | Rod Diameter | |
Broad Side | ≤8.00 | 10*Broad Side Size |
Broad Side | >8.00 | 15*Broad Side Size |
Narrow Side | All specifications | 10*Narrow Side Size |
Enameled round aluminum wire
| Enameled flat aluminum wire
|
Enameled round copper wire
| Enameled flat copper wire
|
Non Woven Cloth/ Polyester Film covered wire
| Polyimide Film Wrapped wire
|
Film Wrapped enameled wire
| NOMEX Paper covered wire
|
Fiberglass Film Wrapped wire
| Kraft Paper Wrapped wire
|

1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Shanghai City, China, near Hongqiao airport. You can fly to Hongqiao airport or Pudong airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A: "Quality is priority. ZOTO WIRE people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained BV, Intertek, SGS authentication.
5.Q:Whats your mainly products?
Our mainly products are
Rectangular Enameled wire/ Round Enameled wire/
Ultra Fine Rectangular Enameled wire/NOMEX paper wrapped wire/
Kraft paper wrapped wire/ Polyester film or Kapton covered wire/
Fiber glass wrapped enameled wire/ Electrical rectangular wire/
Macromolecule enameled wire, etc.
