DIN345 Roll Forged Morse Taper Shank Drill Bits Set
- Shanghai/Ningbo
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TONGYU | |
| Model Number | TY10-98-Taper Shank Drill Bits Set | Type | Twist Drill Bit | |
| Material | High Speed Steel | Use | Metal Drilling |
Product Description
Specifications
Taper Shank Drill Bits Set1.Guaranteed hss raw material.
2.Strict heat treatment
3.Roll forged .

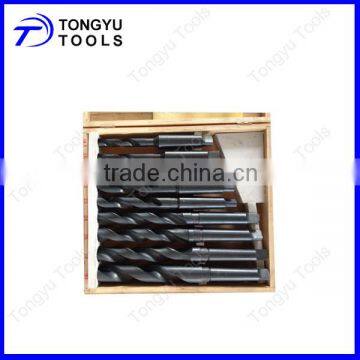

DIN345 Roll Forged Morse Taper Shank Drill Bits Set
Specification:
| 1. Standard: | DIN345 |
| 2. Material: | HSS 4241(W4Mo2Cr4V), HSS 4341(W4Mo3Cr4V), HSS 6542(W6Mo5Cr4V2) |
| 3. Hardness: | HSS4241: HRC59-61, HSS4341:HRC63-64, HSS 6542:64-65 |
| 4. Processing: | Roll forged |
5. Point angle | 118 degree |
6. Surface finishing: | Black Oxide |
| 7.Application: | For drilling cast steel, malleable iron, sintered metal, non-ferrous metal. |
| 8. Size: | 14.5, 16, 18, 20, 22, 24, 26, 28, 30mm, one piece each size, packed in a wooden case. |
| 9. Package: | 10 sets packed in one outer carton, carton size: 500*230*500mm |
The quality of HSS tools are basically decided by HSS raw material and heat treatment. We can keep a strict control of these procedure.
Need more products? Just click into the homepage of our website.
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!
