Super Bright 0.2W 2835 SMD LED White Color for Lighting
- Shanghai or Ningbo
- T/T D/P D/A Money Gram Credit Card PayPal
You May Like
-
ANNUAL PROMOTION! High Brightness 0.2W 2835 SMD LED White Color, ATI Factroy 3 Years Warranty
-
Super Bright Smd 2835 Led Pure White 20-23lm Hot Sale
-
uv Led, 1W to 500W UV LED, 280nm UV LED , 380nm UV LED, 390nm UV LED, 400nm UV LED, 410nm UV LED
-
uv Led 365nm, 1W to 100W With RoHs Approved
-
High Power uv Led, 1W, 3W, 5W, 20W, 50W, 100W
-
50w uv Led, 360, 400, 420nm
Product Details
| Model Number | ATI-2835SWW02-M | Chip Material | InGaN | |
| Emitting Color | Other, White Series | Luminous Intensity | 6000mcd | |
| Luminous Flux(lm) | 20-23 | Optical Attenuation(%) | 5 | |
| Power | Other, 0.2 | Power Dissipation | 0.006 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | 2800~7500 | |
| Operating Temperature(℃) | -30, 80 | Storage Temperature(℃) | 5, 30 | |
| Place of Origin | Jiangsu, China | Brand Name | ATI-2835 SMD LED | |
| Certification | CE |
Product Description

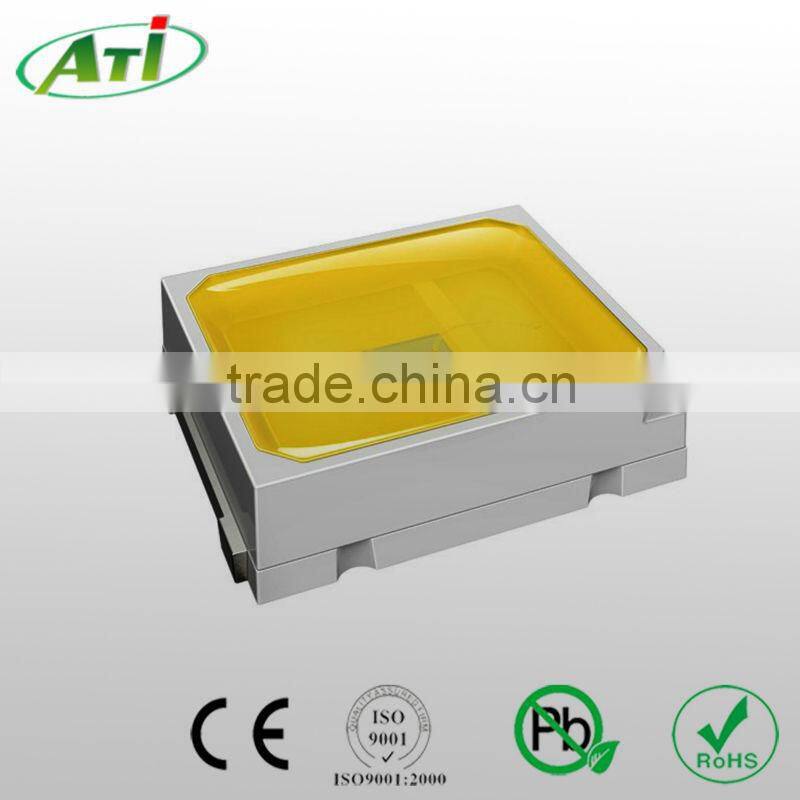

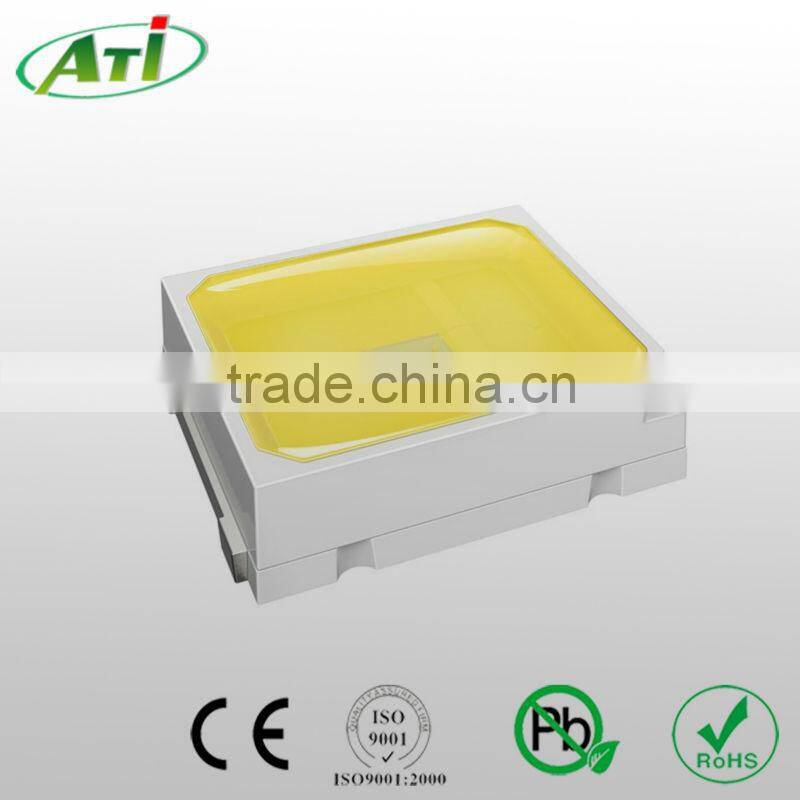

ATI Super Bright 0.2W 2835 SMD LED
Features—Our Products Stand out of Others
1.Over 12 years LED-producing experience as the vendor of Samsung,Haier,LG etc.
2.Big scale of producing makes sure that your purchase cost is lower but with higher quality.
3.Advanced production line guarantees stable quality and longer life span.
4.Use the most mature international well-known LED chip from Epistar as the light source, which can ensure the 2835 SMD LED high brightness and long lifetime, also can reduce the light decay.
5. Electrodes are made of copper with silver plating which leads to best quality and longer life span.

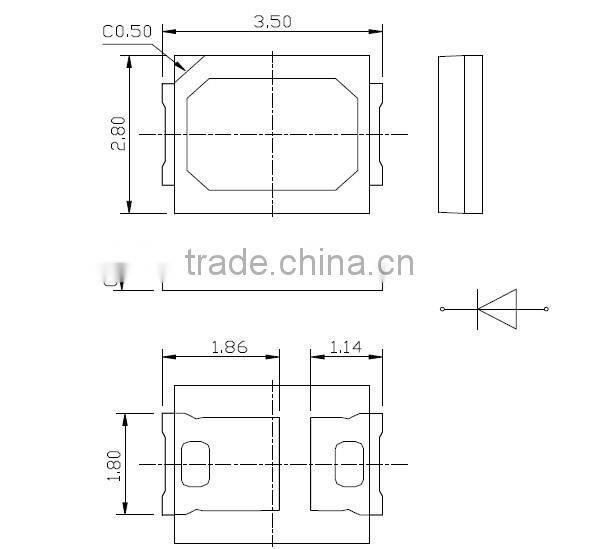

Product Exhibition—Show the Details for You
ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:
Part No | Emitting Color | Color Temp(K) | Luminous Flux(Lm) | VF(V) | IF(MA) | CRI(Min) |
ATI-2835SWW01-M | Warm White | 2800-3300 K | 10-13 Lm | 3.0-3.8V | 30 mA | 75 |
ATI-2835SNW01-C | White | 4500-5600 K | 10-13 Lm | 3.0-3.8V | 30 mA | 75 |
ATI-2835SCW01-M | Cool White | 5400-7700 K | 10-13 Lm | 3.0-3.8V | 30 mA | 75 |
ATI-2835SWW02-M | Warm White | 2800-3300 K | 20-23 Lm | 2.8-3.6V | 60 mA | 75 |
ATI-2835SNW02-C | White | 4500-5600 K | 20-23 Lm | 2.8-3.6V | 60 mA | 75 |
ATI-2835SCW02-M | Cool White | 5400-7700 K | 20-23 Lm | 2.8-3.6V | 60 mA | 75 |
Automatic SMD LED Production Line—High Quality Low Rejection
Perfect Product Package—We Care about Your Goods and You
LED Product Certificates—No Worry for Our Products
SMD LED Series —More Choices for Your Purchase
More Information, You Could Easily Contact Us
