chip cob 100 watt led, 100W high power LED, CE and RoHs approved
- Shanghai; Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Model Number | ATI-100WPWHB-HJ | Chip Material | InGaN | |
| Emitting Color | Natural White | Luminous Intensity | 11000 | |
| Luminous Flux(lm) | 11000 | Optical Attenuation(%) | 3 | |
| Power | Other, 100W | Power Dissipation | 100 | |
| Color Rendering Index(Ra) | 72 | Color Temperature | 6000~7000K | |
| Place of Origin | Jiangsu, China | Brand Name | ATI-chip cob 100 watt led | |
| Certification | CE |
Product Description

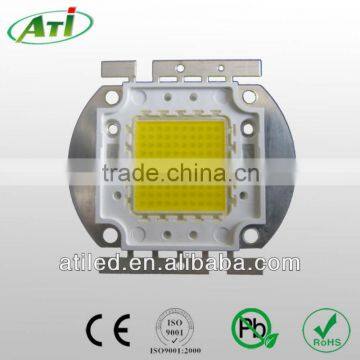

chip cob 100 watt led
Product parameters:
Parameter | Symbol | Conditions | Min. | Typ | Max | Units | Remark |
Luminous flux |
LM
| IF=3500mA | 11000 |
| 12000 | lm | 4500-10000K |
10000 |
| 11000 | 3500-4500K | ||||
10000 |
| 10500 | 2700-3500K | ||||
Color Temperature | Tc | IF=3500mA | 4500 | — | 10000 | K | Ra>75 |
3500 | — | 4500 | Ra>75 | ||||
2700 | — | 3500 | Ra>65 | ||||
Forward Voltage | VF | IF=3500mA | 30.0 | — | 36.0 | V | — |
Thermal Resistance Junction To Board | RJ-B | IF=3500mA | — | 10 | — | °C/W | — |
Reverse Current | IR | VR=5V | — | — | 10 | μA | — |
Viewing Angle | 2θ1/2 | IF=3500mA | — | 120 | — | Deg | — |
High power LED Series ------------1W to 300W
LED 100W package----- we care what you care
LED 100W Production Line----- Reliable quality assurance
LED 100W Certifications ------ You choose five star company.
More information, You can easily contact us.
...
