Home > Products > SUBLIMATION RINTING SOLUTIONS > 3.2m Sublimation Inkjet Printer With Double DX5 Printhead

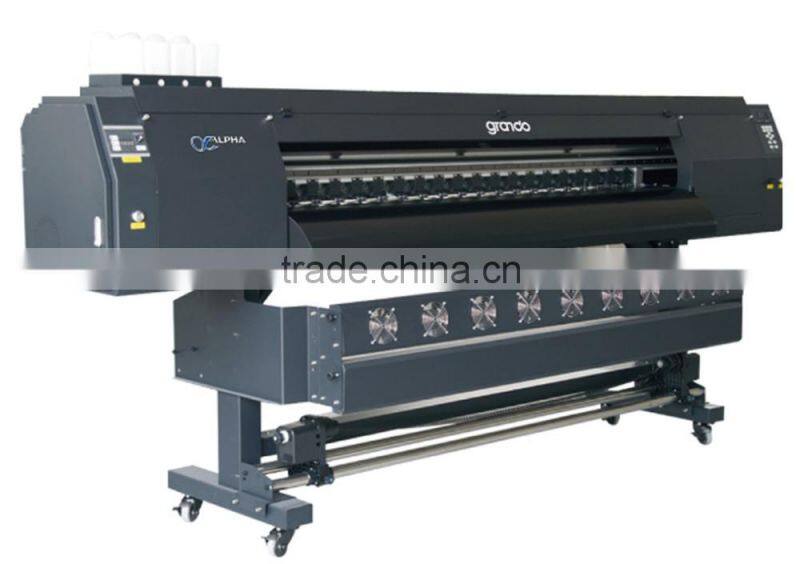

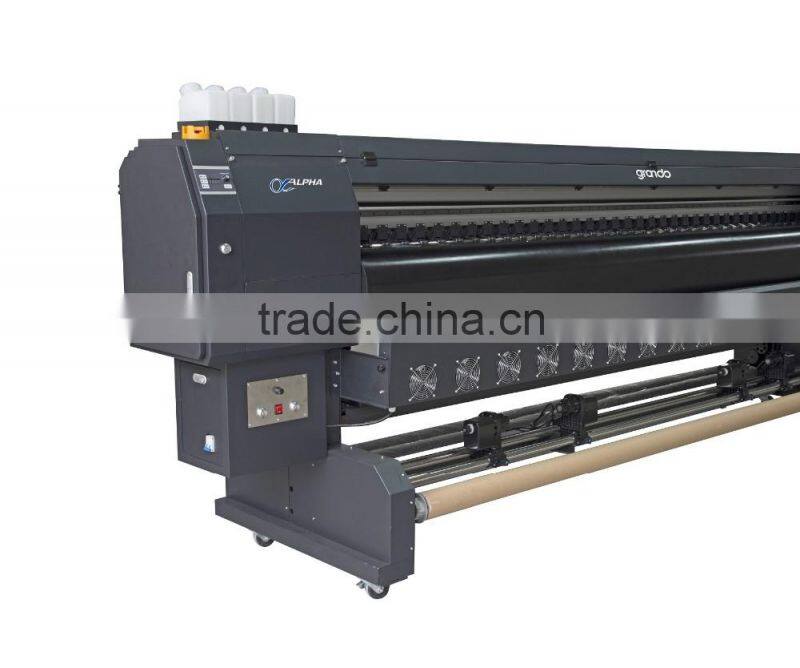

3.2m Sublimation Inkjet Printer With Double DX5 Printhead

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Flatbed Printer
Place of Origin	Shanghai, China	Brand Name	Grando
Model Number	GD-AE3200_TX2	Usage	Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer
Automatic Grade	Automatic	Voltage	110V/220V
Dimensions(LWH)	46209701560	Weight	650KG
Certification	CE Certification	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

SUBLIMATION PRINTER---------

----------- GD-AE3200-TX2

PRINTER INTRODUCTION

--- Focus on both of speed and quality

--- Max 3.2m printing width

--- Full support of top R&D group

--- 2 Epson DX5 print head

FEATURE

Piezoelectric Print Head Variable Ink Droplet

With double Epson DX5 print heads of parallelogram layout, as well as 1440 nozzles for each print head, performs excellently in higher speed and high quality output in 1440dpi.

Min 3.5pl Variable Ink Droplet

With excellent function to print with different ink droplet during

each printing, as well as the minimum 3.5pl ink droplet, will performs smooth and bright output.

Perfect Experience of Media Feeding & Rolling system

Adopts media fixing device to ensure smooth media feeding and rolling, at the meanwhile, the rolling bar is djustable anytime, and the media tension bar enables media to enter rolling bar smoothly and completely by enhancing the tension of media.

User Friendly Mechanical Design

Firm structure enables high speed printing without shake. Adjustable printer stand and feet ensures printer level. Meanwhile, emergency stop button and anticollision device assist customer to make sure printer’s stablity and performance in emergency situations.

Stable Bulk System Ensures Amazing Printing Speed

Ink cartridges of clamping slot type is easy to install and replace, bulk system ensures continuous smooth ink flow and stable printing. Besides, PWC device assists the bulk system to protects the nozzles from being blocked.

High Stablity, High Durablity

All-steel struction, igorous and precise manufacturing process even for a small screw, together with international brands such as THK, ensure the stablity and durablity.

SPECIFICATIONS

Model	GD-AE3200-TX2
Printing Method	Piezoelectric Print Head
Print Head	Double DX5 Head
Ink	Sublimation Ink
Max Printing Width	320cm
Printing Resolution	540dpi,720dpi,1440dpi
Printing Mode	2psss,3pass,4pass,6pass,8pass,12pass
Printing Speed	45m²/h
Ink Capacity	1000cc per color
Heating System Three Phase	Yes
Dry System	Standard intelligient infrared ay heating/fan system
Automatic Media Feeding/Rolling System	Standard Configuration
Environment	Temperature 15-32℃ Relative Humidity 35%-80%
Dimension(WDH)Weight	46209701560/650kg

APPLICATION

FACTORY SHOW

OUR SERVICE

24-Hour Online Service

Pre-Sales Service After-Sales Service

*Inquiry and consulting support * Training how to install the machine and training use

*Sample testing support * Engineers availa to service machine overseas

* View our factory * One year warranty

PACKING & DELIVERY

	Packing
	Size	46209701560/650kg
	Weight	650kg
	Details	on wooden
