Home > Products > Alpha Series Printer > Single DX5 1.6m direct to garment digital printer

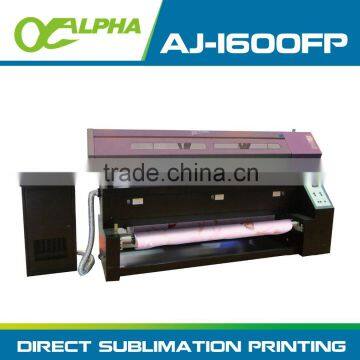

Single DX5 1.6m direct to garment digital printer

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port Shanghia`
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Flatbed Printer
Place of Origin	Shanghai, China	Brand Name	Alpha
Model Number	AJ-1600FP	Usage	Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer
Automatic Grade	Automatic	Voltage	110V/220V
Dimensions(LWH)	250012501245mm	Weight	350KG
Certification	CE Certification	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CHAMPION OF STABLE---------

----------- LONG TIME PRINTING

PRINTER INTRODUCTION

ALPHA Inkjet Printer presents dramatic progress in both quality and speed. With 8-Lines Independent Ink Supply

System and variable droplet technology, ALPHA printer can realize high speed printing with double 4-color and high

quality output with 8-color printing.

Higher Precision and Mechanical Print Head Adjustment Free

-Automatic Take-up Device (Optional)

-Top-The-Line Standard Original THK Guiding Rail

-Three-Phase Heating for Eco Solvent Printing

-High Quality & Long Duration Motor

-8-Line Independent Ink Supply System

-Automatic Cutter

-Adjustable Print Head Height

-Double 4-Color High Speed Production

FEATURE

	Intelligent RIP Software ALPHA printer comes with the intuitive and highly productive RIP and design editor Photo Print , ONYX or Maintop RIP software, those RIP imports all popular file formats like Adobe Illustrator,PDF’s and JPEG´s.
	Three-Phase Heating for Eco Solvent Printing The three independent heating systems can assure the proper temperature of media to improve the image output, and the after heating can speed up the drying and boost the efficiency of taking up media.
	Advanced Electrical Control System Smart wide voltage ultra-integrated switch energy saving design, 100V240V adaptive wide voltage, ensure a long timestable operation of the machine.
	Flawless Print Quality Equipped with DX5 print head, using a unique and very efficient ” eclosion ” function and 7 variable droplet sizes. ALPHA printer can produce flawless high quality printouts on a variety of medias.
	Ink Dot Transformation Technology 3 kinds different sizes of the ink point realization of ink dot transformation technology
	Automatic Cutter With automatic cutter , you can cut your printed jobs easily
	Automatic Cleaning Function Ensure 24hour printing without worker handle.
	Speed Higher Than Single Head Printer With two DX5 print head , by coordinating with high quality printer structure, printing speed raising one times,real high speed 35m2/h(4 pass)

SPECIFICATIONS

Model		AJ-1600FP
Print Head		Single Head
Priting Technology		Piezoelectric Inkjet
Max Printing Width		1610mm
Ink Cartridge	Type	Sublimation ink
	Capacity	220ml/440ml Refill Cartridge
	Color	Double 4-Color (CMYK)
Ink Supply		Continuous Ink Supply Cartridge
Color Gamut Performance		1670 Million Color
Media Control		Automatic Feeding System and Sheet Cutter
Media Sensors		Paper Sensor & Width Sensor
Print Head Cleaning		Automatic Cleaning and manual cleaning
Programming Language		RD-RTL,RD-PJL
Interface		USB2.0/HIUSB
Power Requirement	During Operation	100V to 240V±10%,50/ 60 Hz
	Sleep Mode	100V to 240V±10%,50/ 60 Hz
Power-saving Function		Automatic Power Saving
Acousic Noise Leve	During Operation	≤65 dB (according to ISO 7779)
	During Standby	≤40 dB (according to ISO 7779)
Package Dimension (with stand)		25000mm(W)x1250mm(D)x1245mm(H) - 1.6M Printer
Weight(with stand)		350kg ( 1.6M )
Power Consumption		≤1500VA
Environment	Power On	Temperature: 20 to 32°C Humidity: 35 to 80%RH (non-condensing)
	Power Off	Temperature: 5 to 40°C Humidity: 20 to 80%RH (non-condensing)
Accessories		Power Cord, Drain Bottle, Manual

APPLICATION

FACTORY SHOW

OUR SERVICE

24-Hour Online Service

Pre-Sales Service After-Sales Service

*Inquiry and consulting support * Training how to install the machine and training use

*Sample testing support * Engineers availa to service machine overseas

* View our factory * One year warranty

PACKING & DELIVERY

	Packing
	Size	2500W)1250D)1245 H)
	Weight	350kg
	Details	on wooden
