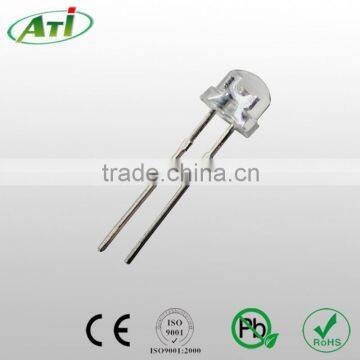

4.8mm straw hat led diode red
- Shanghai; Ningbo
- T/T D/P D/A Credit Card
You May Like
Product Details
| Model Number | ATI-5SCXHB-S | Chip Material | InGaN | |
| Emitting Color | Other, RED,GREEN,BLUE,YELLOW,WHITE | Luminous Flux(lm) | 3~11LM | |
| Optical Attenuation(%) | 0.05 | Power | Other | |
| Power Dissipation | 0.01 | Color Rendering Index(Ra) | 85 | |
| Color Temperature | 460~660nm | Operating Temperature(℃) | -35, 70 | |
| Storage Temperature(℃) | -40, 80 | Place of Origin | Jiangsu, China | |
| Brand Name | ATI |
Product Description
4.8mm straw hat led diode red—Our Products Stand out of Others
Over 12 years producing experience as the vendor of Samsung,Haier,LG etc.
Big scale of producing makes sure that your purchase cost is lower.
Advanced production line guarantees stable quality and long life span.
ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:
ITEM | COLOR | WAVELENGTH | VF | IF | IV |
5mm Strawhat LED | RED | 620~630NM | 1.8~2.3V | 20mA | 2000~3000mcd |
5mm Strawhat LED | GREEN | 520~525NM | 3.0~3.4V | 20mA | 5000~7000mcd |
5mm Strawhat LED | BLUE | 460~465NM | 3.0~3.4V | 20mA | 1800~2500mcd |
5mm Strawhat LED | YELLOW | 590~595NM | 1.9~2.4V | 20mA | 2500~3900mcd |
5mm Strawhat LED | ORANGE | 600~605NM | 1.8~2.4V | 20mA | 2500~3900mcd |
| 5mm Strawhat LED | WARM WHITE | 2700~3000K | 3.0~3.4V | 20mA | 7~9LM |
| 5mm Strawhat LED | NETURAL WHITE | 4000~4500K | 3.0~3.4V | 20mA | 8~10LM |
| 5mm Straw hat LED | PURE WHITE | 6000~6500K | 3.0~3.4V | 20mA | 8-10LM |
Product Exhibition—Show the Details for You
Lens Color Choices for DIP LEDs
Perfect Product Package—We Care about Your Goods and You
High Level Production Line
We are approved
More Choices for Your Purchase
SMD LED: 0603SMD LED,1206SMD LED,0603 SMD LED,3014 SMD LED, 3020 SMD LED, 3528SMD LED, 2835 SMD LED, 5050 SMD, 5630 SMD LED,5730 SMD LED
High power LEDs: 1W/3W/5W/10W-500W high power led.
7 segment LED display: one to four digits LED display; LED dotmatrix and customerzied LED display
