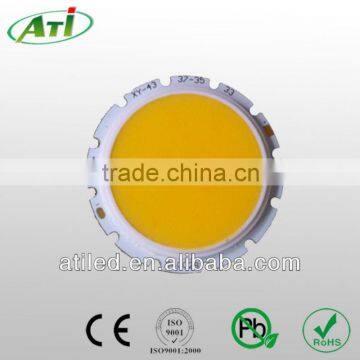

3W COB LED, white color COB LED, COB LED for spotlight
USD $0.5 - $2
/ Piece
1 Piece(Min.Order)
- 50000 Piece / Pieces per Month
- Shanghai; Ningbo
- T/T D/P D/A Credit Card
You May Like
-
COB LED manufacturer, 1W to 500W COB LED
-
high brightness cob led chip, 1W to 500W COB LED manufacturer
-
bright 10W round COB LED 3 years warranty
-
20W COB LED white color for lighting, ATI factory 3 years warranty
-
COB LED 10W white color for lighting, ATI factory 3 years warranty
-
10W Round COB LED white color for lighting, ATI factory 3 years warranty
Product Details
| Model Number | ATI-3WCOBLED-XY | Chip Material | InGaN | |
| Emitting Color | Natural White | Luminous Flux(lm) | 200LM | |
| Optical Attenuation(%) | 3% | Power | 3W | |
| Color Rendering Index(Ra) | 80 | Color Temperature | 6000~7000k | |
| Place of Origin | Jiangsu, China | Brand Name | ATI-3W COB LED | |
| Certification | CE |
Product Description
COB LED
3w COB LED parameters:
Parameter | Symbol | Conditions | Min. | Typ | Max | Units | Remark |
Luminous flux |
LM
| IF=300mA | 200 |
| 210 | lm | 4500-10000K |
190 |
| 200 | 3500-4500K | ||||
185 |
| 195 | 2700-3500K | ||||
Color Temperature | Tc | IF=300mA | 4500 | — | 10000 | K | Ra>75 |
3500 | — | 4500 | Ra>75 | ||||
2700 | — | 3500 | Ra>65 | ||||
Forward Voltage | VF | IF=300mA | 9.0 | — | 10.2 | V | — |
Thermal Resistance Junction To Board | RJ-B | IF=300mA | — | 10 | — | °C/W | — |
Reverse Current | IR | VR=5V | — | — | 10 | μA | — |
Viewing Angle | 2θ1/2 | IF=300mA | — | 120 | — | Deg | — |
COB LED Series ------------1W to 300W
COB LED Production Line----- Reliable quality assurance
COB Certifications ------ You choose five star company.
More information, You can easily contact us.
