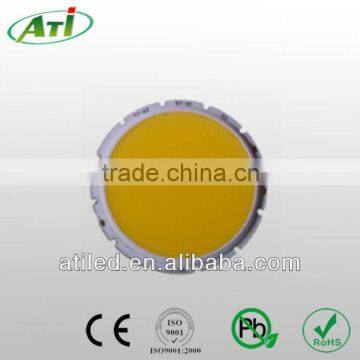

COB LED 20W, White Color COB LED, COB LED for Spotlight
US$ 0.5 - 2
/ Piece
1 Piece(Min. Order)
- Shanghai; Ningbo
- T/T D/P D/A Credit Card
You May Like
-
3W COB LED, White Color COB LED, COB LED for Spotlight
-
COB LED Manufacturer, 1W to 500W COB LED
-
High Brightness Cob Led Chip, 1W to 500W COB LED Manufacturer
-
Bright 10W Round COB LED 3 Years Warranty
-
20W COB LED White Color for Lighting, ATI Factory 3 Years Warranty
-
COB LED 10W White Color for Lighting, ATI Factory 3 Years Warranty
Product Details
| Model Number | ATI-20WCOBLED-XY | Chip Material | InGaN | |
| Emitting Color | Natural White | Luminous Intensity | 1330lm | |
| Luminous Flux(lm) | 1330lm | Optical Attenuation(%) | 3% | |
| Power | Other, 20W | Power Dissipation | 20 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | 6000~7000k | |
| Place of Origin | Jiangsu, China | Brand Name | ATI-COBLED20W | |
| Certification | CE |
Product Description
COB LED
20w COB LED parameters:
Parameter | Symbol | Conditions | Min. | Typ | Max | Units | Remark |
Luminous flux |
LM
| IF=300mA | 1250 |
| 1350 | lm | 4500-10000K |
1250 |
| 1300 | 3500-4500K | ||||
1200 |
| 1250 | 2700-3500K | ||||
Color Temperature | Tc | IF=300mA | 4500 | — | 10000 | K | Ra>75 |
3500 | — | 4500 | Ra>75 | ||||
2700 | — | 3500 | Ra>65 | ||||
Forward Voltage | VF | IF=300mA | 57 | — | 65 | V | — |
Thermal Resistance Junction To Board | RJ-B | IF=300mA | — | 10 | — | °C/W | — |
Reverse Current | IR | VR=5V | — | — | 10 | μA | — |
Viewing Angle | 2θ1/2 | IF=300mA | — | 120 | — | Deg | — |
COB LED Series ------------1W to 300W
COB LED Production Line----- Reliable quality assurance
COB Certifications ------ You choose five star company.
More information, You can easily contact us.
