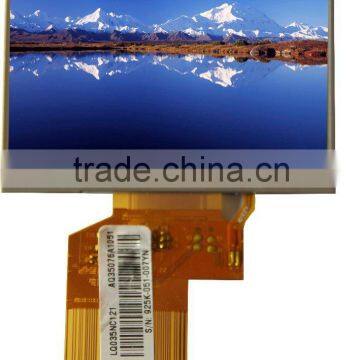

ZP35001

• Panel type: a-Si TFT LCD
• Panel size: 3.5 inches
• LCD digital: TFT digital
• Resolution: 320 (RGB) x 240
• Brightness: 330cd/m2 (min.)
• TFT outline dimensions: 76.90*63.90*3.20(T)mm (typical)
• Active area (H x V): 70.08 * 52.56 mm
• Viewing Direction: 12 O’clock
• Driver IC:HX8238-D
• Contrast ratio: 350:1 (typical)
• Interface:24 bit RGB
• Display mode: normally white
• Surface treatment: anti-glare
• Weight: TBD
• Operating temperatures: -20 to 70°C
• Storage temperatures: -30 to 80°C
• Viewing angle: 60/60/60/60° (type) (CRI: ≥10Ra)
• Backlight: single LED x6
• Compliant with RoHS Directive
• Image reversion: up/down and left/right
• With Resistive touch panel
• 54-pin interface

Applications:

• Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others

Packing term

Protect product with polyfoam and multi layer paper board.

Special protect carton for exporting product,

Per customer requirement.

Delivery term

For samples, we will finish production and ship within 7~15 working days. We usually arrange DHL, UPS, FedEX express to ship samples.

•  Segment LCD displays, character LCD modules, graphic LCD modules and TFT-LCD modules are available
• Custom designs for COB, COG, COF, TAB LCD modules are highly welcomed
• TFT-LCD size: 1.44", 1.54", 2.0", 2.4", 2.8", 3.0", 3.2", 3.5", 4.0", 4.3", 5.0”, 7.0", 8.0", 10.1", 10.4" and 12.1"
• Custom resistive and capacitive touch panels as well as backlights are also offered
• Our LCD products have been widely used for various applications such as digital products, POS machines, instruments and meters, automobile electronics, communication machines, medical machines, security machines, household electrical appliances and others
