metal water stop panel roll forming machine supplier in botou
- 20 Set / Sets per Month
- tianjin xingang
You May Like
-
water stop panel roll forming machine &bending plant
-
water stop panel roll forming machine made in China
-
water stop panel roll forming equipment
-
water stop plate for building roll forming machine price
-
water stop panel making making machine best design
-
metal water stop panel roll forming machine supplier
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Other, roof wall color steel roll forming machine | |
| Production Capacity | 20m/min | Place of Origin | Hebei, China | |
| Brand Name | CHBEST | Model Number | CHBest | |
| Power(W) | 5.5KW | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 6m*1.3m*1.2m | Weight | about 5T | |
| Certification | CE / BV / SGS | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
naked for 40 feet container
Product Description
metal water stop panel roll forming machine supplier in botou
Working flow:Decoiler-----feeding-----guiding----- leveling ------roll forming--------punching------ cutting----output table
Machine components
No. | Name | Qty |

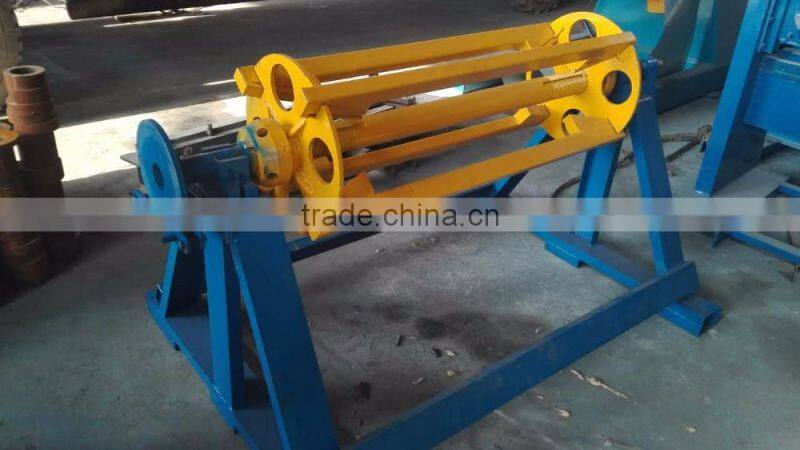

1. | De-coiler | 1 Set |
2. | Roll Forming Machine | 1 Set |
3. | Hydraulic Cutting Device | 1 Set |
4. | PLC Control Box | 1 Set |
5. | Output table | 1 Set |
Technical description
Material thickness | 0.8-2.0mm |
Diameter of shaft(solid shaft) | 70mm |
Roller | 7 steps |
Material of shaft (solid shaft) | (high grade) 45# Steel, quenching and tempering treatment |
Material of roller | 45# steel polished and coated with chrome HRC55-60° |
Reducer | 8# cycloid reducer (high grade) |
Power of main motor | 3KW |
Cutting | hydraulic cutting after roll forming |
Hydraulic power | 5.5kw |
Driven | 1 inch chain |
Voltage | 380V/50Hz/3phase |
Control system | PLC Frequency Control System with touch screen |
We produce machines according to your different profile drawings:
Guarantee period: one year free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
We do you care:
WHY CHOOES CHBEST COMPANY
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
Hope we could establish win-win business relations in the soon future!
Company Profile
Cangzhou Best machinery manufacturing Co., Ltd. is a professional manufacturer engaged in high quality cold roll forming machine, my professional engineer who engaged in cold roll forming machine design for more than 20 years, has a wealth of design concept Specialized in the production of C/Z/U purlin roll forming machine, deck floor roll forming machine, door series roll forming machine, cable tray roll forming machine, roof/wall panel roll forming machine, light steel roll forming machine, K-span roll forming machine, water channel roll forming machine, glazed tile/ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel production line, rack/fence roll forming machine ,slitting machine, bending and cutting machine, some auxiliary equipment. Our advantage: We can design and manufacture according to customer's special type machine or special drawing list. Ensure the best quality. We provide oversea after-sales service, dispatch our engineer to customer's factory for installation and training
