Tile Roll Forming Press Machine
- tianjin xingang
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Other, PPGI GI Steel metal | Use | Other, WALL sheet making machine | |
| Production Capacity | 8-20M/MIN | Place of Origin | Hebei, China | |
| Brand Name | CHBEST | Model Number | CHBest900 | |
| Power(W) | 3+3kw | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 6.5m*1.3m*1.2m | Weight | about 3T | |
| Certification | CE / BV / SGS | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |

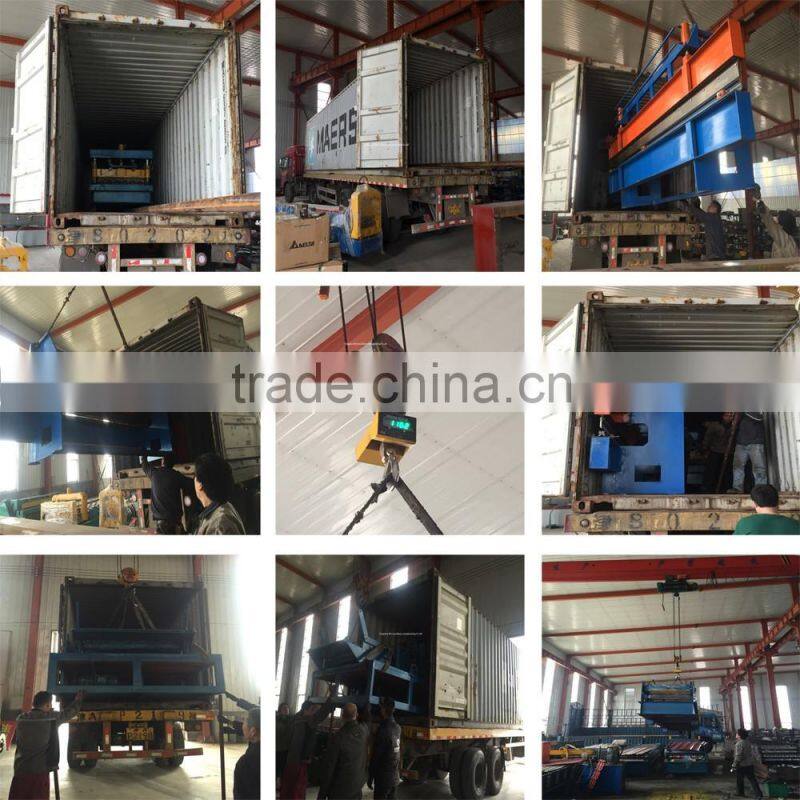

naked for 40 feet container
Product Description
Tile Roll Forming Press Machine

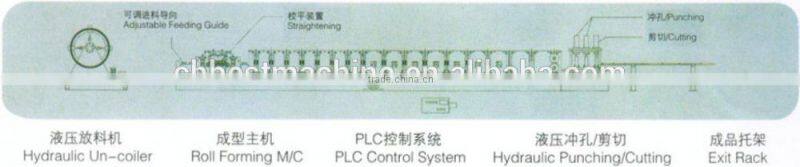

Working flow:
Decoiler------guiding------leveling------roll forming-------punching-----cut to length-----output table
Machine components:
No. | Name | Qty |
1. | De-coiler | 1 Set |
2. | Roll Forming Machine | 1 Set |
3. | Hydraulic Cutting Device | 1 Set |
4. | PLC Control Box | 1 Set |
5. | Output table | 1 Set |
Technical description:
Material thickness | 0.3-0.8mm |
Diameter of shaft(solid shaft) | 70mm |
Roller | 11steps |
Material of shaft (solid shaft) | (high grade) 45# Steel, quenching and tempering treatment |
Material of roller | 45# steel polished and coated with chrome HRC55-60° |
Reducer | 8# cycloid reducer (high grade) |
Power of main motor | 3KW |
Cutting | hydraulic cutting after roll forming |
Hydraulic power | 3kw |
Driven | 1 inch chain |
Voltage | 380V/50Hz/3phase |
Control system | PLC Frequency Control System with touch screen |

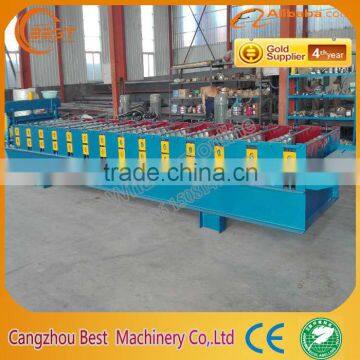

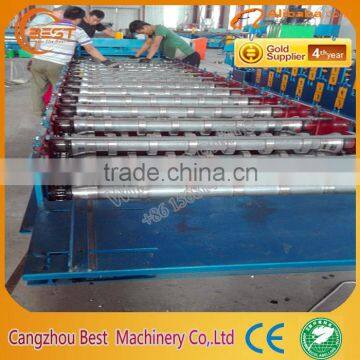

Detailed photos:
We do Best, About CHBEST factory
Cangzhou Best Machinery Co,.LTD produce all kinds of roll forming machines,We Choose the best material and components, and adopting Shanghai’s technology, with 20 year’s experience.
Now the machine working speed can reach 50m/min
Our main products: CZU purlin roll forming machine, deck floor roll forming machine,door series roll forming machine, cable tray roll forming machine, roof and wall roll forming machine, light steel roll forming machine, water channel roll forming machine, glazed tile /ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel roll forming line, rack and fence roll forming machine and auxiliary equipments.
We do exquisite:
Working flow:Decoiler-----feeding-----guiding----- leveling ------roll forming--------punching------ cutting----output table
Company Profile
Cangzhou Best machinery manufacturing Co., Ltd. is a professional manufacturer engaged in high quality cold roll forming machine, my professional engineer who engaged in cold roll forming machine design for more than 20 years, has a wealth of design concept Specialized in the production of C/Z/U purlin roll forming machine, deck floor roll forming machine, door series roll forming machine, cable tray roll forming machine, roof/wall panel roll forming machine, light steel roll forming machine, K-span roll forming machine, water channel roll forming machine, glazed tile/ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel production line, rack/fence roll forming machine ,slitting machine, bending and cutting machine, some auxiliary equipment. Our advantage: We can design and manufacture according to customer's special type machine or special drawing list. Ensure the best quality. We provide oversea after-sales service, dispatch our engineer to customer's factory for installation and training
