Flooring Tile Making Machine Price
- tianjin xingang
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Floor | |
| Production Capacity | 50M/MIN | Place of Origin | Hebei, China | |
| Brand Name | CHBEST | Model Number | Floor deck machine | |
| Power(W) | 5.5KW | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 5m*1.3m*1.3m-15m*1.3m*1.4m | Weight | 3.2T | |
| Certification | SGS | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
naked for 40 feet container
Product Description
Floor Tile Making Cutting Machinery
We do Best, About CHBEST factory
Cangzhou Best Machinery Co,.LTD produce the best quality and international standard color steel forming machine and speical cold roll forming machine.
We Choose the best material and components, and adopting Shanghai’s technology, with 20 year’s experience.
Our main products: CZU purlin roll forming machine, deck floor roll forming machine,door series roll forming machine, cable tray roll forming machine, roof and wall roll forming machine, light steel roll forming machine, water channel roll forming machine, glazed tile /ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel roll forming line, rack and fence roll forming machine and auxiliary equipments.
Working flow:
Decoiler------guiding------leveling------roll forming-------punching-----cut to length-----output table
Machine components:
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
output table-----------------------1set
Techical description:
1)Decoiler

Inner diameter:≤508mm
Outer diameter:≤3000mm
2)Forming Device
1 | Material thickness | 0.5mm-1mm |

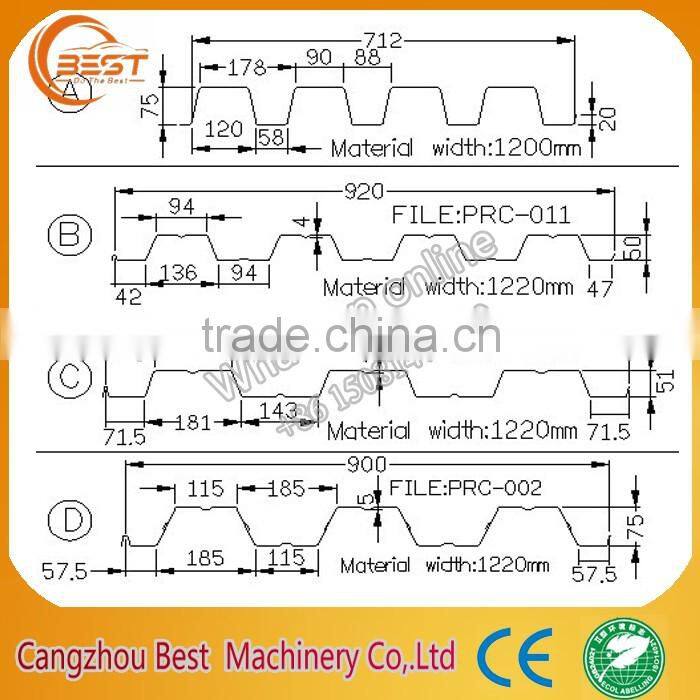

2 | Feeding width | 1000mm(acccodring profile drawing ) |
3 | Effective width | 688mm(acccodring profile drawing) |
4 | Forming Steps | 27steps |
5 | Line Speed | 8 to 12m/min(adjustable) |
6 | Stand | Independent stand structure (raft structure) |
7 | Drive | Independent motor and moved by chain |
8 | Material of Roller | 40Cr, HRC45-55 |
9 | Shaft Diameter | 80mm |
10 | Main Motor Power | About 18KW |
11 | Voltage | 380V/50HZ/Three Phase |
4) Hydraulic & Cutting

Hydraulic motor power: 7.5KW
Tolerance:±2mm
Valve: adopt Italy Atos
5)PLC Control system

Structure:MITSUBISHI PLC control, human and machine screen

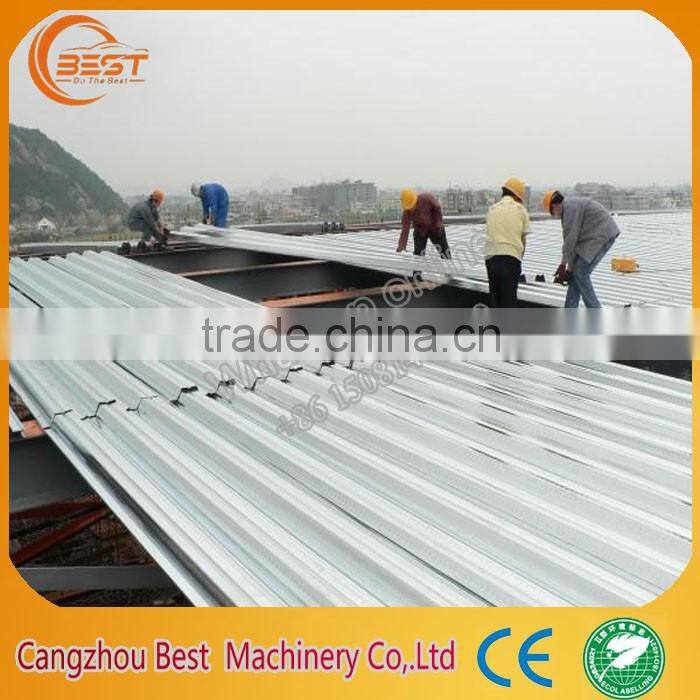

Marks: Main Application: floor decking
1.Professional technicians for loading to make sure machines load into container without any damage and all included.
2.Usually roll forming machine may need one 40GP to shipping.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you
Training
The buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary. Training time: one week (contains the time of installation and adjustment)
Payment Term
T/T :30% deposit by T/T in advance and 70% balance after inspection machine and confirmation before delivery.
After receiving down payment,arrange production.About 30-45 days for delivery.
Warranty: One year, provide technical guiding , production ,installation, debugging and maintenance service.
Quality Control: independent QC departments both in the company and factories which strictly control the quality of each process to enable production lines to reach Chinese National Standards, even International Standards.
Technology R&D: R&D centers and innovative designing teams for different kinds of production lines.
1.We are factory and Shanghai's technology ,offer best quality machines
2. Customers Design ,Size,Color&Logo are accepted.
3. With20 years professional manufacture experience
4. Prompt Delivery&Competitive Price
5. Main markets:Middle East, Europe, North America, Africa,Southeast Asia.
Contact me by WHAT'S APP:0086-15081471140 or send email to lily20130102 .Your satisfaction and recognition is the goal of our efforts!
Company Profile
Cangzhou Best machinery manufacturing Co., Ltd. is a professional manufacturer engaged in high quality cold roll forming machine, my professional engineer who engaged in cold roll forming machine design for more than 20 years, has a wealth of design concept Specialized in the production of C/Z/U purlin roll forming machine, deck floor roll forming machine, door series roll forming machine, cable tray roll forming machine, roof/wall panel roll forming machine, light steel roll forming machine, K-span roll forming machine, water channel roll forming machine, glazed tile/ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel production line, rack/fence roll forming machine ,slitting machine, bending and cutting machine, some auxiliary equipment. Our advantage: We can design and manufacture according to customer's special type machine or special drawing list. Ensure the best quality. We provide oversea after-sales service, dispatch our engineer to customer's factory for installation and training
