Best Highway Guardrail Roll Forming Machine
- Tianjin port
- T/T
You May Like
Product Details
| Condition | New | Type | Other, roll forming machine | |
| Tile Type | Glazed Steel | Use | Other, guardrail channel | |
| Production Capacity | 10-15m/min | Place of Origin | Hebei, China | |
| Brand Name | Best Machinery | Model Number | guardrail roll forming machine | |
| Power(W) | 32kw | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 13700*1550*1910mm | Weight | 16.5 TON | |
| Certification | CE/SGS, CE & ISO9001:2008/SGS | Warranty | 5 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Standard export packing : 1*40 GP container ; main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box
Product Description
High Speed Highway Guardril Roll Forming Machine
Features & Purposes:
This guard rail roll forming machine is comprised of mechanic decoiler, guiding and feeding equipment, leveling device, pre-punching hydraulic device, roll forming unit, post hydraulic mould cutting device, hydraulic station, PLC control system and unloading rack.
We can supply the machine producing two-wave guardrail and three-wave guardrail
Production processing :
Decoiling---flatting---feeding & punching---forming---cutting-to-length---collecting
Equipment struction introduction:
This production line may produce the cable tray, the different sizes through the replacement of punching moulds to complete.
Forming machine is combined and adjustable, one set of combined rollers complete all cable tray products, the change size through adjust
1 | Suitable material | galvanized steel sheet |
| 2 | Main motor power | 32 KW with Cycloidal reducer |
| 3 | Hydraulic station power | 22KW |
| 4 | Hydraulic oil | 46# |
| 6 | Thickness | 1.5mm~3.5mm |
| 7 | Diameter | Φ100mm |
| 8 | Electric tension | 380V 3phase 50HZ |
| 9 | Material of roller | High grade 45# forged steel |
| 10 | Rolling galvanization thickness | 0.05mm |
| 11 | Processing speed | 10-15m/min |
| 12 | Processing precision within | 10m+/-1.00mm |
| 13 | Material of cutting blade | Cr12 quenched |
Guardril profiles:

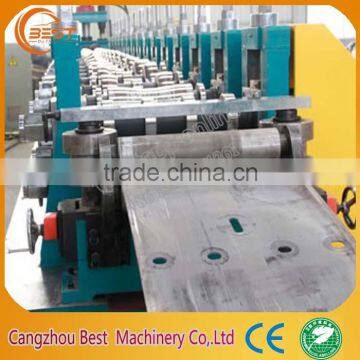

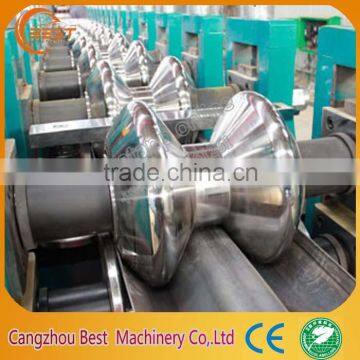

Heavy guardrail roll forming machine parts:
Guardrail used sample :
Highway Guardrail Roll Forming Machine
Highway Guardrail Roll Forming Machine - China TOP
W beam roll forming machine
Highway Guardrail Roll Forming Line
Guard Rail Forming Machine
Best Guardrail Roll Forming Machine for sales
PLC Control Carbon Steel Guardrail Roll Forming Machine
Highway Guardrail Making Machine
Carell guard rails roll forming machine
My workshop and loading for customer
1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the doposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
If any questions,you can call me mobile phone at any times:0086-13091161261
3:If you want to get more pictures or videos of the machines,I can send them to you by Email or SKype.
we are capable of designing machine totally as your panel sample and profile drawing
please no hesitate to contact us.
warmly welcome to visit our factory and order machine, we promise to provide you machine with best quality!
Contact: 0086-13091161261
Company Profile
Cangzhou Best machinery manufacturing Co., Ltd. is a professional manufacturer engaged in high quality cold roll forming machine, my professional engineer who engaged in cold roll forming machine design for more than 20 years, has a wealth of design concept Specialized in the production of C/Z/U purlin roll forming machine, deck floor roll forming machine, door series roll forming machine, cable tray roll forming machine, roof/wall panel roll forming machine, light steel roll forming machine, K-span roll forming machine, water channel roll forming machine, glazed tile/ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel production line, rack/fence roll forming machine ,slitting machine, bending and cutting machine, some auxiliary equipment. Our advantage: We can design and manufacture according to customer's special type machine or special drawing list. Ensure the best quality. We provide oversea after-sales service, dispatch our engineer to customer's factory for installation and training
