China Guardrail Machinethree Wave Guardrail Rolling Forming Machinery Price
- Tianjin xingang
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Other, Guardrail | |
| Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
| Brand Name | CHBEST | Model Number | CHBEST-AP-1 | |
| Power(W) | 22KW | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 12*1.6*1.5M | Weight | 15T | |
| Certification | SGS | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |

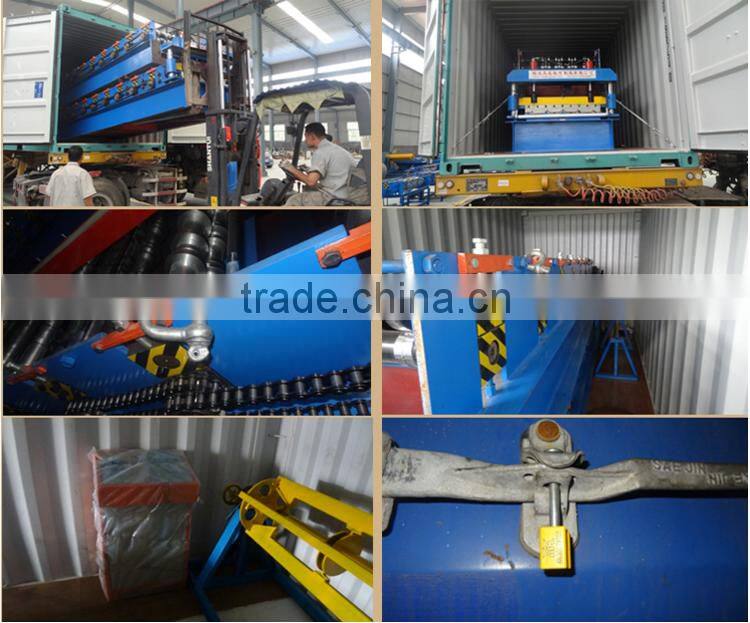

naked for 40 feet container
Product Description

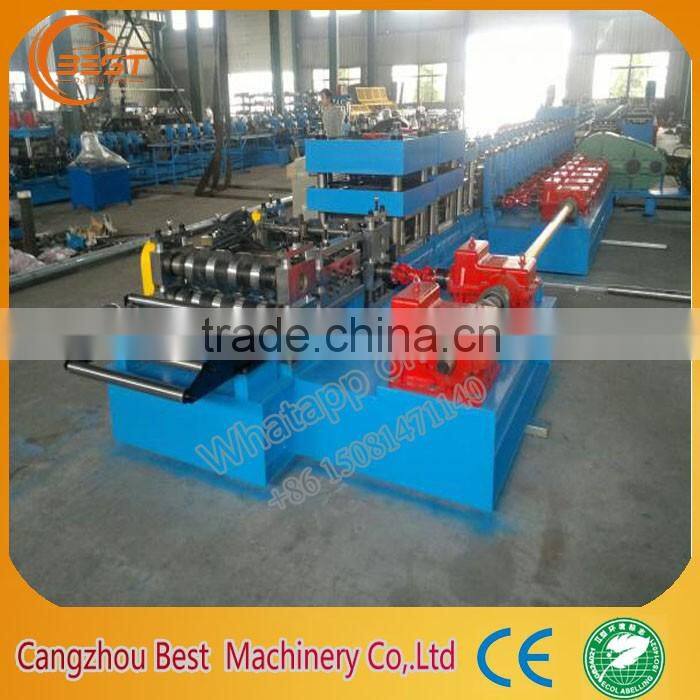

China Guardrail Machinethree Wave Guardrail Rolling Forming Machinery Price
Working flow:
Decoiler------guiding------leveling-----punching--------roll forming-----cut to length-----output table
Machine components:
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
output table-----------------------1set
Techical description:

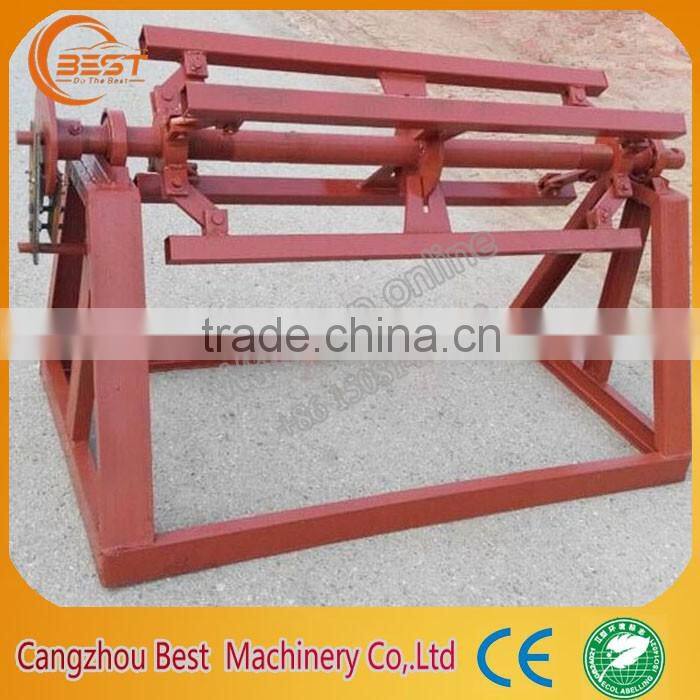

1)Decoiler
Weight capacity of decoiler : 5.0T
Inner diameter:≤508mm
Outer diameter:≤3000mm
2)leveling device

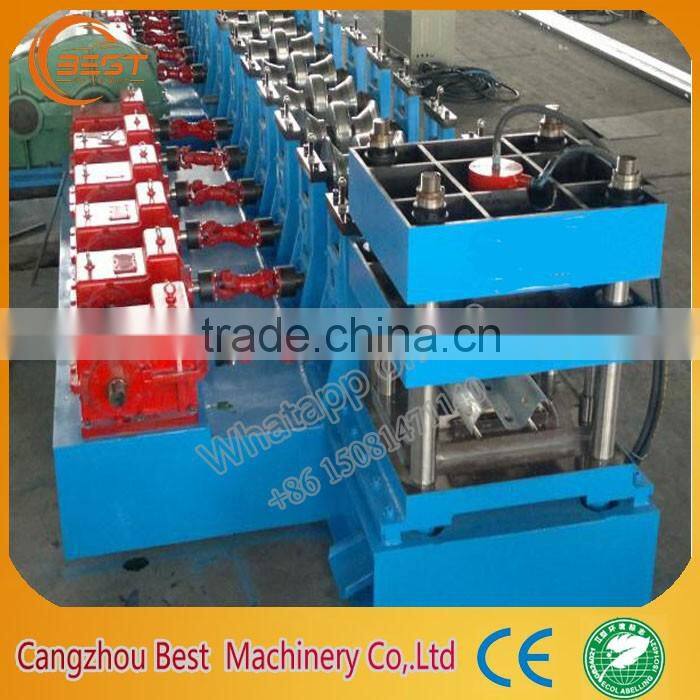

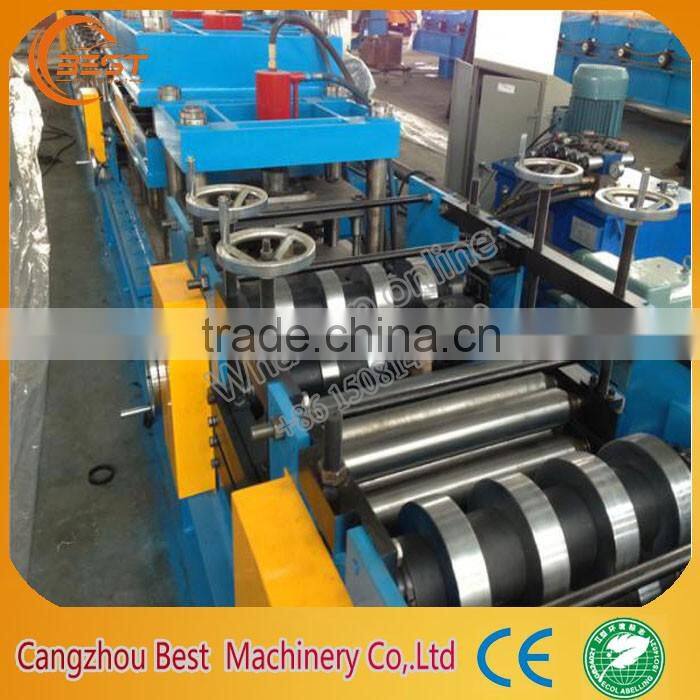

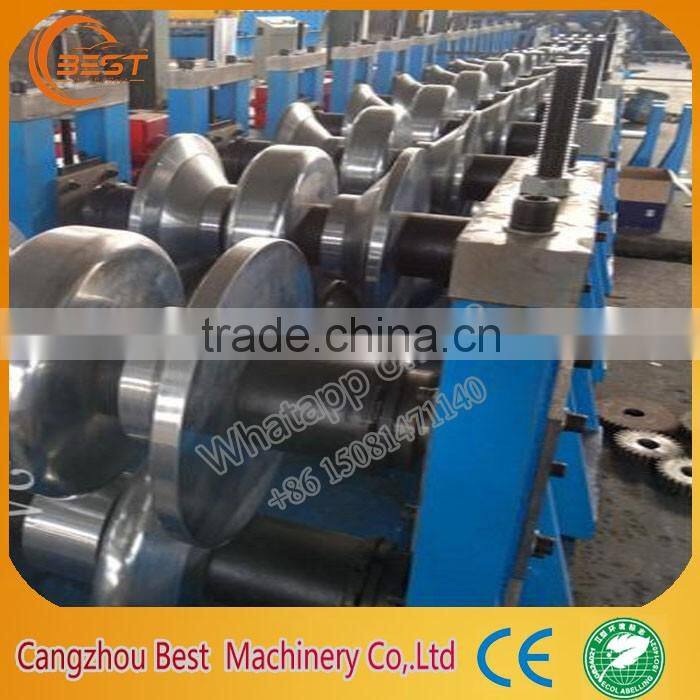

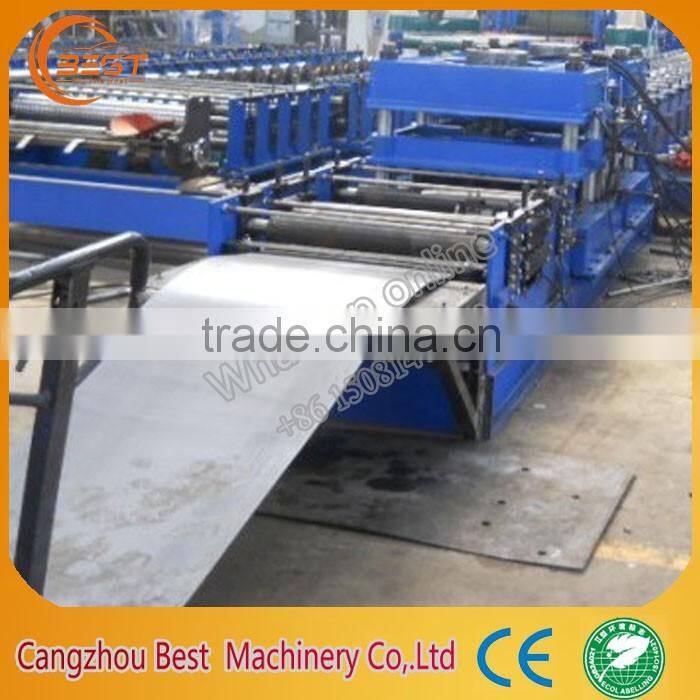

3)Forming Device
1 | Material thickness | 1-4mm |

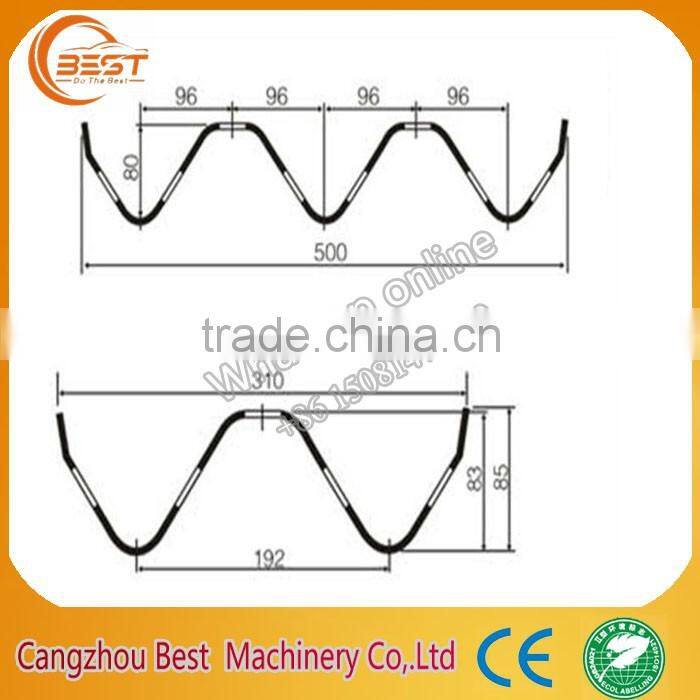

2 | Feeding width | 500mm(acccodring profile drawing ) |
3 | Effective width | 310mm(acccodring profile drawing) |
4 | Forming Steps | 18steps |
5 | Line Speed | 8 to 12m/min(adjustable) |
6 | Stand | Independent stand structure (raft structure) |

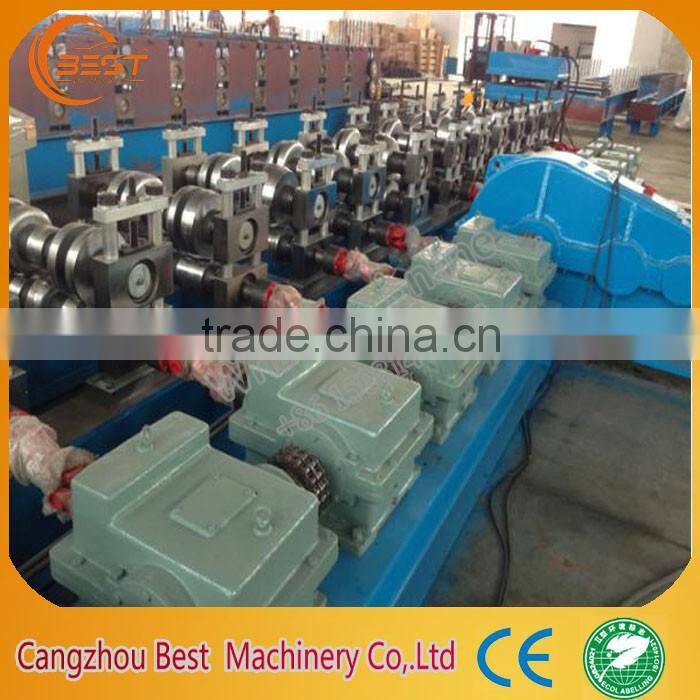

7 | Drive | Independent motor and moved by gear box |
8 | Material of Roller | 40Cr, HRC45-55 |
9 | Shaft Diameter | 80mm |
10 | Main Motor Power | About 22KW |
11 | Voltage | 380V/50HZ/Three Phase |

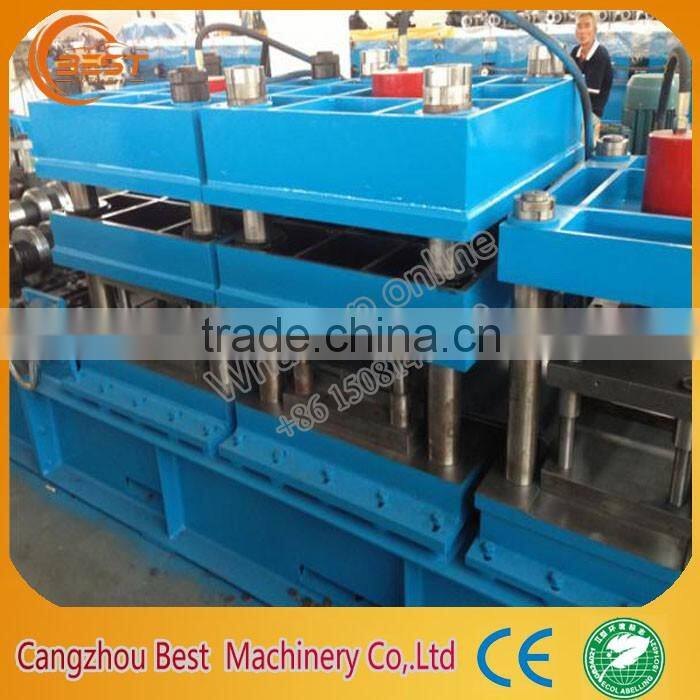

4) Hydraulic & Cutting
Cutting material: Cr12 ,HRC58-62
Hydraulic motor power: 18.5KW
Tolerance:±2mm
Valve: adopt Italy Atos

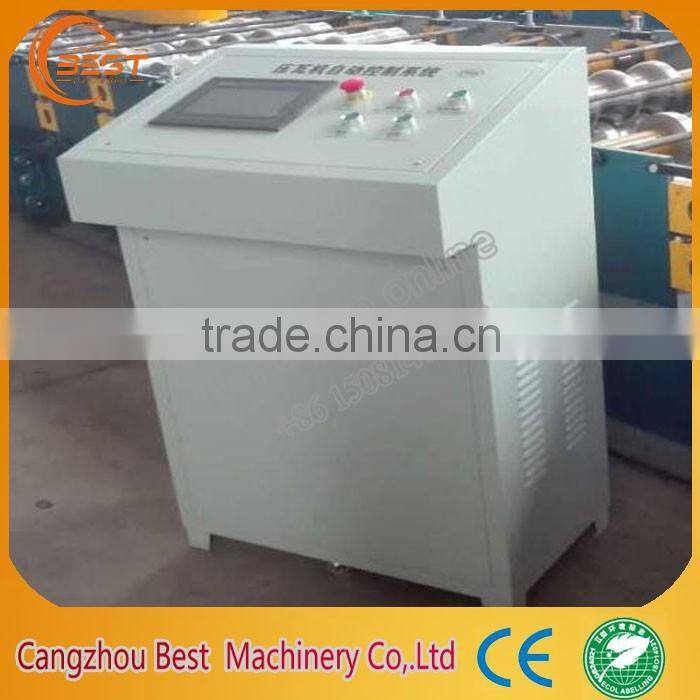

5)PLC Control system
Function:control the whole line manually and automatically
Structure:MITSUBISHI PLC control, human and machine screen
Marks: Main Application: floor decking
1.show how to use the machine face to face
2.The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 for engineer.
3.During this guarantee period, spare parts are supplied for free except for damage by human being. If the malfunctions are caused by stuff incorrect operations, spare parts supplied at cost price.
4.We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
Contact me by WHAT'S APP:0086-15081471140 or send email to lily20130102 .Your satisfaction and recognition is the goal of our efforts!
Company Profile
Cangzhou Best machinery manufacturing Co., Ltd. is a professional manufacturer engaged in high quality cold roll forming machine, my professional engineer who engaged in cold roll forming machine design for more than 20 years, has a wealth of design concept Specialized in the production of C/Z/U purlin roll forming machine, deck floor roll forming machine, door series roll forming machine, cable tray roll forming machine, roof/wall panel roll forming machine, light steel roll forming machine, K-span roll forming machine, water channel roll forming machine, glazed tile/ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel production line, rack/fence roll forming machine ,slitting machine, bending and cutting machine, some auxiliary equipment. Our advantage: We can design and manufacture according to customer's special type machine or special drawing list. Ensure the best quality. We provide oversea after-sales service, dispatch our engineer to customer's factory for installation and training
