Cable Tray C Roll Forming Machine C Frame Machine

Mild Steel And Galvanized Strip Coil Cable Tray Roll Forming Machine With 10-15m/min

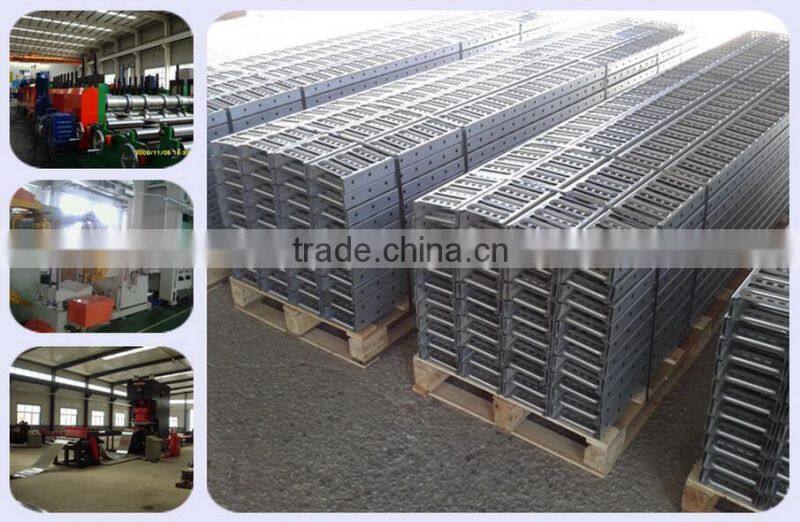

Cable tray roll forming machine (also called cable ladder roll forming machine ) is capable of making different sizes of cable trays through replacing punching moulds. The cable trays produced by this roll forming machine production line are extensively used in factories and other buildings .Because of their accurate robustness .Cable tray roll forming machine consists of decoiler(uncoiler),leaving machine(flattener),servo feeding device ,punching system ,front cutting device ,guiding device,roll former,rear straightening device and run-out table .

With full and special experience ,we can customize cable tray roll forming machines or cable tray roll forming production lines according to customers”profile drawings and specifications.


1.Thickness of material :1-2.5mm

2.Forming speed:10-15m/min

3.Total power:15KW

4.Driven type:by Gear

5.Control system:PLC control

6.De-coiler type:Automactic

7.Hydraulic cutting system is controlled by computer

8.The machine will be operated by the auto PLC controlling system, which makes the operation more convenience to be controlled.

9.The profile will be pre-punched then be roll formed, that’s the big different with the traditional production ,which is faster and more safety than the traditional one.

10.Producing different specification can be finished by changing the die, and the bending machine

Main Features

1.Our company adopt advanced roll forming processing technology that roll forming after the preliminary punching to improve production speed .

2.The whole line adopting full auto PLC controlling system ,making the operation more convenience.

3.Producing different specification can be finished by changing the die, and the bending machine

Full automatic change size (1minutes)

Hihg pseed runnun:10-15m/min

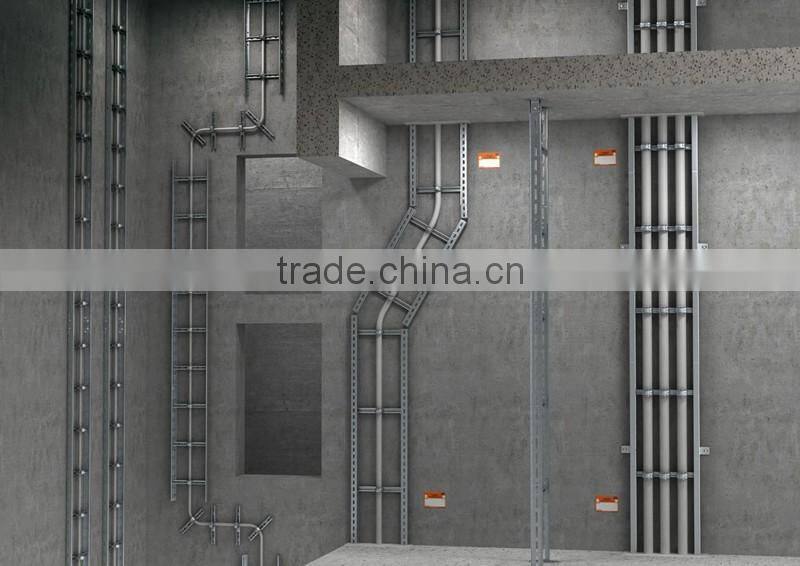

Perforated Cable Tray

Ladder type cable tray(Normal standard,&Nema standard 16A,20B,20C)

Gird type cable tray/wire mesh cable tray

Channel type cable tray/ GI cable trunking

Used for any new building
