Home > Products > XFP Transceiver > XFP 10G 1550nm 100km

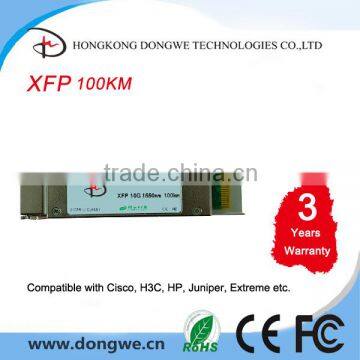

XFP 10G 1550nm 100km
- 100000 Piece / Pieces per Month
- Shenzhen Shanghai Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | DONGWE | Model Number | DW-D9655-100CX |
Product Description
XFP 10G 1550nm 100km
Features
- XFP MSA Rev 4.5 Compliant
- Data rate from 9.95Gbps to 11.3Gbps
- No Reference Clock required
- Cooled 1550 nm EML and APD receiver
- link length up to 100km
- +1.8V,+3.3V,+5V Supply Voltage
- Low Power Dissipation 2W Maximum
- XFI and lineside loopback Mode Supported
- -5ºC to 70ºC Operating Case Temperature
- -40ºC to 85ºC Industrial Temperature
- Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power
- RoHS6 compliant (lead free)
Applications
¨ SONET OC-192&SDH STM 64 (with/with out FEC)
¨ 10GBASE ZR/ZW (with/with out FEC)
¨ 10G Fiber Channel
Detail Description
DONGWE 100km XFP Transceiver exhibits excellent wavelength stability, Designed for 10G SDH/SONET, 10GBASE-ZR and 10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. DONGWE XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
| Part Number | Product Description |
| DW-D9685-03CX | XFP, 10G, 850nm, 300m, 0ºC ~ +70ºC, with DDM/DOM |
| DW-D9631-02CX | XFP, 10G, 1310nm, 2km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-D9631-10CX | XFP, 10G, 1310nm, 10km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-D9655-40CX | XFP, 10G, 1550nm, 40km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-D9655-80CX | XFP, 10G, 1550nm, 80km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-D9655-100CX | XFP, 10G, 1550nm, 100km, 0ºC ~ +70ºC, with DDM/DOM |
| BIDI XFP | |
| DW-S9623-10CX | BIDI XFP, 10G, 1270TX/1330RX, 10km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9632-10CX | BIDI XFP, 10G, 1330TX/1270RX, 10km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9623-20CX | BIDI XFP, 10G, 1270TX/1330RX, 20km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9632-20CX | BIDI XFP, 10G, 1330TX/1270RX, 20km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9623-40CX | BIDI XFP, 10G, 1270TX/1330RX, 40km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9632-40CX | BIDI XFP, 10G, 1330TX/1270RX, 40km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9623-60CX | BIDI XFP, 10G, 1270TX/1330RX, 60km, 0ºC ~ +70ºC, with DDM/DOM |
| DW-S9632-60CX | BIDI XFP, 10G, 1330TX/1270RX, 60km, 0ºC ~ +70ºC, with DDM/DOM |
| CWDM XFP | |
DW-D96CXX-10CX (XX=27/29/31/33) | CWDM XFP, 10G, 1270~1330nm, 10km, 0ºC ~ +70ºC, with DDM/DOM |
DW-D96CXX-40CX (XX=47~61) | CWDM XFP, 10G, 1470~1610nm, 40km, 0ºC ~ +70ºC, with DDM/DOM |
DW-D96CXX-80CX (XX=47~61) | CWDM XFP, 10G, 1470~1610nm, 80km, -5ºC ~ +70ºC, with DDM/DOM |
| DWDM XFP | |
DW-D96DXX-40CX (XX=17~61) |
DWDM XFP, 10G, 1528.77~1563.86nm, 40km, -5ºC ~ +70ºC, with DDM/DOM |
| |
DW-D96DXX-80CX (XX=17~61) | DWDM XFP, 10G, 1528.77~1563.86nm, 80km, -5ºC ~ +70ºC, with DDM/DOM |
DW-D96DXX-12CX (XX=17~61) | DWDM XFP, 10G, 1528.77~1563.86nm, 120km, -5ºC ~ +70ºC, with DDM/DOM |
