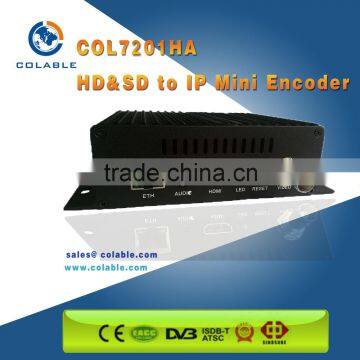

Model: COL7201HA  Single h.265 iptv stream encoder

( integrated h.265 /h.264)

Outline

COL-7201HA Mini H.265/H.264 IPTV encoder is most competitive cost and easy-to-use video streaming appliance designed for professional video producers. The product support 1 channel HDMI & AV generating dual stream of h.264/H.265 encoding output and the AAC,Mp3 audio format. From any HDMI &AV input source such as a camera or switcher or DVD, it generates an H.264/H.265-encoded stream compliant with RTSP, HTTP, UDP and RTMP protocols. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

Features

1. 1 channel HDMI &AV input,
2. Up to 720P, 1080P HD video input
3. Support non-video encoding
4. Support OSD rolling and logo inserting
5. System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN764, LINUX
6. Support MP3 and AAC audio format selection
7. Encoding specification: BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
8. Support a click to restore the default configuration
9. Support STB decoding
10. Support Main TS stream and the sub TS stream can use different network protocols for transmission (Multi-rate multi-protocol support)
11. Support multiple devices display at the same time on a computer
12. Support network directly connected, don’t need match HD collection card.
13. Providing RTSP/RTP/HTTP/RTMP/UDP protocol
14. Support H.264 Main Profile/H.264 High Profile and AAC audio.
15. Web control interface
16. Comply with CBR/VBR 16KBIT/S~12MBIT/S standard
17. Power less than 24W, low power watts designing.
18. Support Network interface full-duplex mode 1000M

Technical Specification

Application:

• IPTV digital headend
• Point to Point system
• Internet conferencing system video capture
• Hospital, Bank, transport agency system
