Home > Products > SFP Transceiver > GLC-FE-100BX-u 155M 1310/1490 20km, BiDi SC Connector SFP Module Transceiver

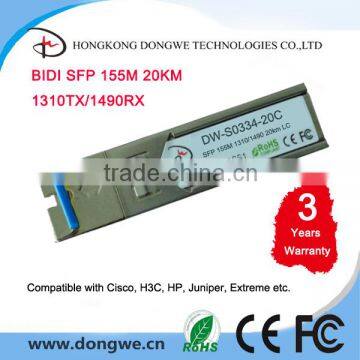

GLC-FE-100BX-u 155M 1310/1490 20km, BiDi SC Connector SFP Module Transceiver
- Shenzhen Shanghai Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
GLC-FE-100BX-u, Fiber Optic, 100Base-BX10-u 1310TX 1490RX 40km, BiDi SFP Module Transceiver
-
GLC-FE-100BX-D, 100Base-BX10-D SFP 1550TX/1490RX--80km, DDM, BiDi SFP Module/Transceiver
-
GLC-BX-U, BIDI SFP, 1.25G, 1310TX/1550RX, 20km, Optic Module/Transceiver, Compatible with Cisco, H3C, Juniper...
-
GLC-FE-100BX-D, 100Base-BX10-D SFP 1550TX/1310RX--20km, with DDM, BiDi SFP Module/Transceiver
-
GLC-FE-100BX-u, 100Base-BX10-u SFP Optical Transceiver, 1310TX 1490RX 20km, DDM, BiDi SFP Module Transceiver
-
GLC-BX-D, BIDI SFP, 1.25G, 1550TX/1310RX, 20km, Optic Module/Transceiver, Compatible with Cisco, H3C, Juniper...
Product Details
| Brand Name | DONGWE | Model Number | DW-S0334-20C |
Product Description
GLC-FE-100BX-u 155M 1310/1490 20km, BiDi SC Connector SFP Module Transceiver
Features
¨ Up to 155Mbps data-rate
¨ 1310nm FP laser and PIN photodetector for 20km transmission
¨ Compliant with SFP MSA and SFF-8472 with simplex LC or SC receptacle
¨ Digital Diagnostic Monitoring: Internal Calibrationor External Calibration
¨ Compatible with RoHS
¨ +3.3V single power supply
¨ Operating case temperature range of 0°C to +70°C (Commercial) or -40°C to +85°C (Industrial)
Applications
¨ SDH STM-1, S-1.1,L-1.1, L-1.2
¨ SONET OC-3 IR1,LR1,LR2
¨ Other optical links
Detail Description
The SFP-BIDI transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
| Part Number | Product Description |
| DW-S0334-20C | BIDI SFP 155M 1310TX/1490RX 20km LC 0ºC ~ +70ºC |
| DW-S0343-20C | BIDI SFP 155M 1490TX/1310RX 20km LC 0ºC ~ +70ºC |
| DW-S0334-20CD | BIDI SFP 155M 1310TX/1490RX 20km LC 0ºC ~ +70ºC with DDM/DOM |
| DW-S0343-20CD | BIDI SFP 155M 1490TX/1310RX 20km LC 0ºC ~ +70ºC with DDM/DOM |
| DW-S0334-20T | BIDI SFP 155M 1310TX/1490RX 20km LC -40ºC ~ +85ºC |
| DW-S0343-20T | BIDI SFP 155M 1490TX/1310RX 20km LC -40ºC ~ +85ºC |
| DW-S0334-20TD | BIDI SFP 155M 1310TX/1490RX 20km LC -40ºC ~ +85ºC with DDM/DOM |
| DW-S0343-20TD | BIDI SFP 155M 1490TX/1310RX 20km LC -40ºC ~ +85ºC with DDM/DOM |
Shipment:
International Express: DHL, FedEx, UPS, TNT and EMS optional
1. Competitive price
