DTV Headend 8 ASI / Tuner to IP Gateway for DVB System COL5781S

COL5781S DTV Headend 8 ASI / Tuner to IP Gateway for DVB system

Outline

COL5781S 8ASI (Tuner ) to IP Gateway is a head-end interface conversion device which is used for DVB,

ASI and Ethernet. It supports SPTSx32 output. It is also integrated with demodulation and gateway function,

which can demodulate the signal from 8 ASI ( tuner) into TS. After multiplexing the TS, then packet the TS

into IP package and output the IP package through Different IP address and ports. It supports IP output

(UDP protocol).

Features

• Integrated with demodulation and gateway function
• Support 8 channels  ASI ( tuner) input and SPTSx32 output.
• Support MPEG-2 and MPEG-4 TS to IP one way conversion
• 1 GE output(support parallel 1 Gbps data output channel)
• Support maximum 8 tuner to IP converting channel, the maximum output bit-rate is 800Mbps
• Support IP output, UDP protocol, unicast and multicast
• Support LCD display and keyboard
• Support SNMP operation

Specifications

Our advantages

 Products Qulity: Most of our products get CE approved:set top box have report from State

 Administration for Entry Exit Inspection and Quarantine.

 Technical Support: Our R&D department is composed br the most experienced engineer with

 young university graduate,bring new energy continuously. Customers will be informed at first

 time as long as our software upgrade or new management software version come out .

 Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit.

 Usually we use the speediest DHL/UPS/Fedex for small order delivery,and we have  long

 erm cooperated carriers for common air & sea delivery with cheap price and high speed.

 Guarantee:All products will have life-long skill support ,head ends for free repair within 3 years.

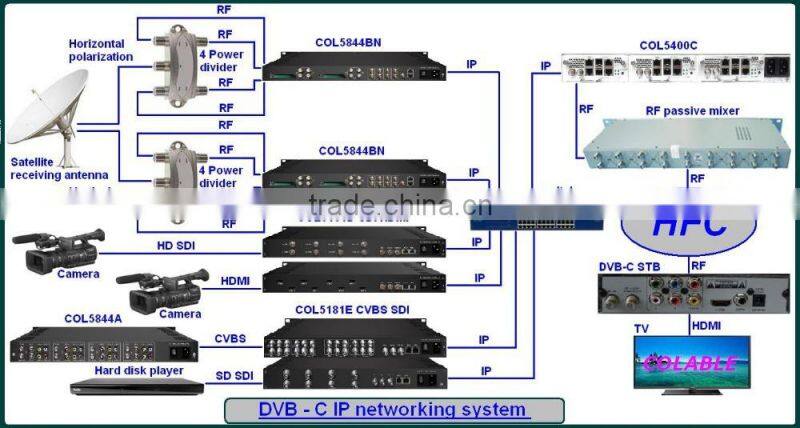

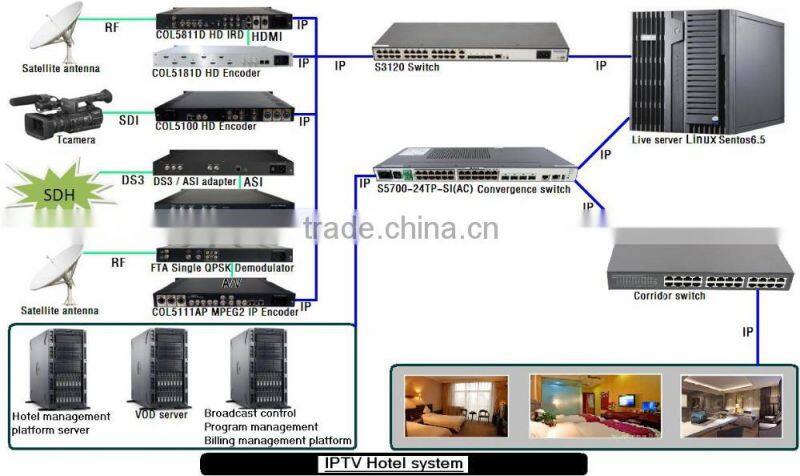

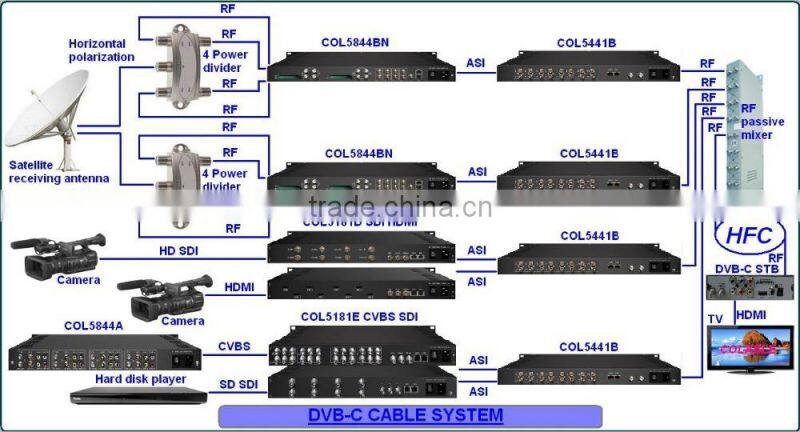

Some pictures for reference
