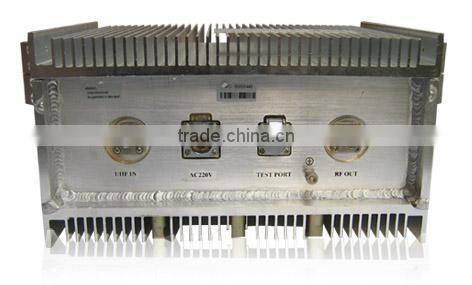

Indoor MMDS Transmitter for Mmds System
- Chengdu
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
DVB Digital Broadband MMDS Transmitter 5W-400W Indoor/outdoor Customized
-
QPSK System Digital MMDS Transmitter
-
Professional Digital MMDS Amplifer and Transmitter 5W-400W Indoor/outdoor Customized COL-MT100
-
Digital MMDS Broadband Transmitter (indoor/outdoor Model)
-
200W MMDS Indoor Digital Transmitter
-
MMDS Wireless Digital TV Transmitter
Product Details
| Place of Origin | Sichuan, China | Brand Name | Colable | |
| Model Number | COL-MT100 |
Product Description
Long Distance Transmitter Wireless MMDS Transmitter
Skype: yangting965
Outline
This manual introduces the main technical specifications, structure and electric connecting features of digital MMDS transmitter. Please check the equipment cell amounts and the status under the steps after careful reading, connect the equipment according to the demand and be sure to input the electric level, then finish the connection and use of equipment and system.
Features
ü The design of module groups is convenient to maintain the equipment.
ü Low phase noise
ü Compatible with analogue and digital signals transmission.
Specifications
Working frequency: | 2500 – 2700MHz |
The output power on the point of 1dB | P1dB :50dBm |
L.O.: | 2033MHz |
AGC range: | ±8dB |
Pre-attenuation: | 7dB |
Input level: | 85dBuv/CH |
The digital output power: | 43dBm |
Interfaces: | RF IN — FL10-75K RF OUT — N-50K TEST PORT — AK16-7 |
Power supply: | AC220V |
The total power loss | 450W |
The total weight: | 65Kg |
Specification can be changed according to clients’ requirement | |
Application
- MMDS digital TV head end
- Satellite digital TV broadcasting
- Terrestrial digital TV
- Image Supervise
- Video-On-Demand (VOD) Long-distance teaching
- Video Conference
