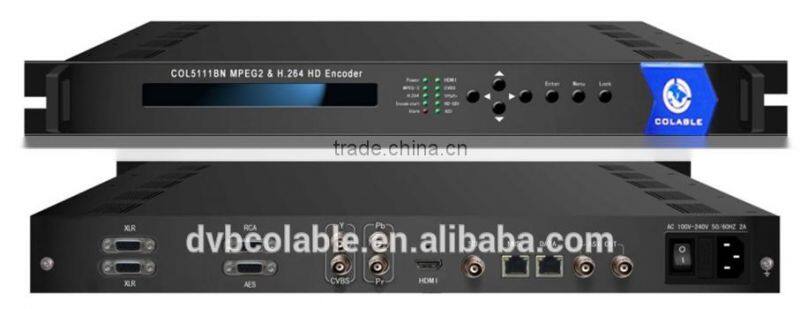

MPEG2/H.264 HD AC3 Encoder Single Channel COL5111BN

MPEG2/H.264 HD AC3 Encoder single channel COL5111BN

Outline

COL5111BN MPEG-2/H.264 HD Encoder is the new broadcasting audio & video encoding device with powerful functionality. It is equipped with multiple video input interfaces (SDI, CVBS, YPbPr and HDMI) and audio input interfaces (AES, RCA and XLR) to make it possible to compatible with different signal sources.

Multiple audio and video encoding formats are available to meet customers’ various requirements. It supports 4 stereo (8 mono) or one DD 5.1 (AC3) audios embedded to mix with the video to form a stream output. The encoded program will finally output in TS through ASI/IP port..

Features

• MPEG-2 HD/SD and MPEG-4 AVC/H.264 HD/SD video encoding

• Support 1080I,720P, 480I, 576I video resolution and downscale transform

• Support low latency

• MPEG1 Layer II, HE-AAC (v1&v2), LC-AAC and DD AC3 (2.0/5.1) audio encoding

• Support DD AC3 audio passthrough (for SDI in only)

• Support 4 stereo or 8 mono audio encoding

• Support video buffer, free to switch video sources (all video interface available)

• Support CC (closed caption), EIA 608 and EIA 708 (for CVBS and SDI in)

• Support ASI output and IP over UDP output

• LCD / keyboard control and web management

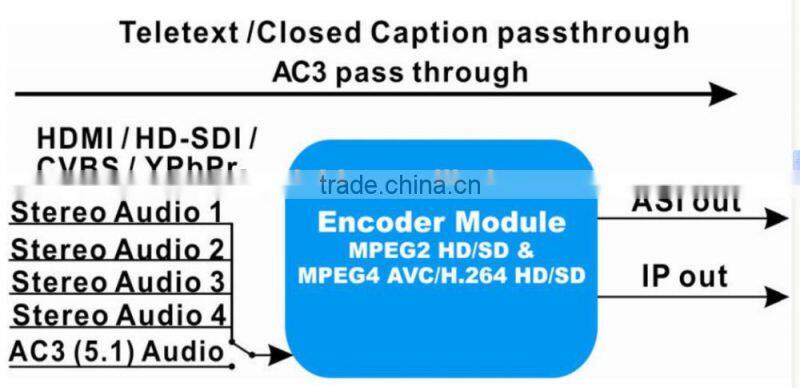

Inner Principle

Specifications

 Application system:

-DVB-C cable tv system:

-DVB-C IP networking system:

-Terrestrial Broadcasting system:

We Colable Electronics co.,ltd

specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

• Our experience: Continuous experienced and reliable Team ,  Standing in DVB Head-end system solution more than 10 years.

• Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler,  Modulator, Transmitter,Antenna,Set top box.


• Our service: Life-long Technical support.


• Warranty: 1 years.


• Lead time: 2-5 working days
